Šifra 624783
LKR-POTH 75G

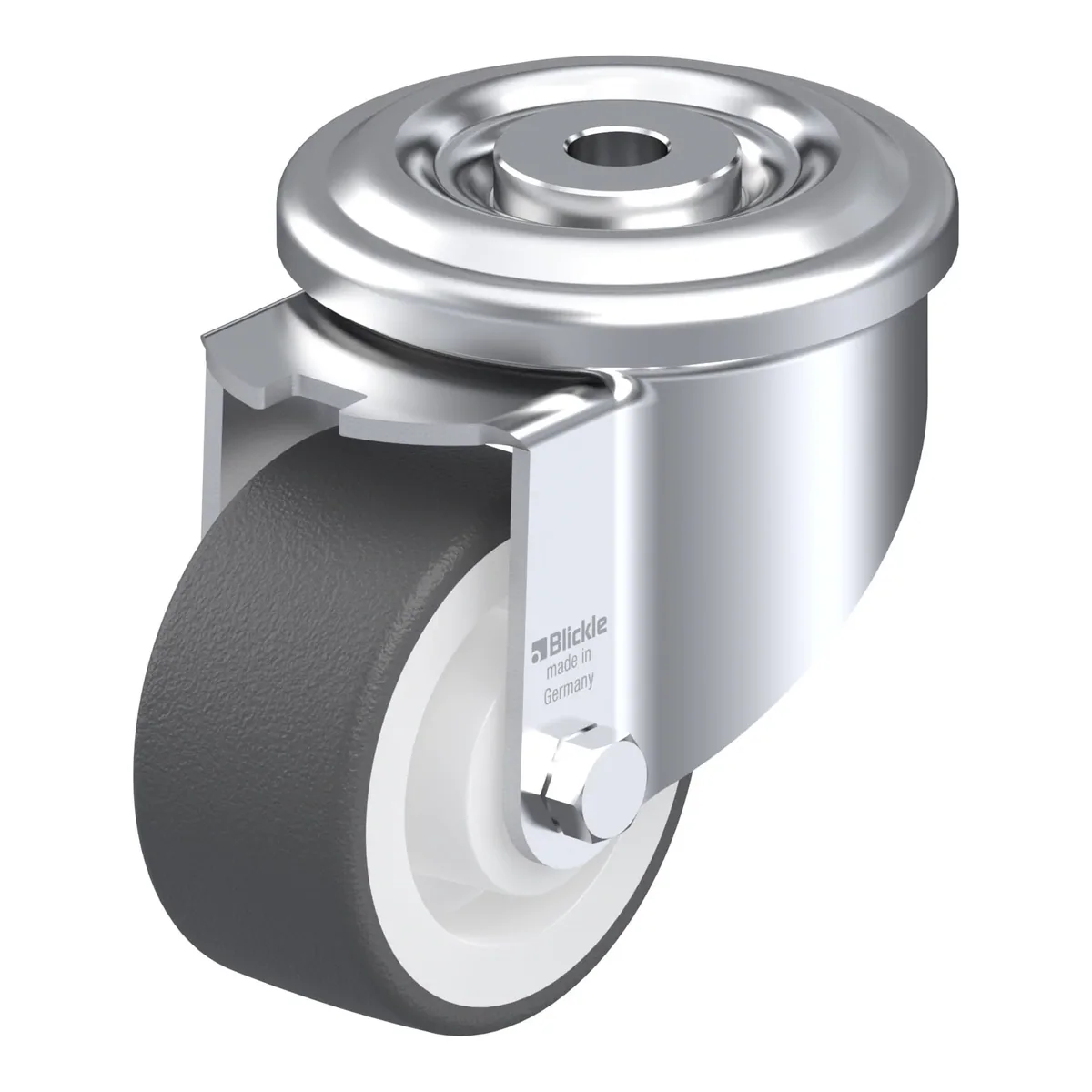

Okretni točkić, Blickle, Made in Germany
Ukratko: LKR-POTH 75G je okretni točkić Blickle promjera 75 mm, širine 37 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 108 mm. Cijena je 81.39 KM s PDV-om.
Pressed steel swivel castor, medium heavy duty brackets, with bolt hole fitting, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre
81.39 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 624783 |
|---|---|
| EAN | 4047526624781 |
| Promjer točka | 75 mm |
| Širina točka | 37 mm |
| Ukupna visina | 108 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Offset | 40 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
