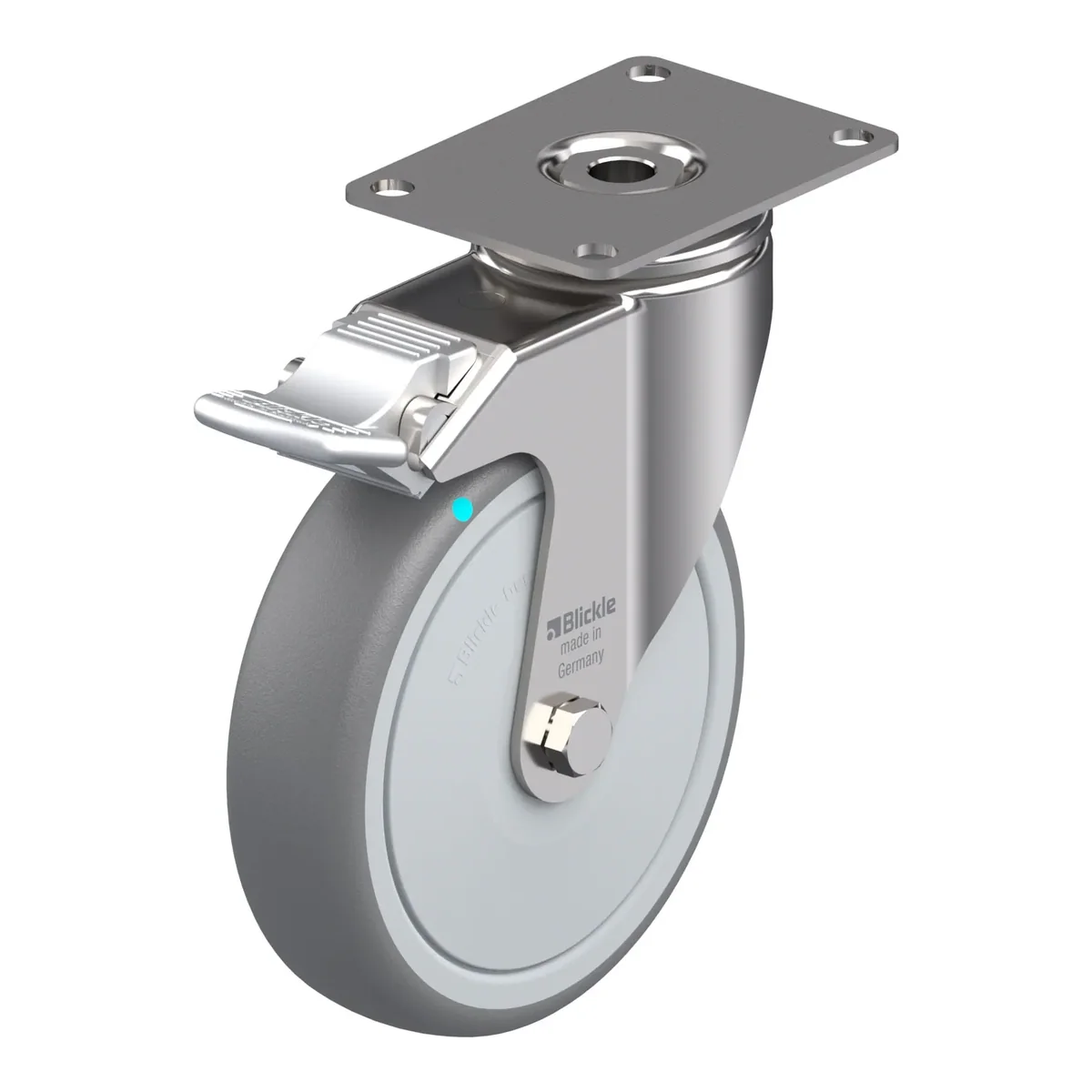

LKPXA-TPA 126KFD-26-FI – okretni točkić Blickle

Šifra 754833

LKPXA-TPA 126KFD-26-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LKPXA-TPA 126KFD-26-FI je okretni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 161 mm. Cijena je 113.47 KM s PDV-om.

Stainless steel light duty swivel castor, with top plate fitting, with brake system 'stop-fix', wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large, with additionals ball b earing seals

113.47 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla754833
EAN4047526114770
Promjer točka125 mm
Širina točka32 mm
Ukupna visina161 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Veličina ploče90 x 66 mm
Razmak rupa55.0 x 36.0 mm
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
