Šifra 756274
GEVN 610/80H7

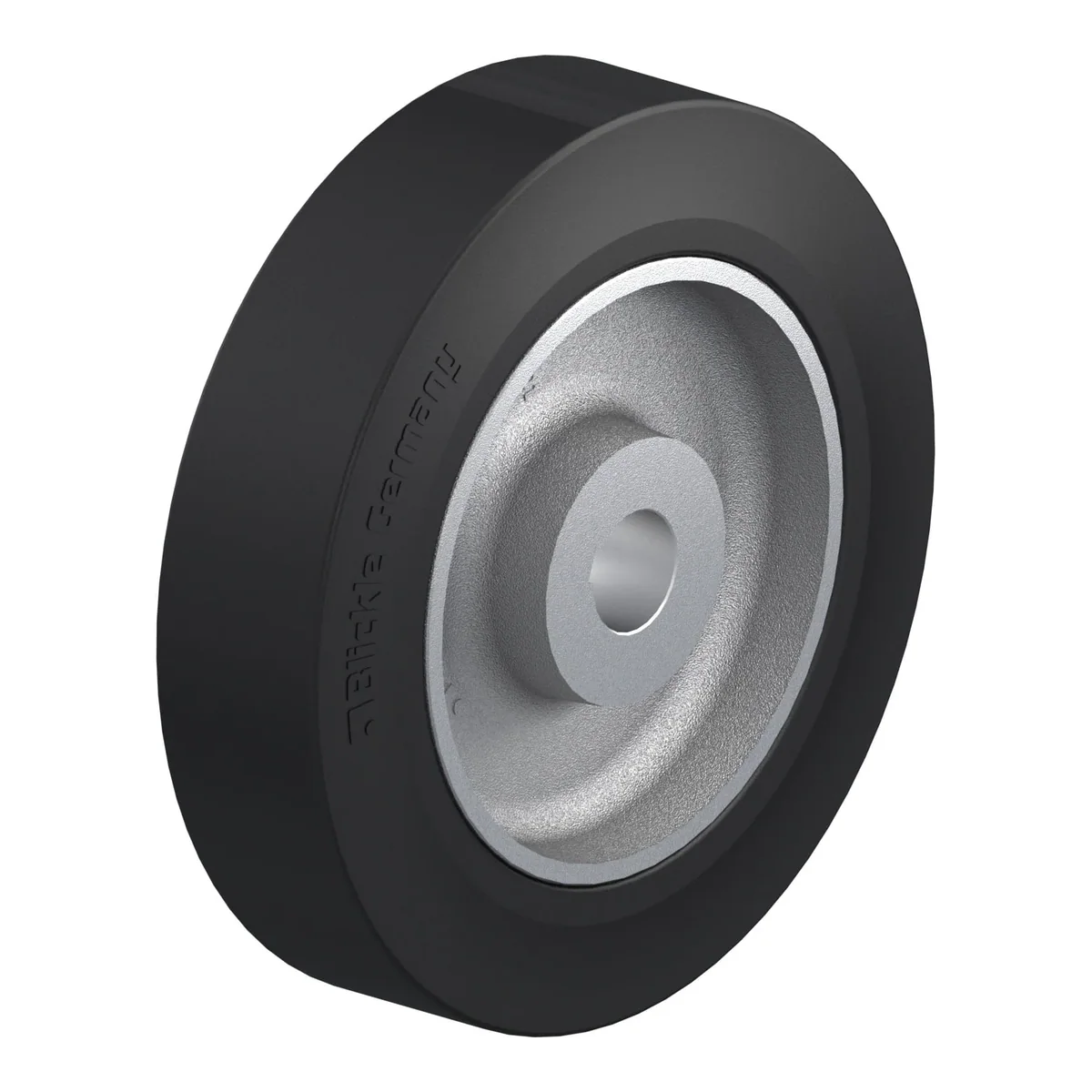

Pogonski kotač, Blickle, Made in Germany
Ukratko: GEVN 610/80H7 je pogonski kotač Blickle promjera 610 mm, širine 150 mm, nosivosti 2700 kg pri 4 km/h (statički 6750 kg). Radi na temperaturi od -30 °C do 80 °C. Cijena je 2839.78 KM s PDV-om.
Heavy duty drive wheel, with hub keyway, with elastic solid rubber tyres, with cast iron wheel centre
2839.78 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 756274 |
|---|---|
| EAN | 4047526117108 |
| Promjer točka | 610 mm |
| Širina točka | 150 mm |
| Nosivost pri 4 km/h | 2700 kg |
| Statička nosivost | 6750 kg |
| Promjer otvora osovine | 80 mm |
| Tvrdoća gazišta | 65 Shore A |
| Radna temperatura | -30 °C do 80 °C |
| Težina | 89.5 kg |
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -30 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- wheel centre is approximately 4 mm wider than the specified wheel width
