Šifra 754371
GBN 604/120H7

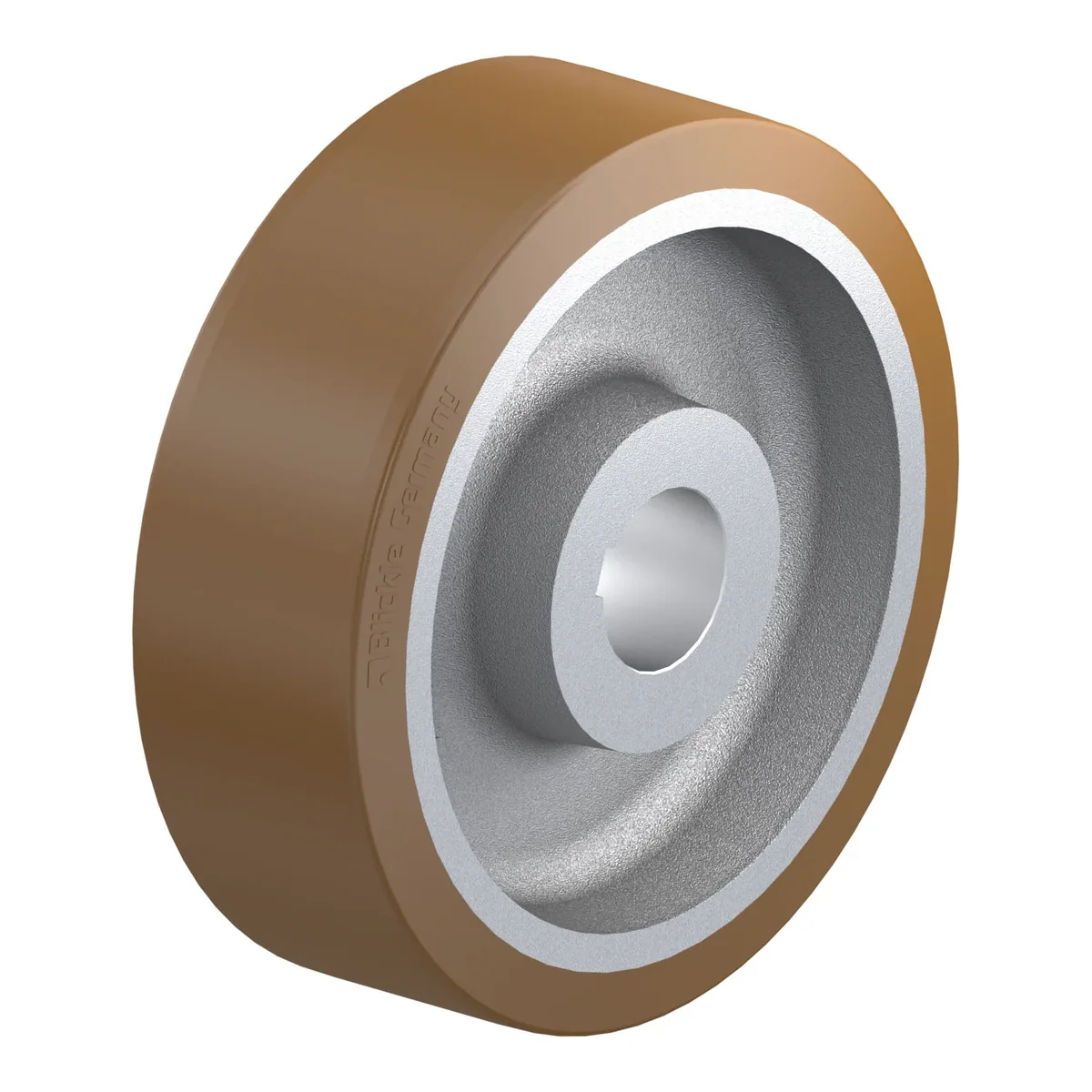

Pogonski kotač, Blickle, Made in Germany
Ukratko: GBN 604/120H7 je pogonski kotač Blickle promjera 600 mm, širine 200 mm, nosivosti 10000 kg pri 4 km/h (statički 25000 kg). Cijena je 4754.84 KM s PDV-om.
Heavy duty drive wheel, with hub keyway, with Blickle Besthane® polyurethane tread, with cast iron wheel centre
4754.84 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754371 |
|---|---|
| EAN | 4047526113360 |
| Promjer točka | 600 mm |
| Širina točka | 200 mm |
| Nosivost pri 4 km/h | 10000 kg |
| Statička nosivost | 25000 kg |
| Promjer otvora osovine | 120 mm |
| Ne ostavlja tragove | da |
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
