Šifra 268375
DSPK 125K

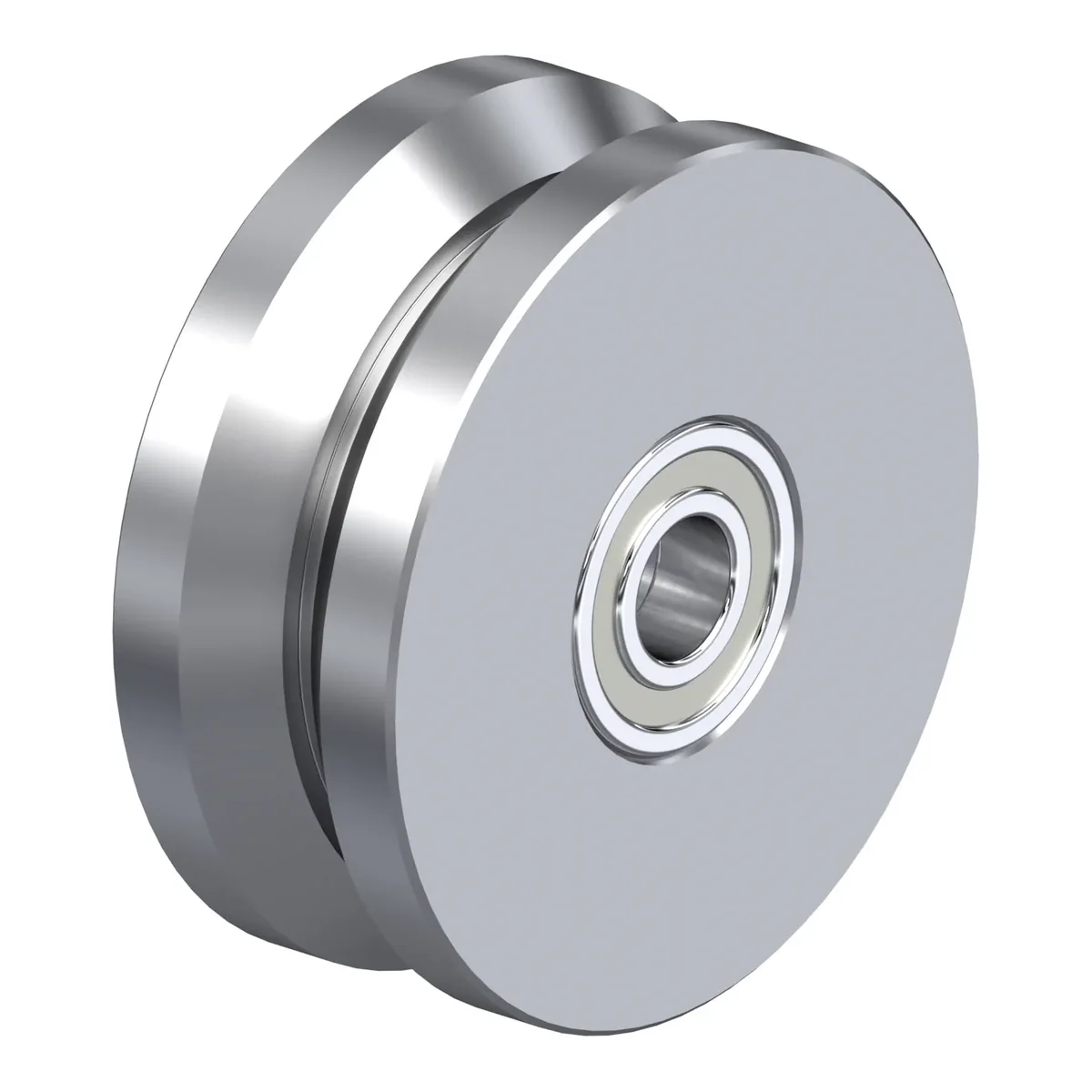

Kotač s prirubnicom, Blickle, Made in Germany
Ukratko: DSPK 125K je kotač s prirubnicom Blickle promjera 125 mm, širine 50 mm, nosivosti 1200 kg pri 4 km/h (statički 3000 kg). Radi na temperaturi od -20 °C do 120 °C. Cijena je 132.12 KM s PDV-om.
Twin flanged wheel of solid steel
132.12 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 268375 |
|---|---|
| EAN | 4047526268374 |
| Promjer točka | 125 mm |
| Širina točka | 50 mm |
| Nosivost pri 4 km/h | 1200 kg |
| Statička nosivost | 3000 kg |
| Promjer otvora osovine | 20 mm |
| Tvrdoća gazišta | 190 Shore A |
| Radna temperatura | -20 °C do 120 °C |
| Težina | 3.9 kg |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Točak
- heat-treatable steel, machined, hardness 190–230 HB
- lightly-oiled surface
- V-shaped tread (for angular steel)
- extremely low rolling resistance
- outstanding wear resistance
- extremely high static and dynamic load capacity
Dodatne karakteristike
- chemical resistance to many aggressive substances
- operating temperature: -20 °C to +120 °C
- consider the surface pressure on sensitive floors due to high point loads
