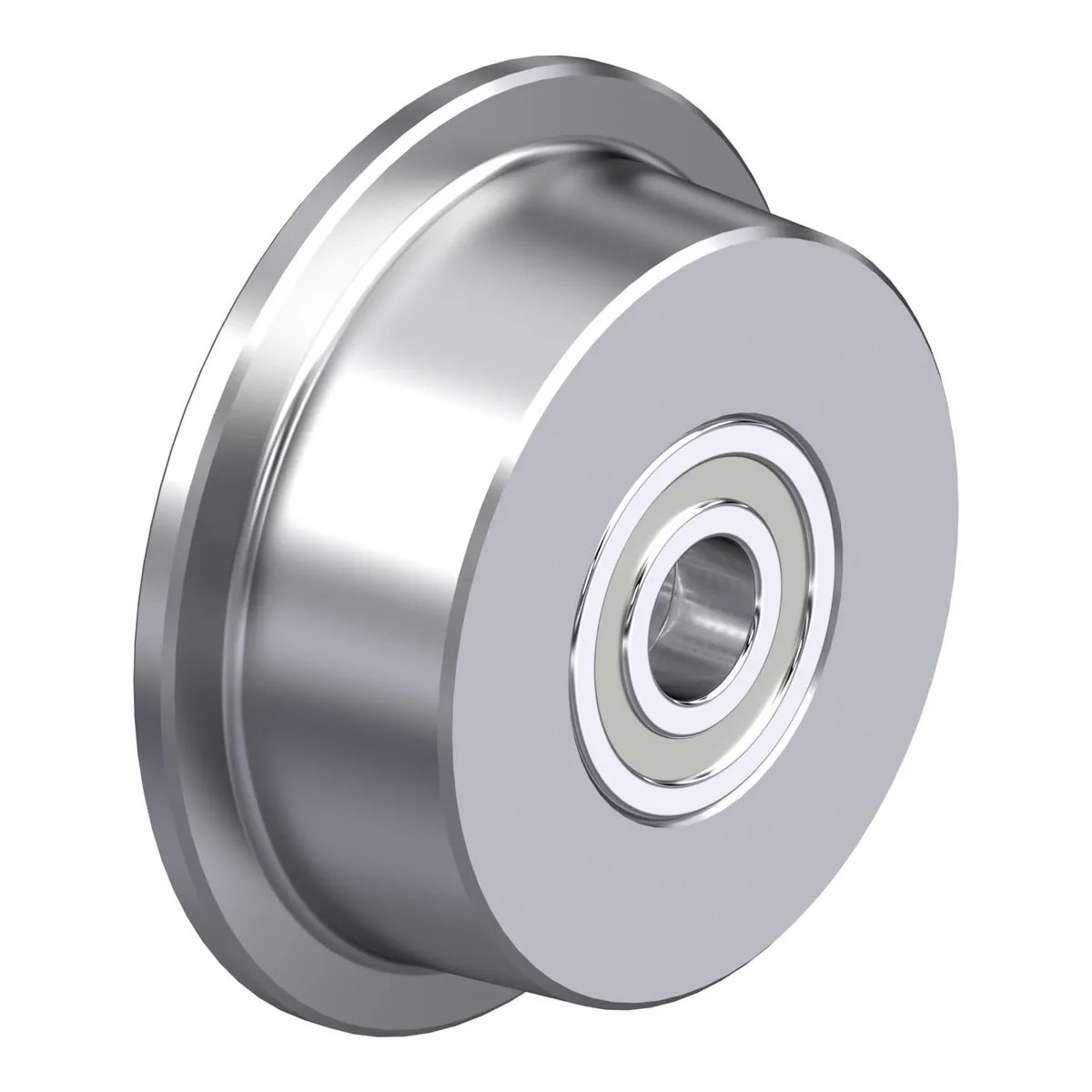

SPKVS 125K – kotač s prirubnicom Blickle

Šifra 606434

SPKVS 125K

Kotač s prirubnicom, Blickle, Made in Germany

Ukratko: SPKVS 125K je kotač s prirubnicom Blickle promjera 125 mm, širine 50 mm, nosivosti 1500 kg pri 4 km/h (statički 3750 kg). Cijena je 207.41 KM s PDV-om.

Solid steel flanged wheel

207.41 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla606434
EAN4047526606435
Promjer točka125 mm
Širina točka50 mm
Nosivost pri 4 km/h1500 kg
Statička nosivost3750 kg
Promjer otvora osovine25 mm
Ne ostavlja tragoveda
ESD zaštitada

Točak

  • heat-treatable steel, machined, hardness 190–230 HB
  • lightly-oiled surface
  • 3° taper tread to axle
  • extremely low rolling resistance
  • extremely high static and dynamic load capacity

Dodatne karakteristike

  • chemical resistance to many aggressive substances
  • operating temperature:ball bearing version: -20 °C to +120 °Cheat-resistant ball bearing version: -30 °C to +300 °C, load capacity reduced by 50% at +300 °C
  • the load capacities provided in the table refer to the allocation of flanged wheels to rail profiles in accordance with DIN 536 specified below (crane rail standard):SPKVS 50K–SPKVS 200K: A45SPKVS 250K: A55SPKVS 300K–SPKVS 400K: A65
