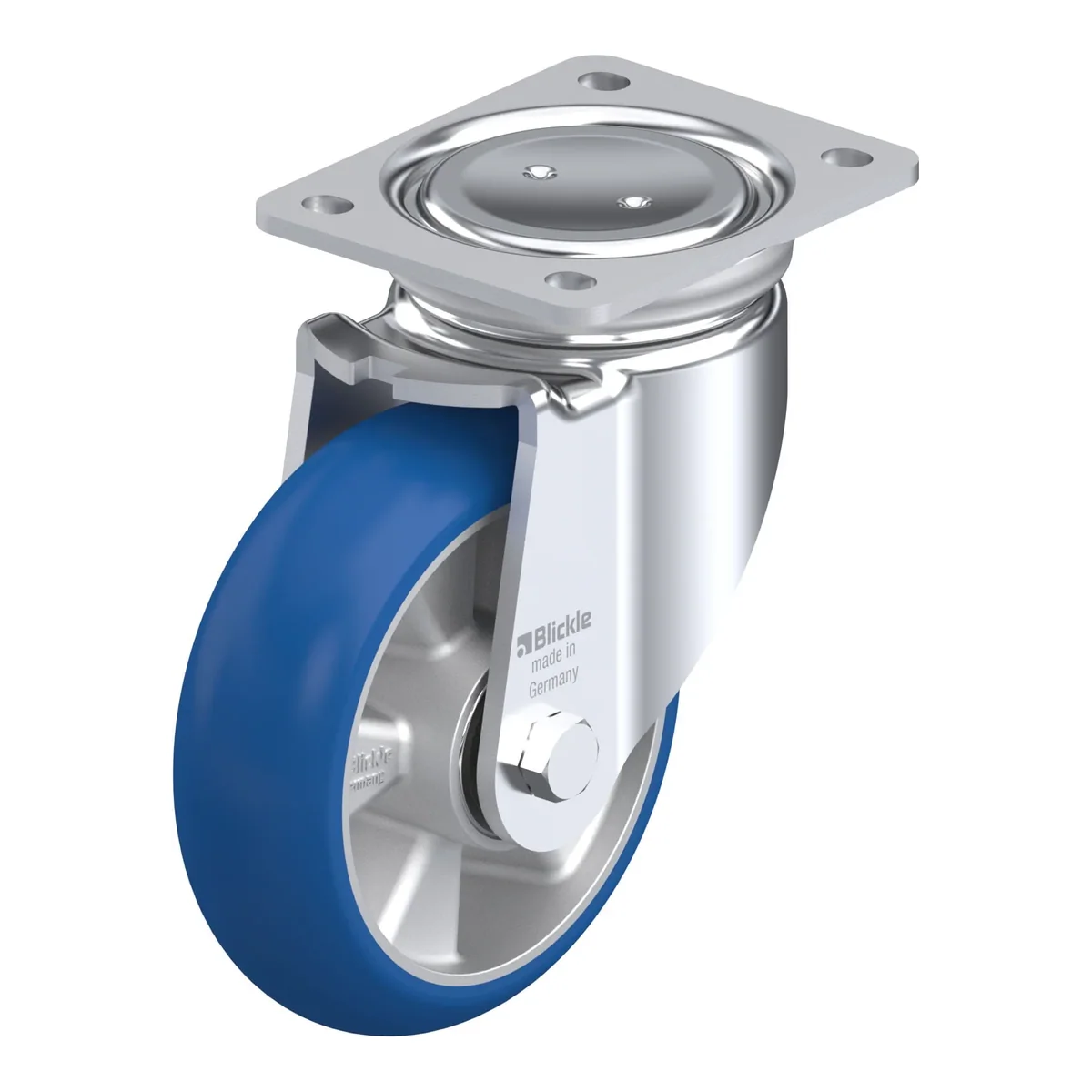

LUH-ALBS 160K-CO – okretni točkić Blickle

Šifra 936570

LUH-ALBS 160K-CO

Okretni točkić, Blickle, Made in Germany

Ukratko: LUH-ALBS 160K-CO je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 580 kg pri 4 km/h (statički 1450 kg). Ukupna visina je 202 mm. Cijena je 281.58 KM s PDV-om.

Pressed steel swivel castor, enclosed design, with top plate fitting, heavy duty wheel, with Blickle Besthane® Soft polyurethane tread, with aluminium wheel centre, with extra crowned running tread

281.58 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla936570
EAN4047526389987
Promjer točka160 mm
Širina točka50 mm
Ukupna visina202 mm
Nosivost pri 4 km/h580 kg
Statička nosivost1450 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset61 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • four-point ball bearing for extremely heavy loads
  • enclosed and sealed swivel head
  • particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats

Točak

  • tread: high-quality polyurethane elastomer Blickle Besthane® Soft, hardness 75 Shore A, colour blue, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
