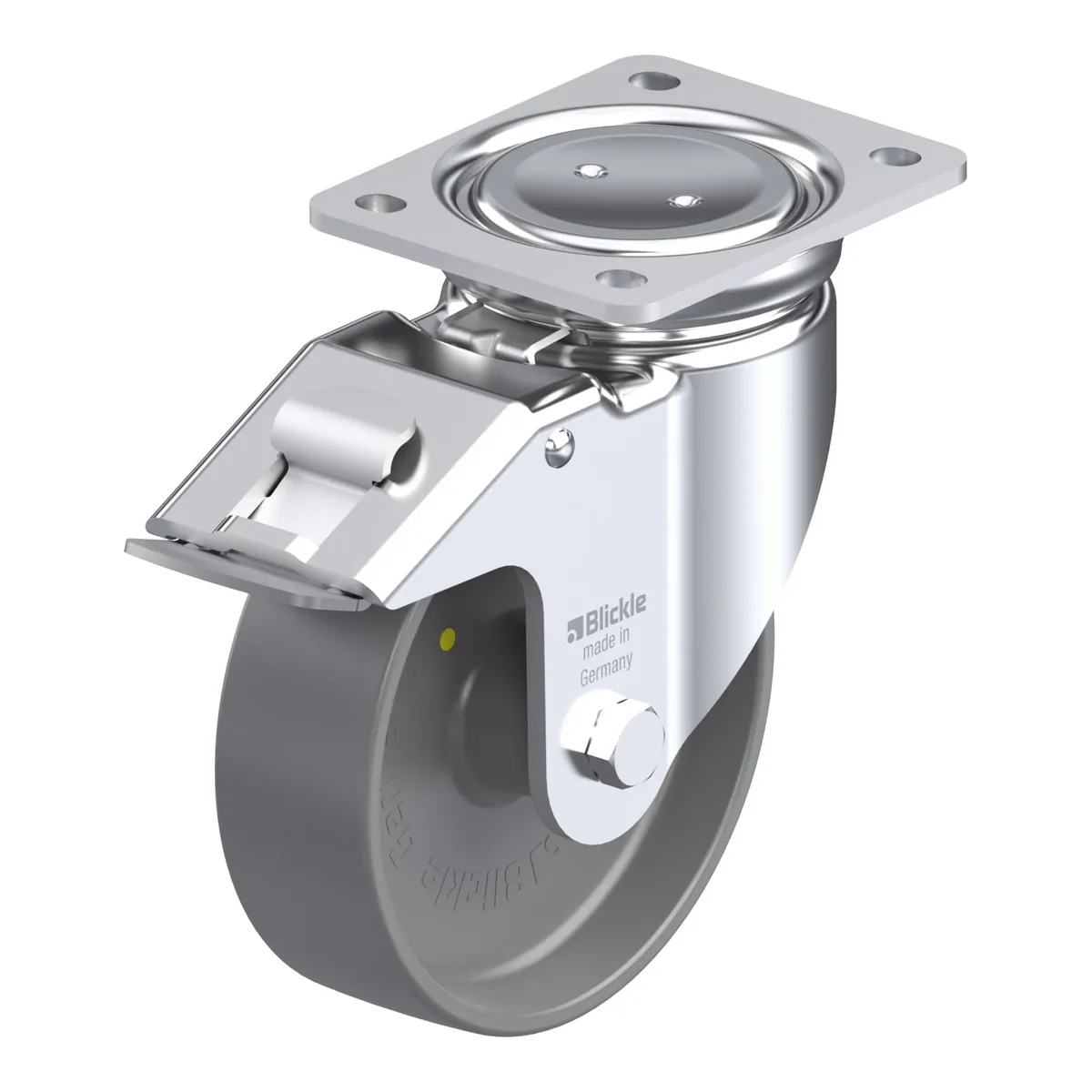

LUH-PO 160G-FI-ELS – okretni točkić Blickle

Šifra 936964

LUH-PO 160G-FI-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LUH-PO 160G-FI-ELS je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 202 mm. Cijena je 308.87 KM s PDV-om.

Pressed steel swivel castor, enclosed design, with top plate fitting, with brake system 'stop-fix', nylon wheel, electrically conductive, non-marking

308.87 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla936964
EAN4047526359157
Promjer točka160 mm
Širina točka50 mm
Ukupna visina202 mm
Nosivost pri 4 km/h450 kg
Statička nosivost1125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset52 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • four-point ball bearing for extremely heavy loads
  • enclosed and sealed swivel head
  • particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
