Šifra 940931
LUH-ALEV 160K-EL

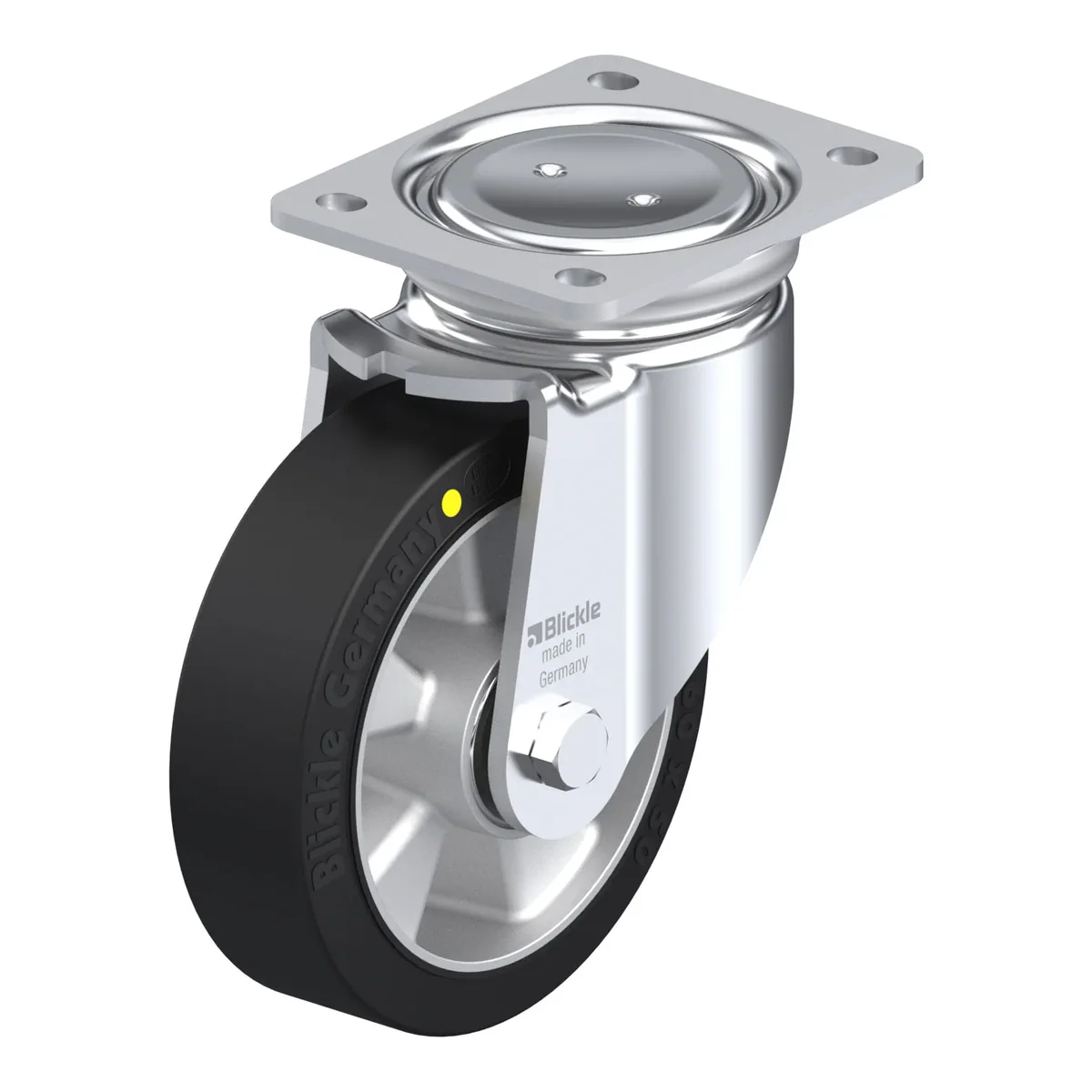

Okretni točkić, Blickle, Made in Germany
Ukratko: LUH-ALEV 160K-EL je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 202 mm. Cijena je 237.69 KM s PDV-om.
Pressed steel swivel castor, enclosed design, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre, electrically conductive
237.69 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 940931 |
|---|---|
| EAN | 4047526412654 |
| Promjer točka | 160 mm |
| Širina točka | 50 mm |
| Ukupna visina | 202 mm |
| Nosivost pri 4 km/h | 400 kg |
| Statička nosivost | 1000 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 61 mm |
| ESD zaštita | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- four-point ball bearing for extremely heavy loads
- enclosed and sealed swivel head
- particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 71 Shore A, colour black
- wheel centre: die-cast aluminium
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
