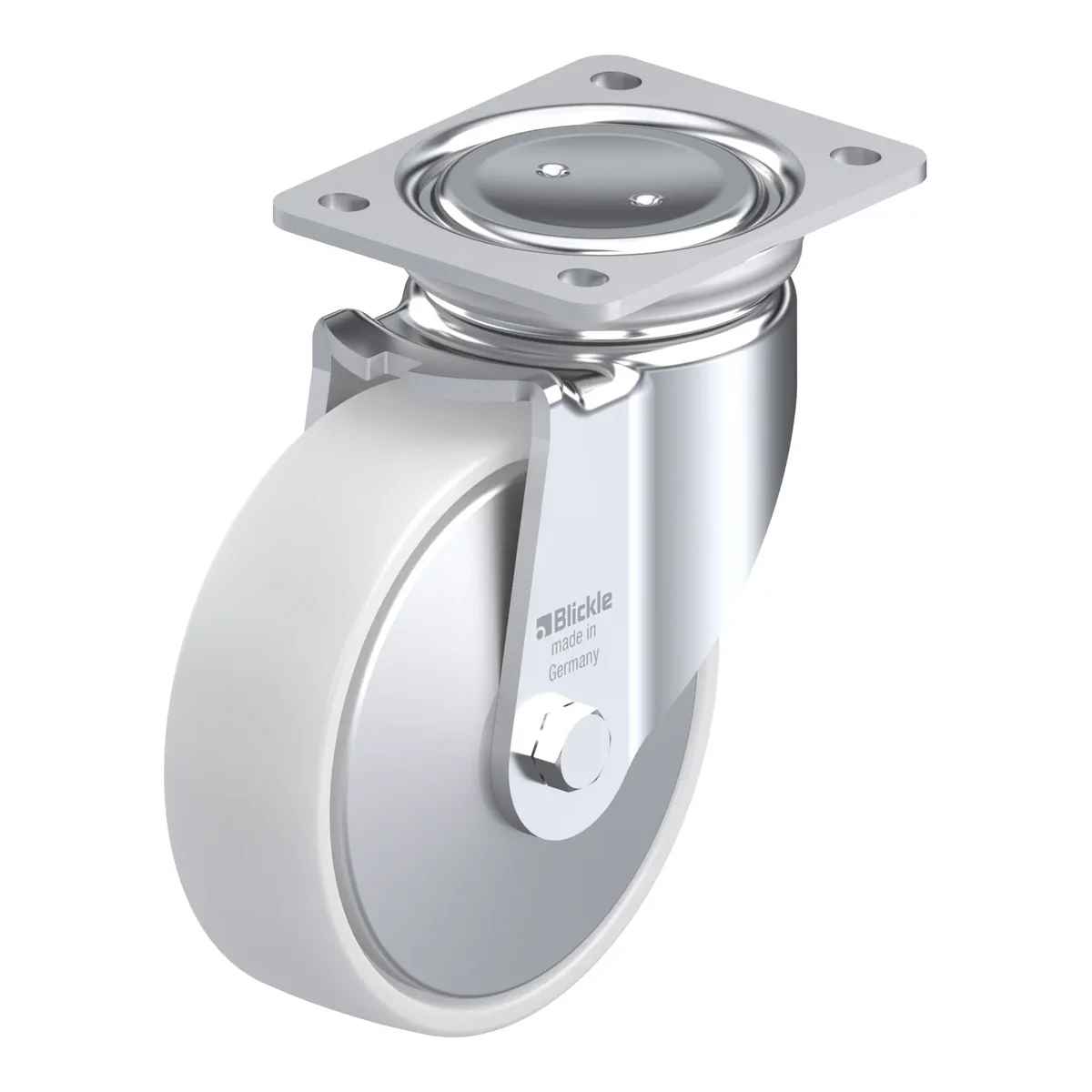

LUH-PO 160K-FA – okretni točkić Blickle

Šifra 852766

LUH-PO 160K-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LUH-PO 160K-FA je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 202 mm. Cijena je 218.72 KM s PDV-om.

Pressed steel swivel castor, enclosed design, with top plate fitting, nylon wheel, with steel thread guard

218.72 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla852766
EAN4047526196776
Promjer točka160 mm
Širina točka50 mm
Ukupna visina202 mm
Nosivost pri 4 km/h450 kg
Statička nosivost1125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset61 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • four-point ball bearing for extremely heavy loads
  • enclosed and sealed swivel head
  • particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
