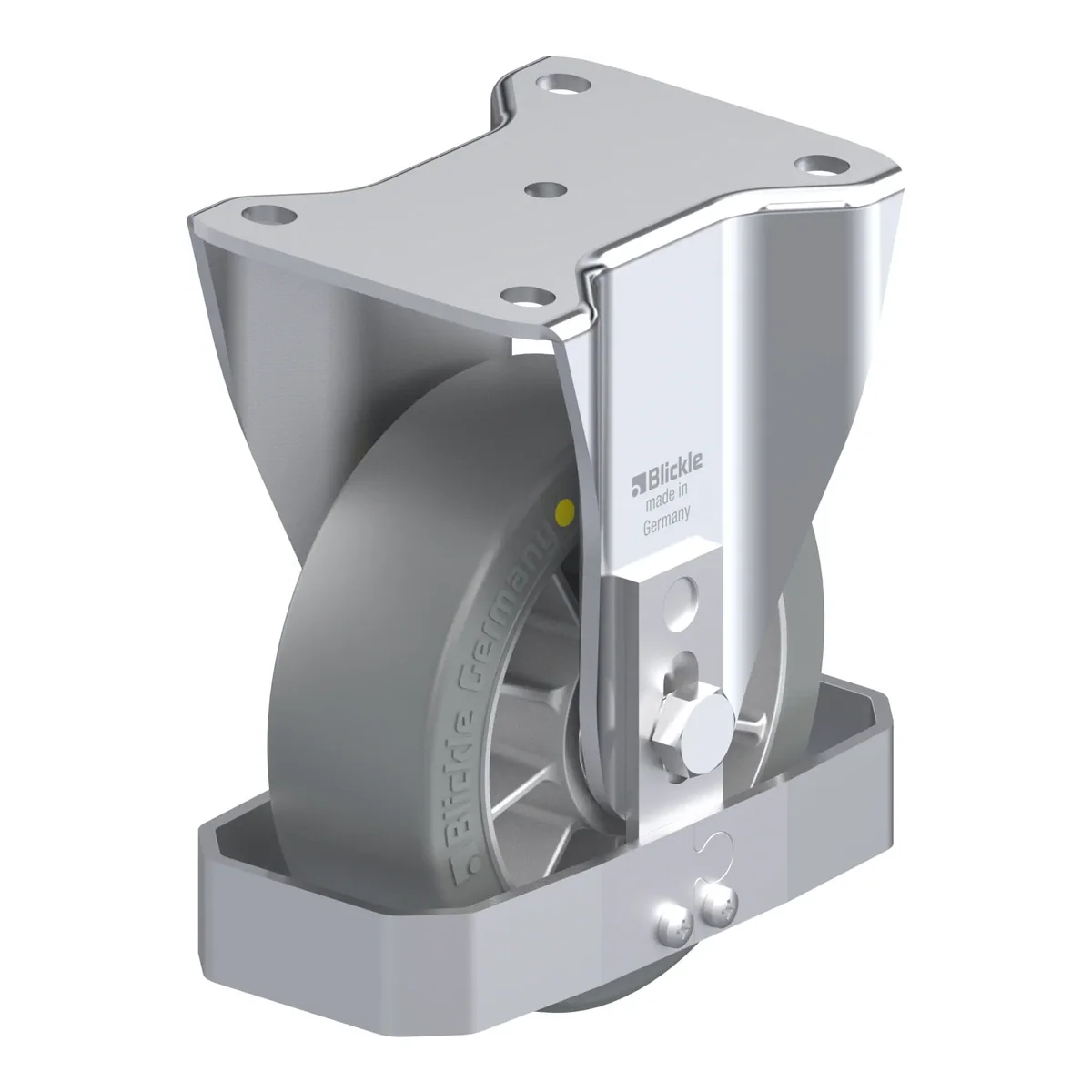

Šifra 939368
BH-ALTH 152K-AS-FS
Fiksni točkić, Blickle, Made in Germany
Ukratko: BH-ALTH 152K-AS-FS je fiksni točkić Blickle promjera 150 mm, širine 54 mm, nosivosti 900 kg pri 4 km/h (statički 2250 kg). Ukupna visina je 197 mm. Cijena je 274.81 KM s PDV-om.
Pressed steel fixed castor, heavy duty design, with top plate fitting, steel foot guard, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre, antistatic
274.81 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 939368 |
|---|---|
| EAN | 4047526367664 |
| Promjer točka | 150 mm |
| Širina točka | 54 mm |
| Ukupna visina | 197 mm |
| Nosivost pri 4 km/h | 900 kg |
| Statička nosivost | 2250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
Točak
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour grey, non-marking, non-staining
- wheel centre: die-cast aluminium, colour silver grey
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
- electrical conductivity (ohmic resistance) ≤ 107Ω
