Šifra 849816

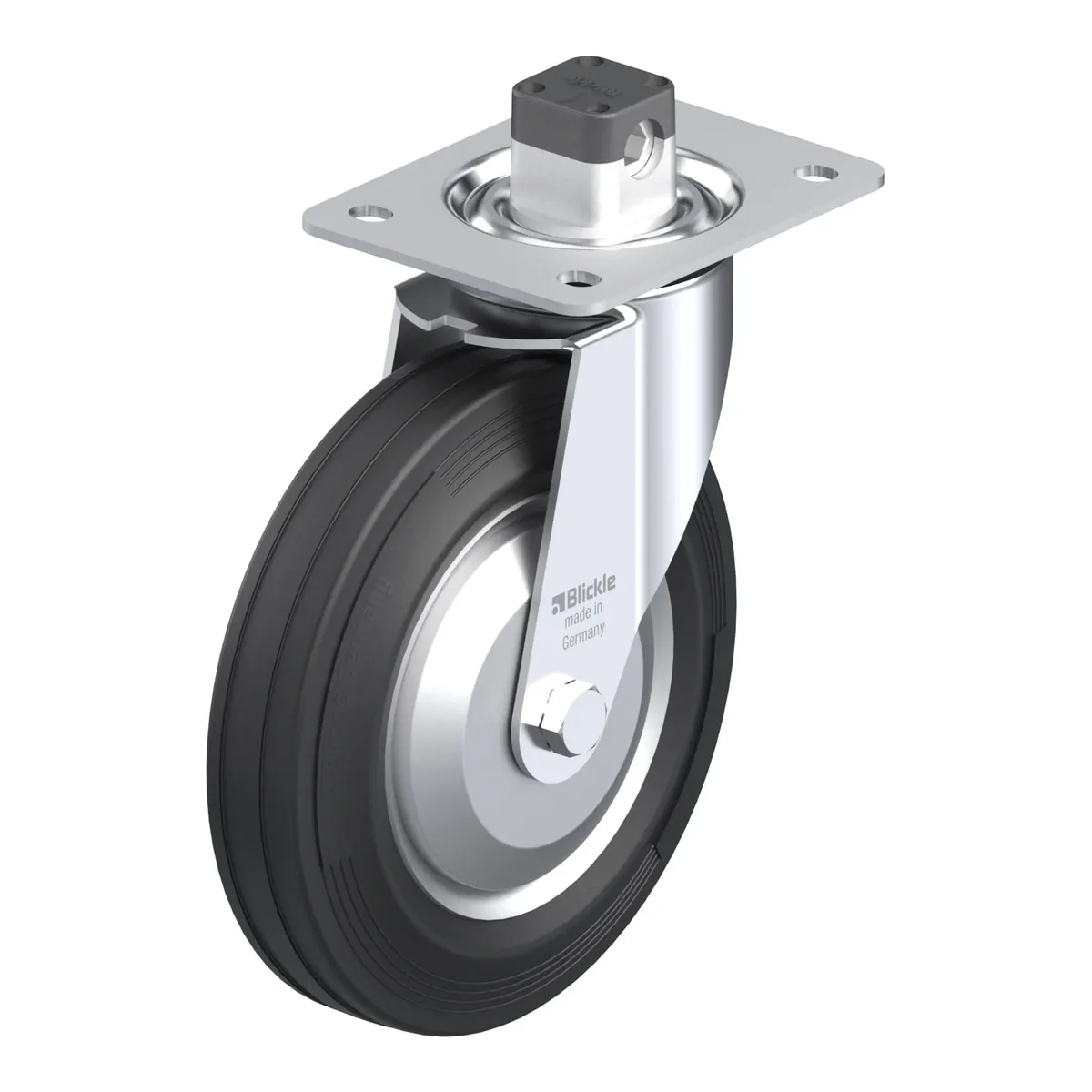

LE-VE 200R-CS11-FA
Okretni točkić, Blickle, Made in Germany
Ukratko: LE-VE 200R-CS11-FA je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 205 kg pri 4 km/h (statički 512.5 kg). Ukupna visina je 235 mm. Cijena je 138.56 KM s PDV-om.
Pressed steel swivel castor, with top plate fitting, with central brake system 'central-stop', wheel, with standard solid rubber tyre, with pressed steel rim, with steel thread guard
138.56 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 849816 |
|---|---|
| EAN | 4047526156183 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 235 mm |
| Nosivost pri 4 km/h | 205 kg |
| Statička nosivost | 512.5 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 54 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
