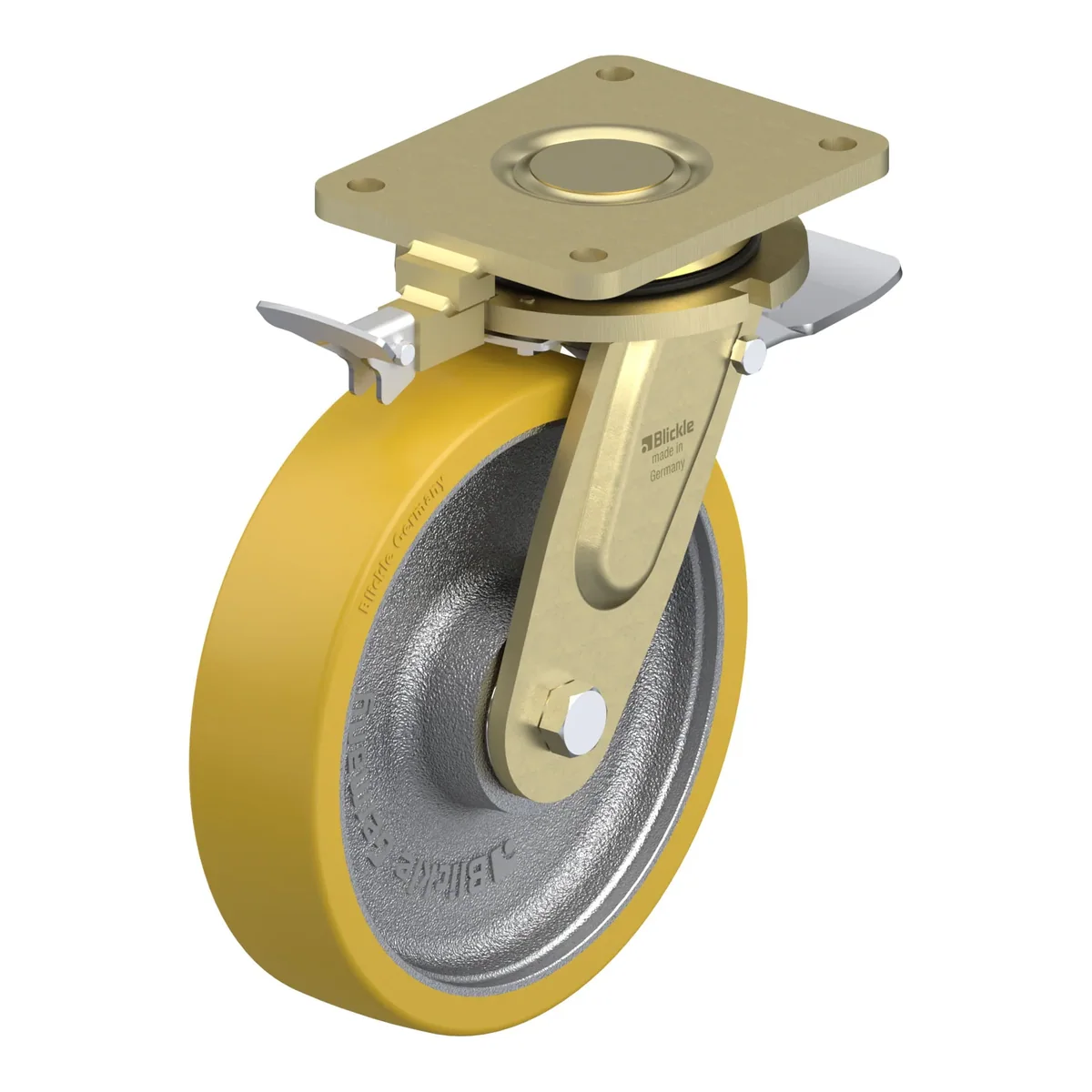

LS-GTH 250K-ST-RI4 – okretni točkić Blickle

Šifra 348235

LS-GTH 250K-ST-RI4

Okretni točkić, Blickle, Made in Germany

Ukratko: LS-GTH 250K-ST-RI4 je okretni točkić Blickle promjera 250 mm, širine 60 mm, nosivosti 1500 kg pri 4 km/h (statički 3750 kg). Ukupna visina je 305 mm. Cijena je 862.48 KM s PDV-om.

Heavy duty welded steel swivel castor, heavy duty swivel head, with brake system 'stop-top', with directional lock, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre

862.48 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla348235
EAN4047526348236
Promjer točka250 mm
Širina točka60 mm
Ukupna visina305 mm
Nosivost pri 4 km/h1500 kg
Statička nosivost3750 kg
Veličina ploče175 x 140 mm
Razmak rupa140.0 x 110.0 mm
Offset75 mm
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
  • wheel centre: rugged grey cast iron
  • with grease nipple, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
