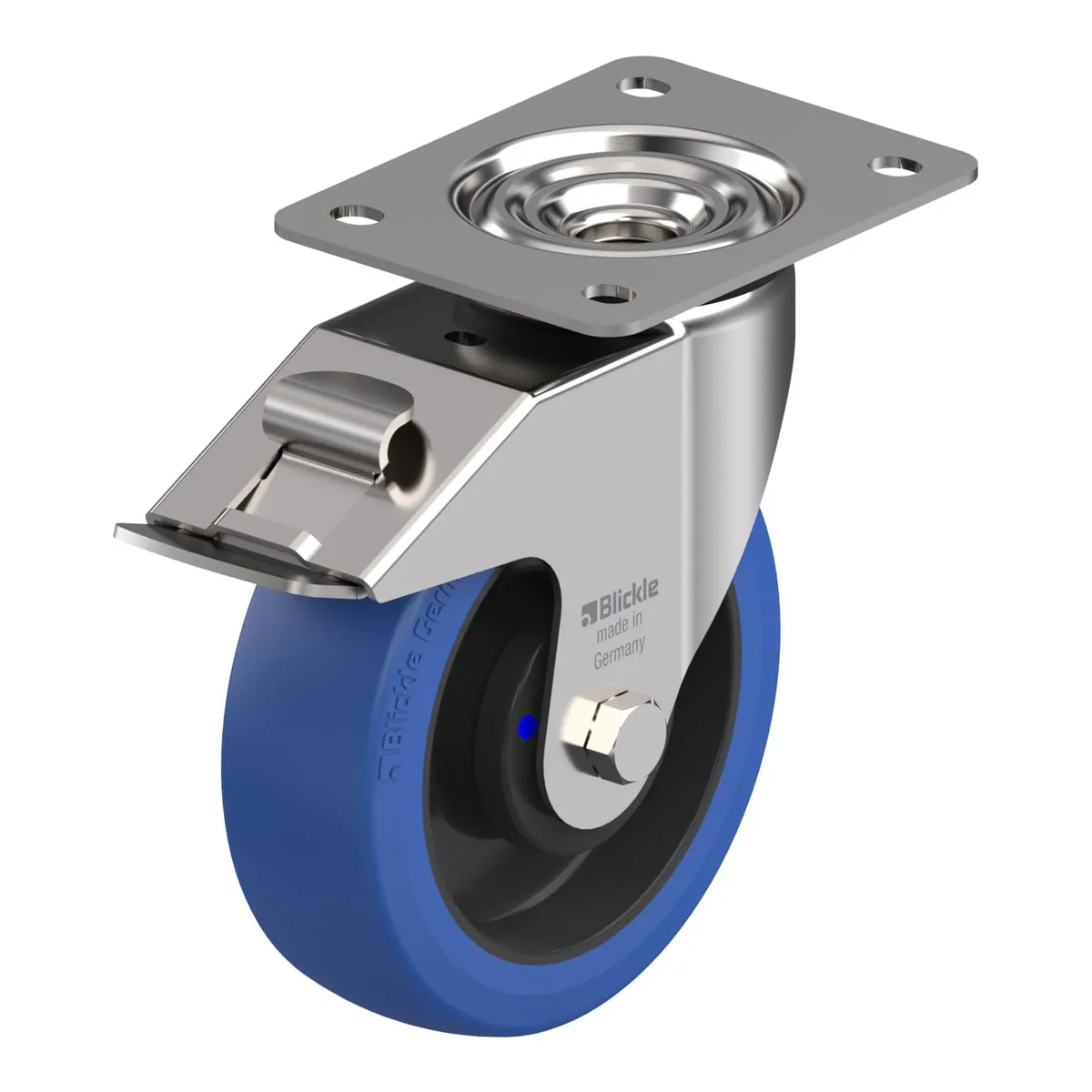

LEX-POBS 160XKA-FI – okretni točkić Blickle

Šifra 901236

LEX-POBS 160XKA-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LEX-POBS 160XKA-FI je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 195 mm. Cijena je 329.27 KM s PDV-om.

Stainless steel swivel castor, with top plate fitting, with brake system 'stop-fix', heavy duty wheel, with Blickle Besthane® Soft polyurethane tread, with nylon wheel centre, with synthetic thread guard, small

329.27 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla901236
EAN4047526346942
Promjer točka160 mm
Širina točka50 mm
Ukupna visina195 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset47 mm
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality polyurethane elastomer Blickle Besthane® Soft, hardness 75 Shore A, colour blue, non-marking, non-staining, very low rolling resistance,high dynamic load capacity, corrosion and hydrolysis-resistant
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • with synthetic thread guard, small
  • corrosion and hydrolysis-resistant
  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
