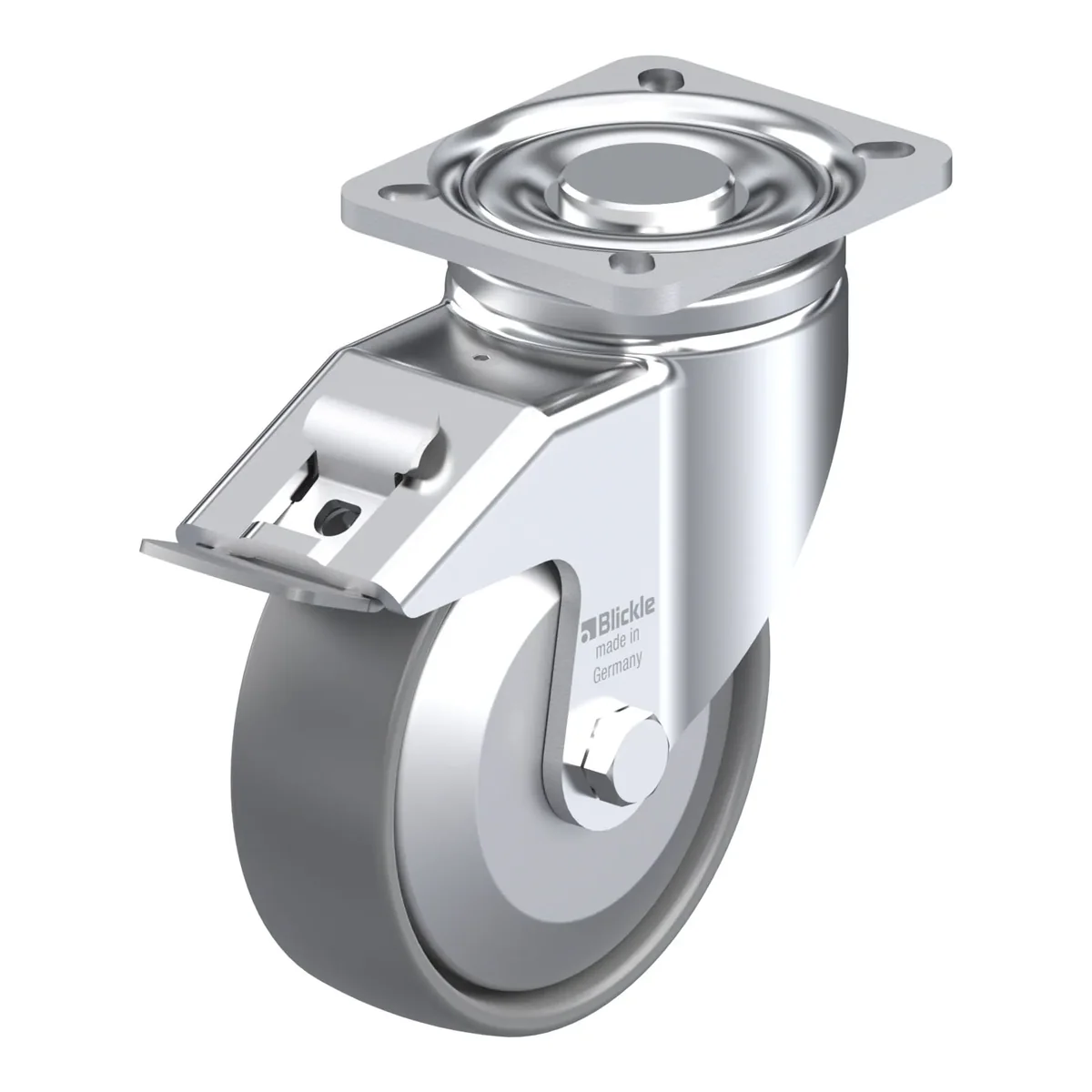

LH-PO 125G-1-FI-ELS-FA – okretni točkić Blickle

Šifra 946704

LH-PO 125G-1-FI-ELS-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LH-PO 125G-1-FI-ELS-FA je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 165 mm. Cijena je 177.15 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-fix', nylon wheel, with steel thread guard, electrically conductive, non-marking

177.15 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla946704
EAN4047526371319
Promjer točka125 mm
Širina točka40 mm
Ukupna visina165 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset45 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • bolted and secured central kingpin, extremely strong
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
