Šifra 651315
LS-VLE 257K-ST

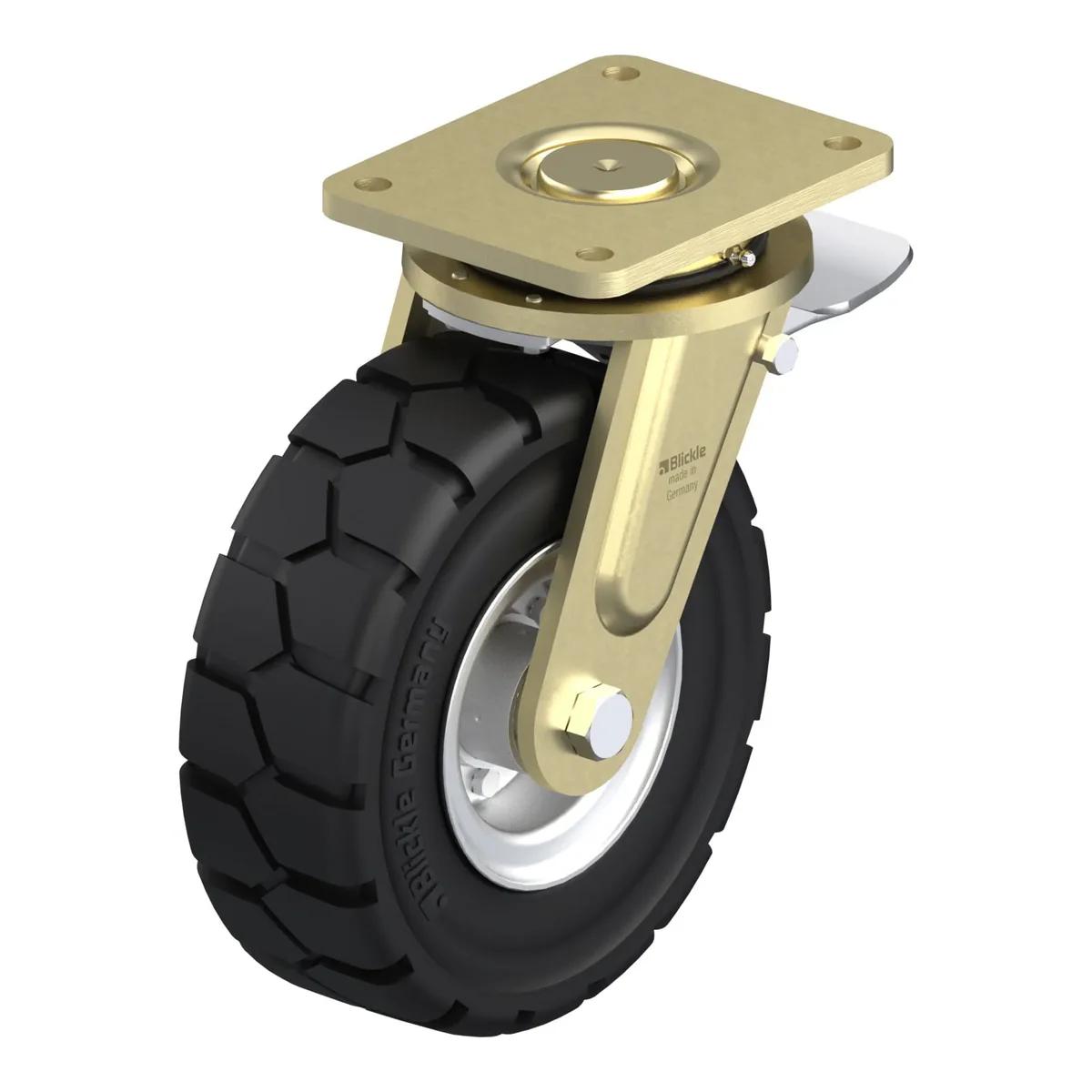

Okretni točkić, Blickle, Made in Germany
Ukratko: LS-VLE 257K-ST je okretni točkić Blickle promjera 250 mm, širine 85 mm, nosivosti 600 kg pri 4 km/h (statički 1500 kg). Ukupna visina je 305 mm. Cijena je 904.96 KM s PDV-om.
Heavy duty welded steel swivel castor, heavy duty swivel head, with brake system 'stop-top', heavy duty wheel, with elastic solid rubber tyre
904.96 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 651315 |
|---|---|
| EAN | 4047526651312 |
| Promjer točka | 250 mm |
| Širina točka | 85 mm |
| Ukupna visina | 305 mm |
| Nosivost pri 4 km/h | 600 kg |
| Statička nosivost | 1500 kg |
| Veličina ploče | 175 x 140 mm |
| Razmak rupa | 140.0 x 110.0 mm |
| Offset | 75 mm |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Točak
- tyre: super-elastic solid rubber, hardness 70 Shore A, colour black
- 2-component tyre, highly-elastic, abrasion-resistant tread
- rim: heavy pressed steel, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- puncture-proof, maintenance-free
