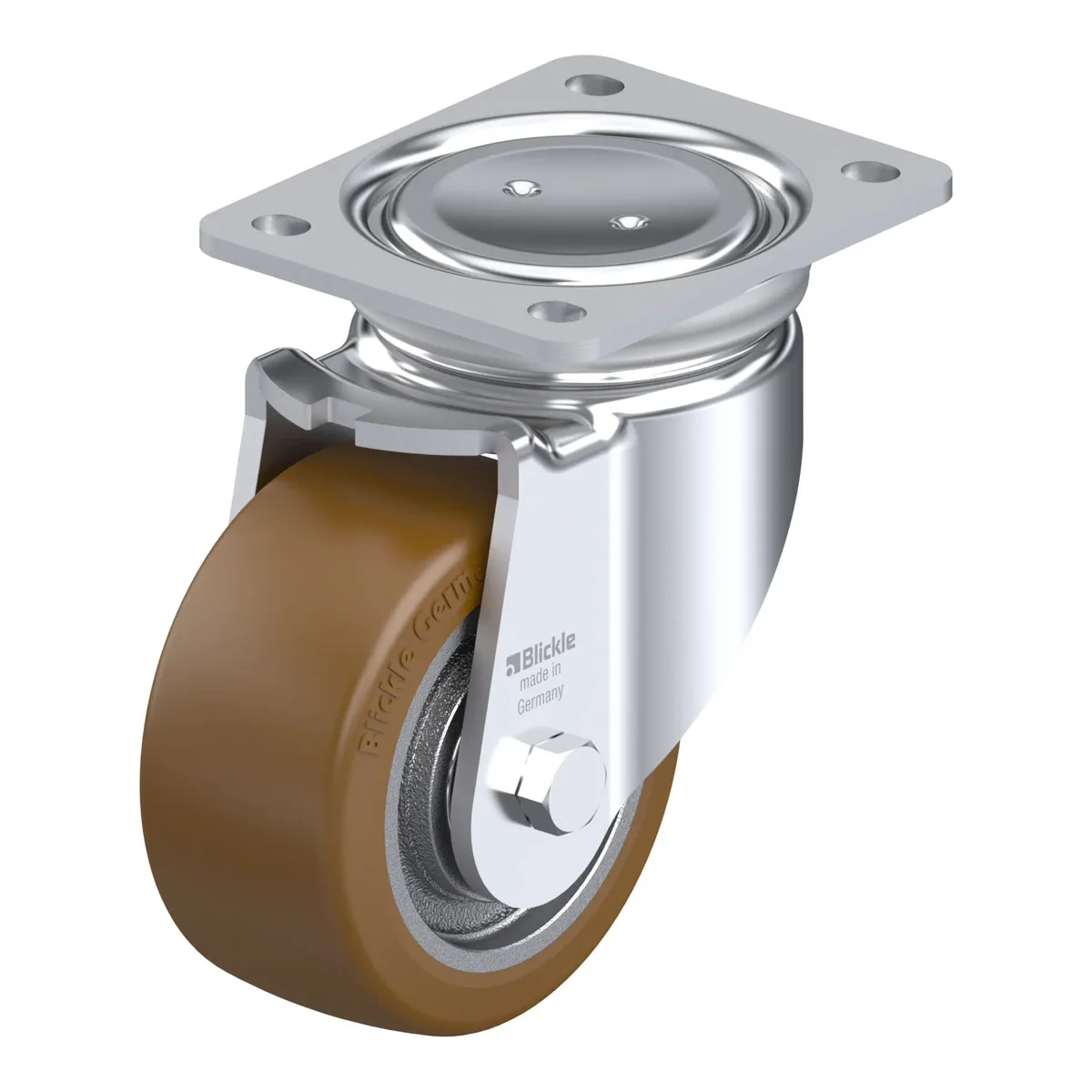

LUH-GB 128K – okretni točkić Blickle

Šifra 755091

LUH-GB 128K

Okretni točkić, Blickle, Made in Germany

Ukratko: LUH-GB 128K je okretni točkić Blickle promjera 125 mm, širine 60 mm, nosivosti 850 kg pri 4 km/h (statički 2125 kg). Ukupna visina je 170 mm. Cijena je 316.53 KM s PDV-om.

Pressed steel swivel castor, enclosed design, with top plate fitting, heavy duty wheel, with Blickle Besthane® polyurethane tread, with cast iron wheel centre

316.53 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla755091
EAN4047526081195
Promjer točka125 mm
Širina točka60 mm
Ukupna visina170 mm
Nosivost pri 4 km/h850 kg
Statička nosivost2125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset55 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • four-point ball bearing for extremely heavy loads
  • enclosed and sealed swivel head
  • particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats

Točak

  • tread: high-quality polyurethane elastomer Blickle Besthane®, hardness 92 Shore A, colour brown, non-marking, non-staining
  • wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 150 mm, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
