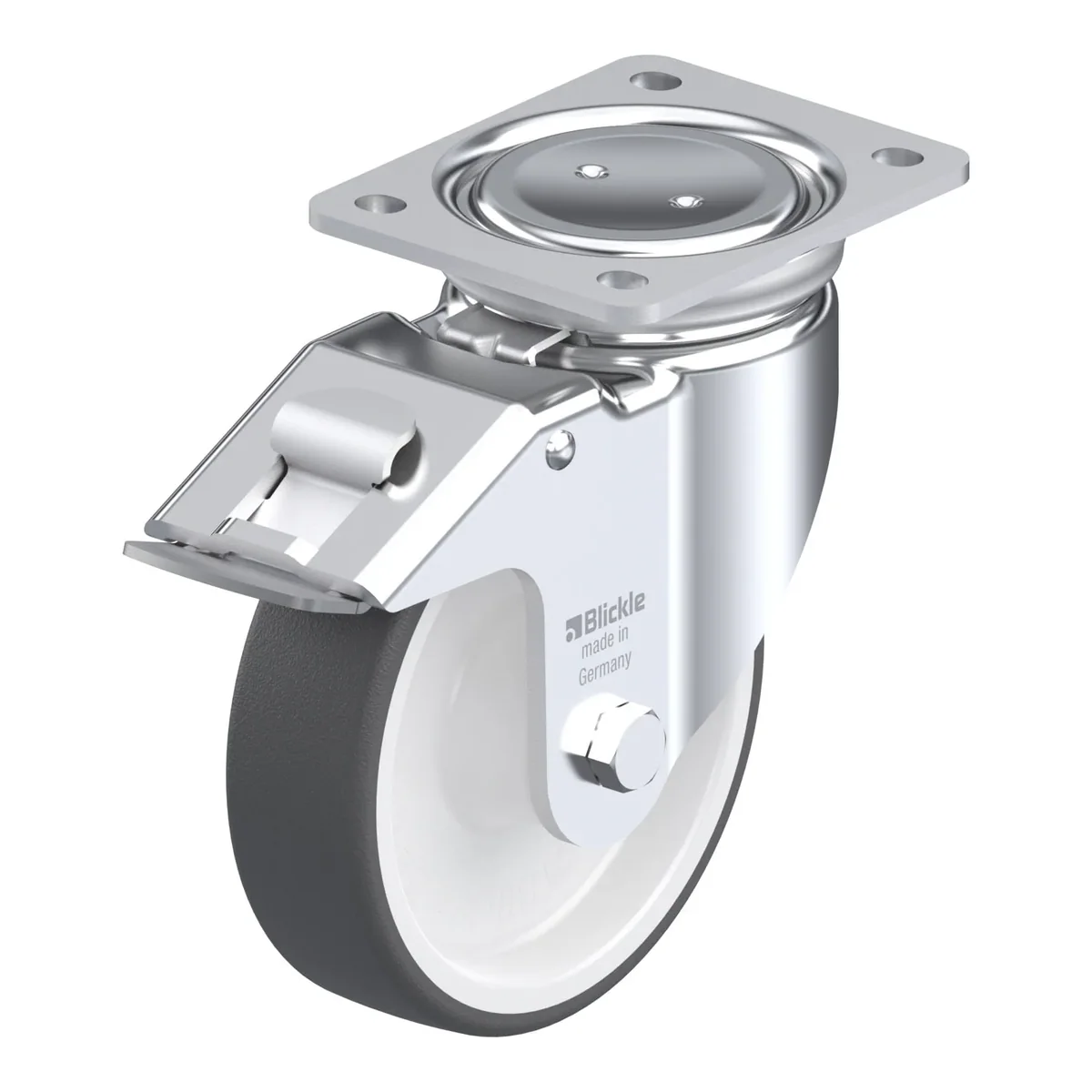

LUH-POTH 160R-FI – okretni točkić Blickle

Šifra 759203

LUH-POTH 160R-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LUH-POTH 160R-FI je okretni točkić Blickle promjera 160 mm, širine 45 mm, nosivosti 550 kg pri 4 km/h (statički 1375 kg). Ukupna visina je 202 mm. Cijena je 290.28 KM s PDV-om.

Pressed steel swivel castor, enclosed design, with top plate fitting, with brake system 'stop-fix', wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre

290.28 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla759203
EAN4047526102418
Promjer točka160 mm
Širina točka45 mm
Ukupna visina202 mm
Nosivost pri 4 km/h550 kg
Statička nosivost1375 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset52 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • four-point ball bearing for extremely heavy loads
  • enclosed and sealed swivel head
  • particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
