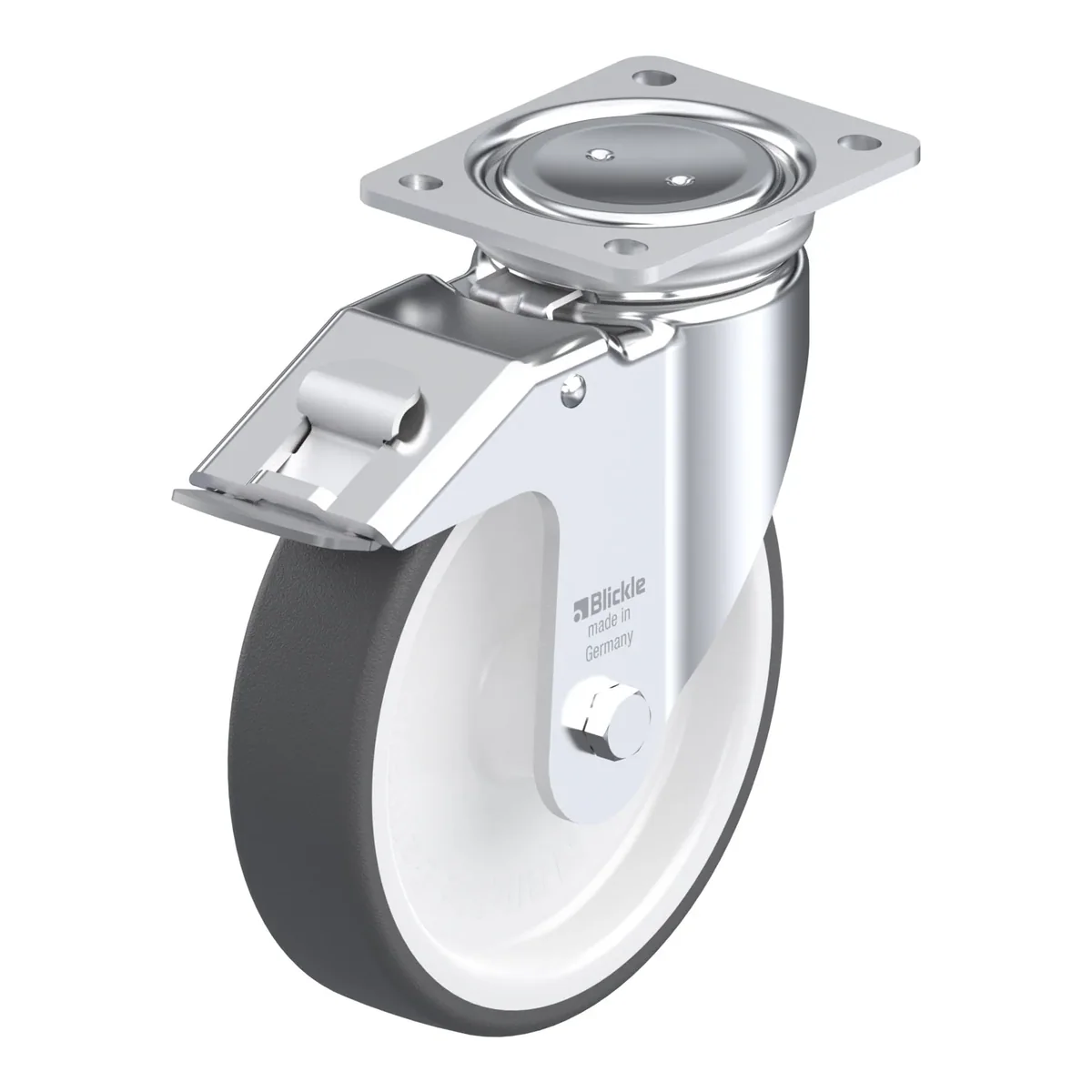

LUH-POTH 200G-FI – okretni točkić Blickle

Šifra 759205

LUH-POTH 200G-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LUH-POTH 200G-FI je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 800 kg pri 4 km/h (statički 2000 kg). Ukupna visina je 245 mm. Cijena je 326.14 KM s PDV-om.

Pressed steel swivel castor, enclosed design, with top plate fitting, with brake system 'stop-fix', wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre

326.14 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla759205
EAN4047526102548
Promjer točka200 mm
Širina točka50 mm
Ukupna visina245 mm
Nosivost pri 4 km/h800 kg
Statička nosivost2000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset60 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • four-point ball bearing for extremely heavy loads
  • enclosed and sealed swivel head
  • particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
