LUH-POEV 160XR-FI-SG – okretni točkić Blickle

Šifra 851557

LUH-POEV 160XR-FI-SG

Okretni točkić, Blickle, Made in Germany

Ukratko: LUH-POEV 160XR-FI-SG je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 202 mm. Cijena je 304.46 KM s PDV-om.

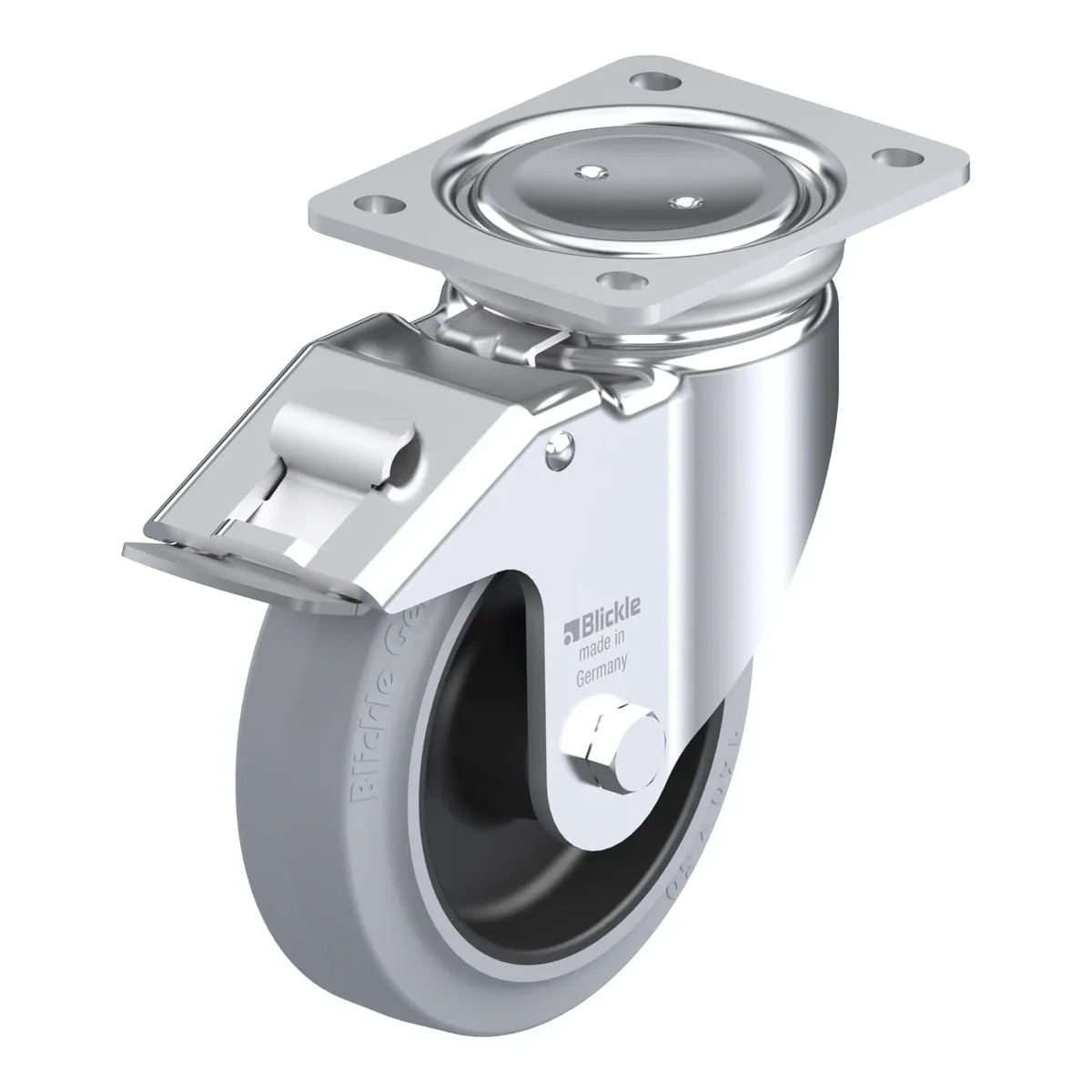

Pressed steel swivel castor, enclosed design, with top plate fitting, with brake system 'stop-fix', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, non-marking, grey

304.46 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla851557
EAN4047526181413
Promjer točka160 mm
Širina točka50 mm
Ukupna visina202 mm
Nosivost pri 4 km/h400 kg
Statička nosivost1000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset52 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • four-point ball bearing for extremely heavy loads
  • enclosed and sealed swivel head
  • particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour grey, non-marking
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
