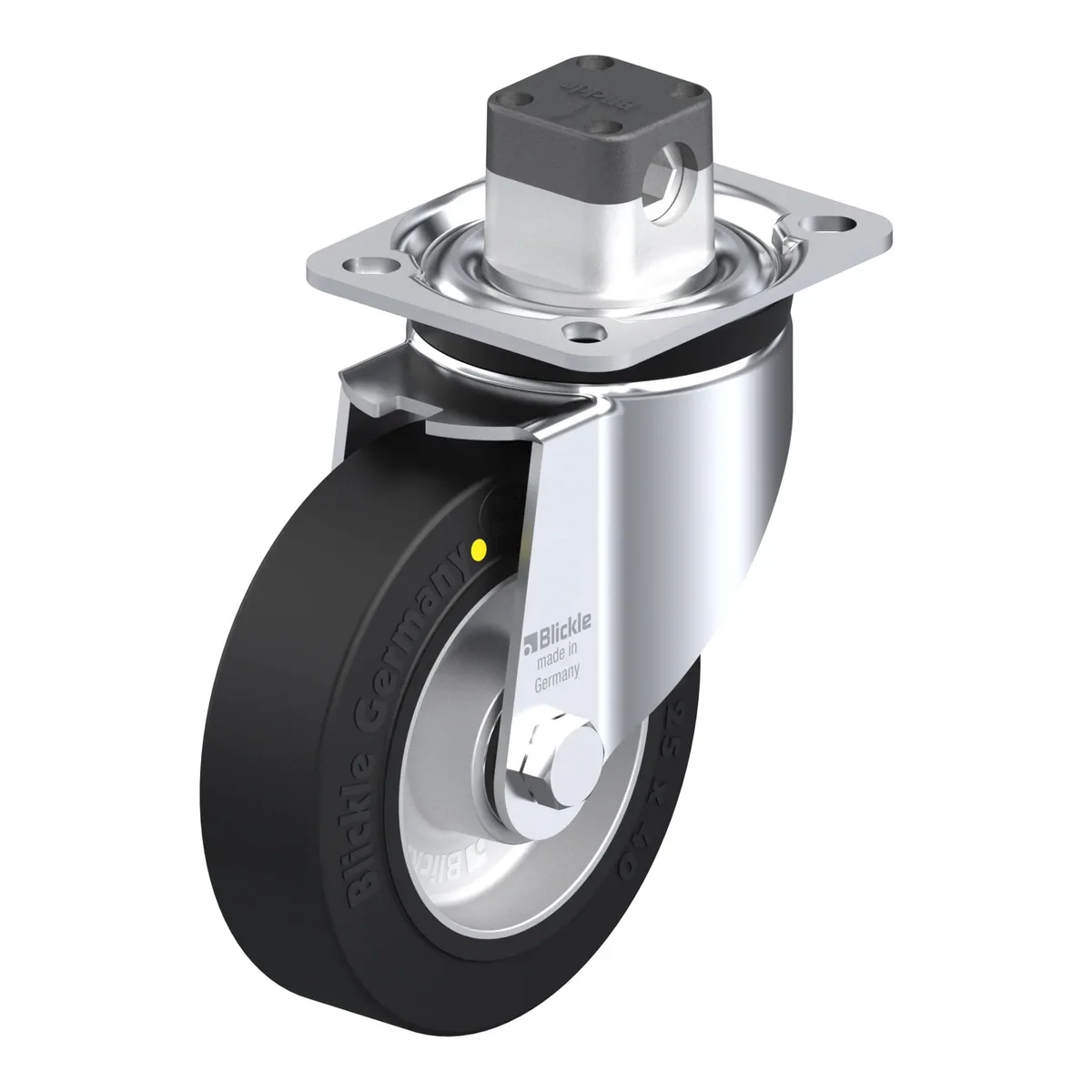

LK-ALEV 125K-1-CS11-EL – okretni točkić Blickle

Šifra 851996

LK-ALEV 125K-1-CS11-EL

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-ALEV 125K-1-CS11-EL je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 155 mm. Cijena je 141.65 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, with central brake system 'central-stop', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre, electrically conductive

141.65 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla851996
EAN4047526186463
Promjer točka125 mm
Širina točka40 mm
Ukupna visina155 mm
Nosivost pri 4 km/h250 kg
Statička nosivost625 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset48 mm
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 71 Shore A, colour black
  • wheel centre: die-cast aluminium

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
