Šifra 946785

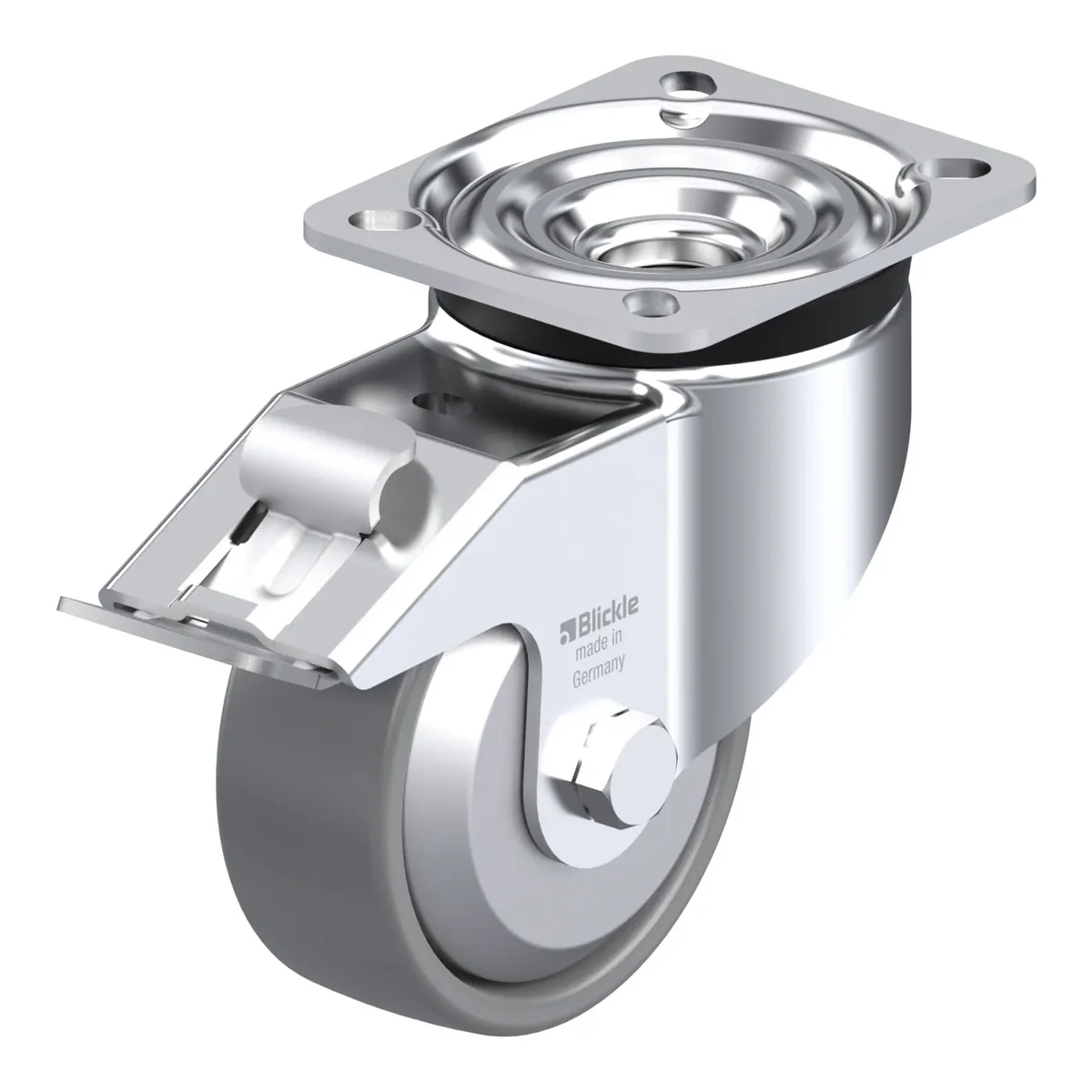

LK-PO 100KA-1-FI-ELS-FA
Okretni točkić, Blickle, Made in Germany
Ukratko: LK-PO 100KA-1-FI-ELS-FA je okretni točkić Blickle promjera 100 mm, širine 37 mm, nosivosti 280 kg pri 4 km/h (statički 700 kg). Ukupna visina je 130 mm. Cijena je 108.38 KM s PDV-om.
Pressed steel swivel castor, Heavy duty design, with brake system 'stop-fix', nylon wheel, with synthetic thread guard, small, with steel thread guard, electrically conductive, non-marking
108.38 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 946785 |
|---|---|
| EAN | 4047526372545 |
| Promjer točka | 100 mm |
| Širina točka | 37 mm |
| Ukupna visina | 130 mm |
| Nosivost pri 4 km/h | 280 kg |
| Statička nosivost | 700 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 47 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking
Dodatne karakteristike
- with synthetic thread guard, small
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
