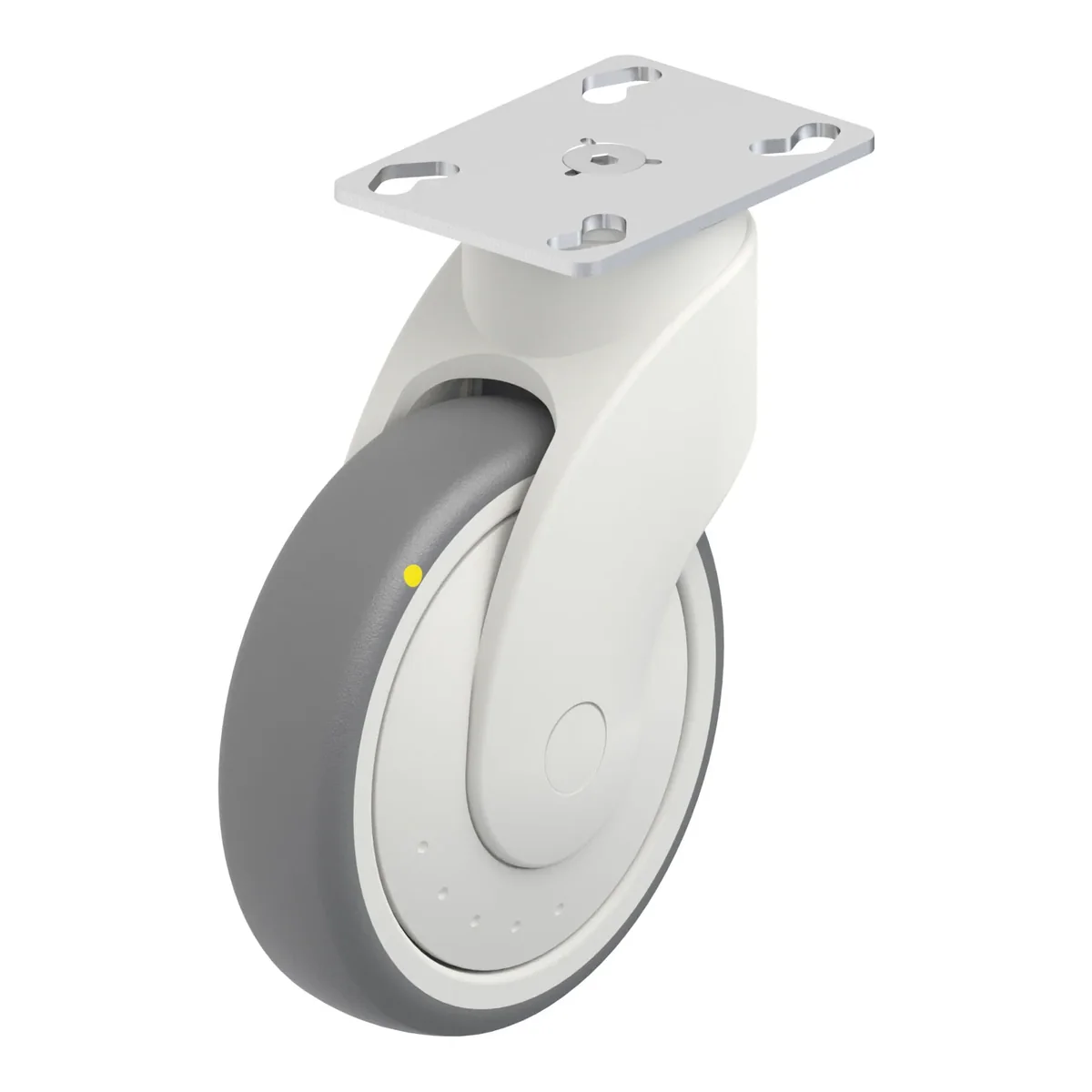

LWKE-TPA 126KF-ELS-P25 – okretni točkić Blickle

Šifra 742121

LWKE-TPA 126KF-ELS-P25

Okretni točkić, Blickle, Made in Germany

Ukratko: LWKE-TPA 126KF-ELS-P25 je okretni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 80 kg pri 4 km/h (statički 200 kg). Ukupna visina je 164 mm. Cijena je 93.49 KM s PDV-om.

Blickle synthetic swivel castor WAVE, colour grey white, with top plate fitting, wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large, electrically conductive , non-marking

93.49 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla742121
EAN4047526065478
Promjer točka125 mm
Širina točka32 mm
Ukupna visina164 mm
Nosivost pri 4 km/h80 kg
Statička nosivost200 kg
Veličina ploče90 x 66 mm
Razmak rupa55.0 x 36.0 mm
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • high-quality nylon 6, impact resistant
  • encapsulated, double-sealed, grooved ball bearing in the swivel head
  • zinc-plated blue-passivated steel top plate fitting (Cr6-free)
  • colour grey white RAL 9002
  • modern, appealing design

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour grey white RAL 9002

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces
