Šifra 678003

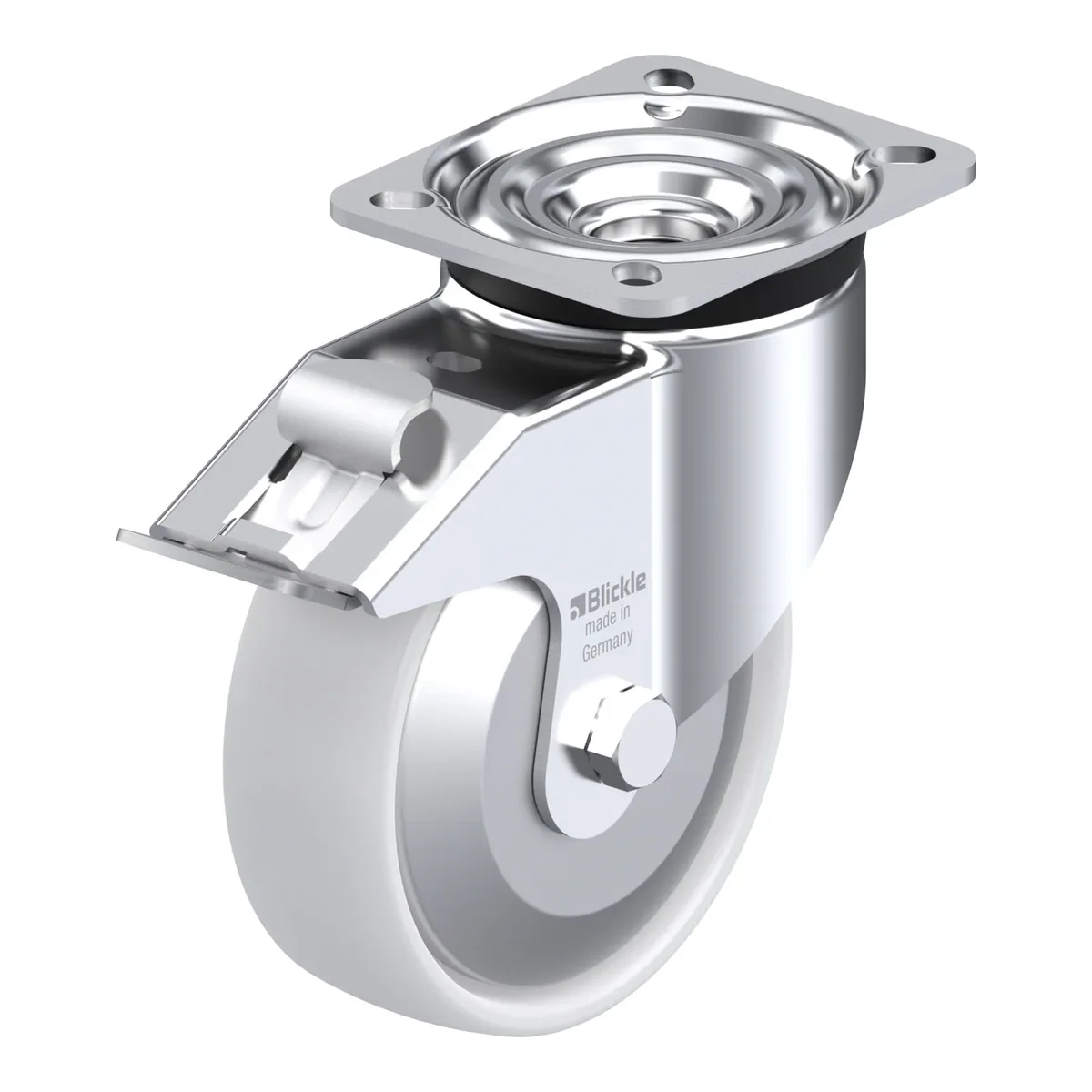

LK-PO 125G-1-FI-FA
Okretni točkić, Blickle, Made in Germany
Ukratko: LK-PO 125G-1-FI-FA je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 155 mm. Cijena je 87.32 KM s PDV-om.
Pressed steel swivel castor, Heavy duty design, with brake system 'stop-fix', nylon wheel, with steel thread guard
87.32 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 678003 |
|---|---|
| EAN | 4047526678005 |
| Promjer točka | 125 mm |
| Širina točka | 40 mm |
| Ukupna visina | 155 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 42 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
