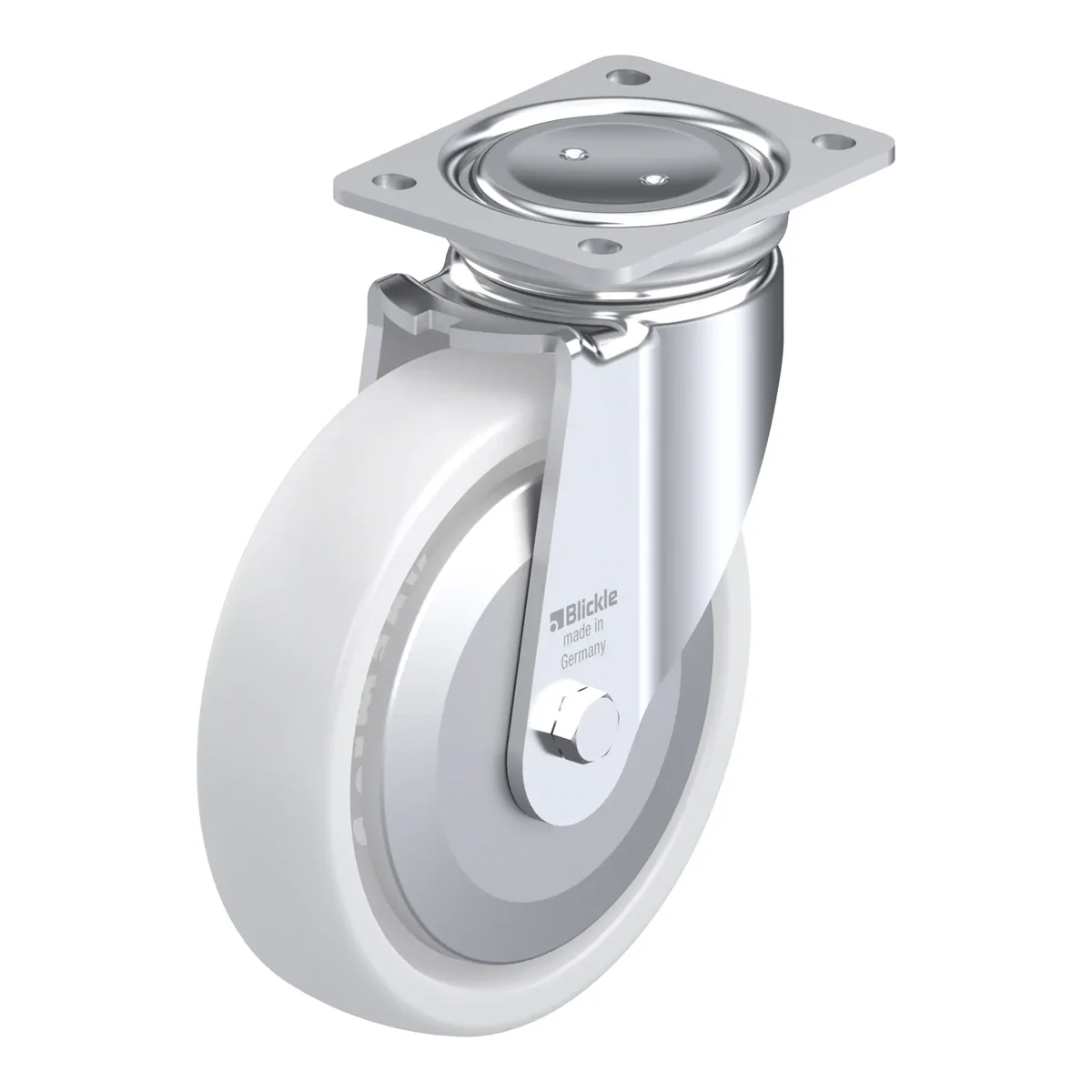

LUH-SPO 201G-FA – okretni točkić Blickle

Šifra 852883

LUH-SPO 201G-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LUH-SPO 201G-FA je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 1000 kg pri 4 km/h (statički 2500 kg). Ukupna visina je 245 mm. Cijena je 250.98 KM s PDV-om.

Pressed steel swivel castor, enclosed design, with top plate fitting, nylon heavy duty wheel, with steel thread guard

250.98 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla852883
EAN4047526198503
Promjer točka200 mm
Širina točka50 mm
Ukupna visina245 mm
Nosivost pri 4 km/h1000 kg
Statička nosivost2500 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset63 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • four-point ball bearing for extremely heavy loads
  • enclosed and sealed swivel head
  • particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
