Šifra 1009240

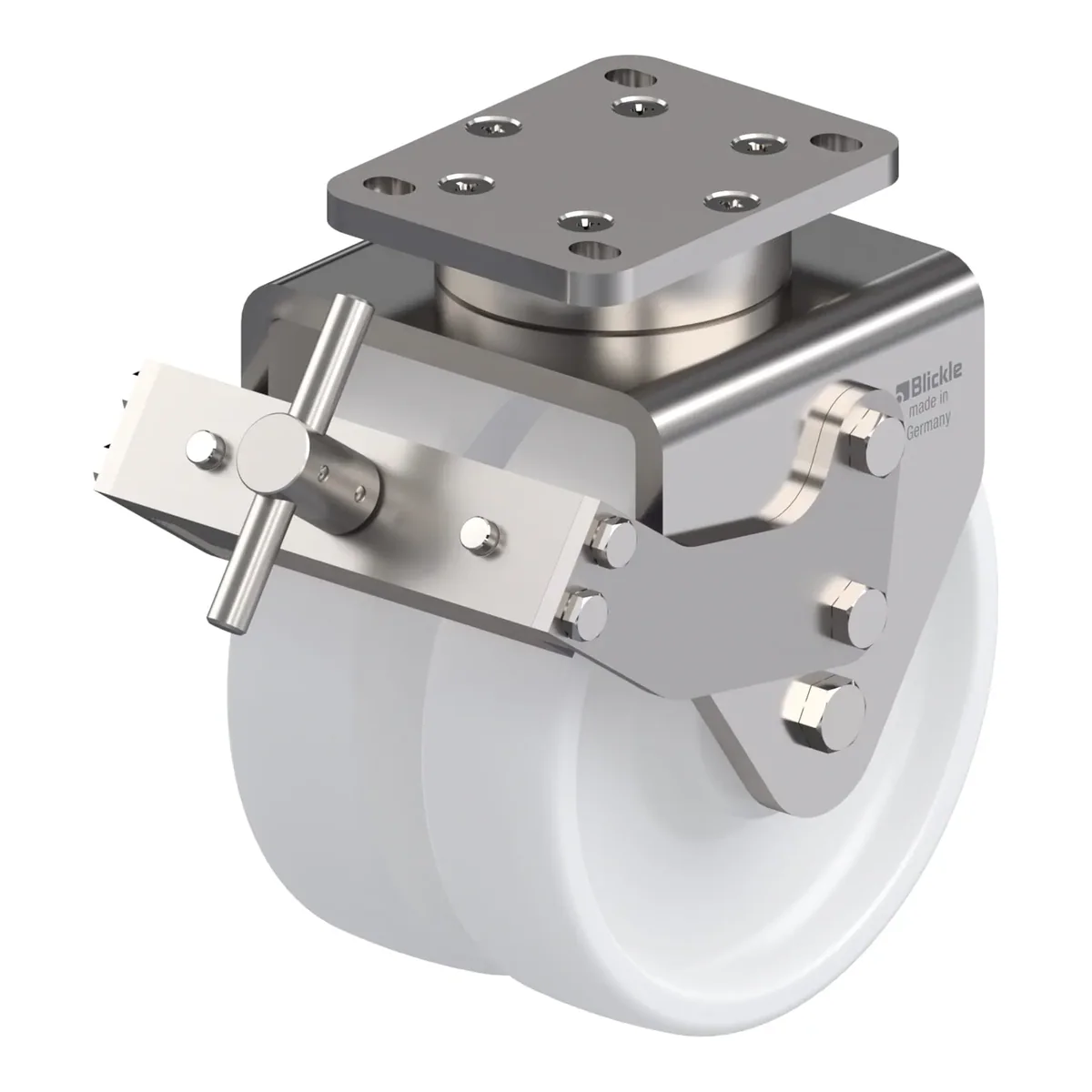

BPDX-SPO 201XK-3-RAH
Dvostruki točkić, Blickle, Made in Germany
Ukratko: BPDX-SPO 201XK-3-RAH je dvostruki točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 1800 kg pri 4 km/h (statički 4500 kg). Ukupna visina je 245 mm. Cijena je na upit.
Stainless steel heavy duty twin wheel fixed caster with top plate fitting, with brake system 'Radstop', nylon heavy duty wheel
Cijena na upit
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 1009240 |
|---|---|
| EAN | 4047526444624 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 245 mm |
| Nosivost pri 4 km/h | 1800 kg |
| Statička nosivost | 4500 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
