Šifra 754195

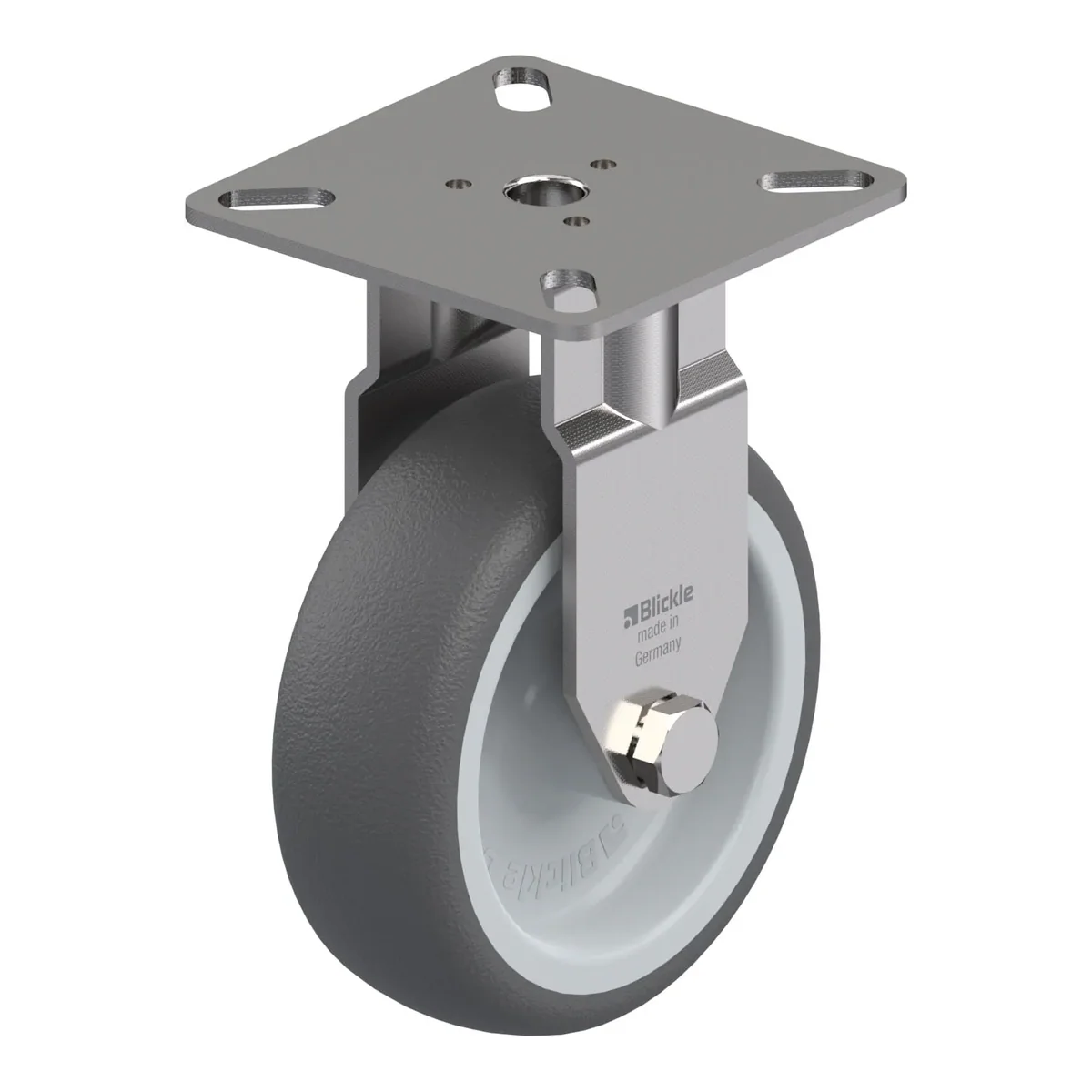

BPXA-PATH 75G
Fiksni točkić, Blickle, Made in Germany
Ukratko: BPXA-PATH 75G je fiksni točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 100 mm. Cijena je 44.06 KM s PDV-om.
Stainless steel light duty fixed castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre
44.06 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754195 |
|---|---|
| EAN | 4047526082659 |
| Promjer točka | 75 mm |
| Širina točka | 25 mm |
| Ukupna visina | 100 mm |
| Nosivost pri 4 km/h | 75 kg |
| Statička nosivost | 187.5 kg |
| Veličina ploče | 60 x 60 mm |
| Razmak rupa | 25.0 x 30.0 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour silver grey
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
