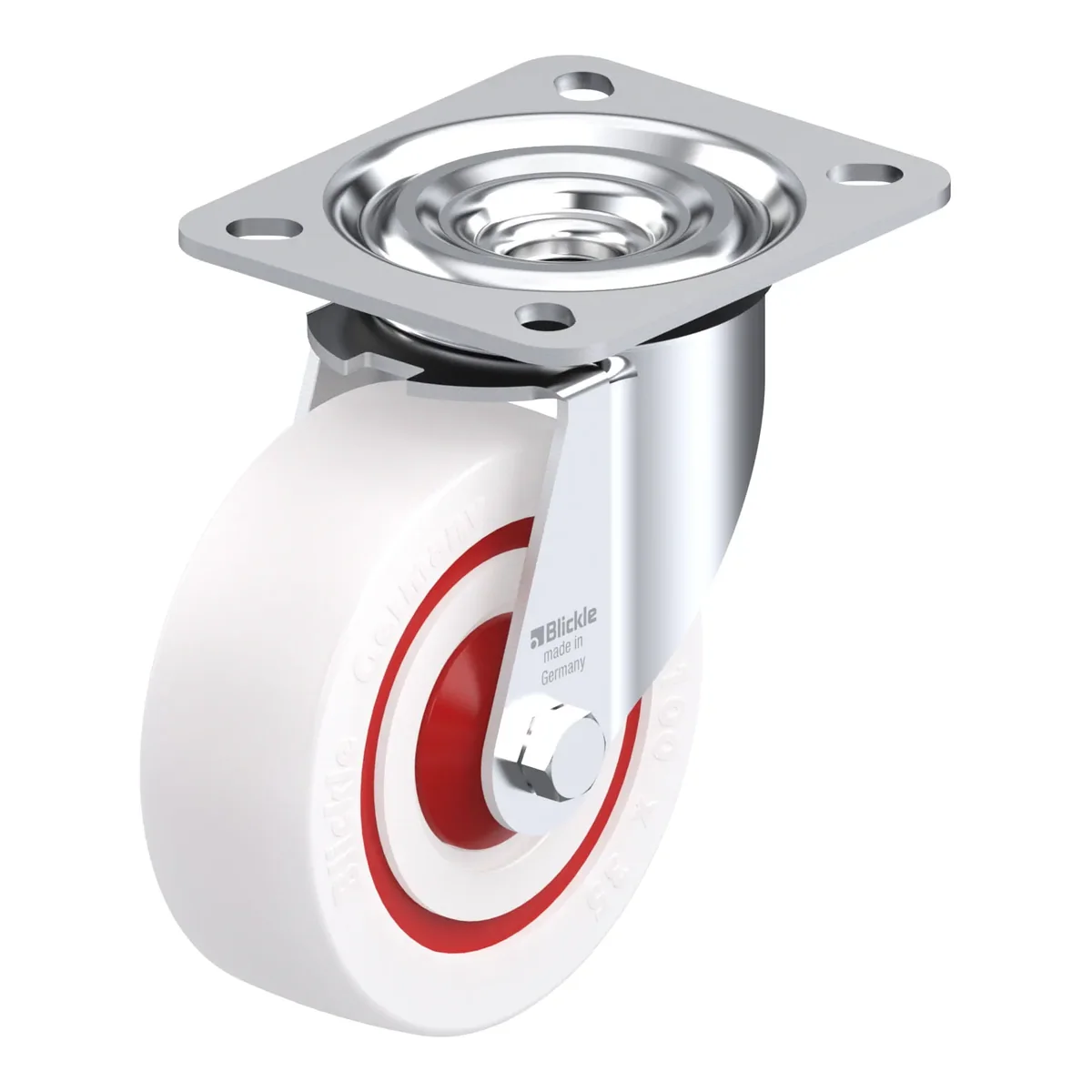

L-POW 100KF – okretni točkić Blickle

Šifra 739731

L-POW 100KF

Okretni točkić, Blickle, Made in Germany

Ukratko: L-POW 100KF je okretni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 125 mm. Cijena je 55.38 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, nylon wheel, with rubber damping ring, low noise, with synthetic thread guard, large

55.38 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla739731
EAN4047526010591
Promjer točka100 mm
Širina točka35 mm
Ukupna visina125 mm
Nosivost pri 4 km/h200 kg
Statička nosivost500 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset36 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour white
  • low-noise operation (-10 decibels) with elastic cushion layer made from elastic solid rubber, colour red

Dodatne karakteristike

  • with synthetic thread guard, large
  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
