Šifra 36624
LKX-SPO 150G

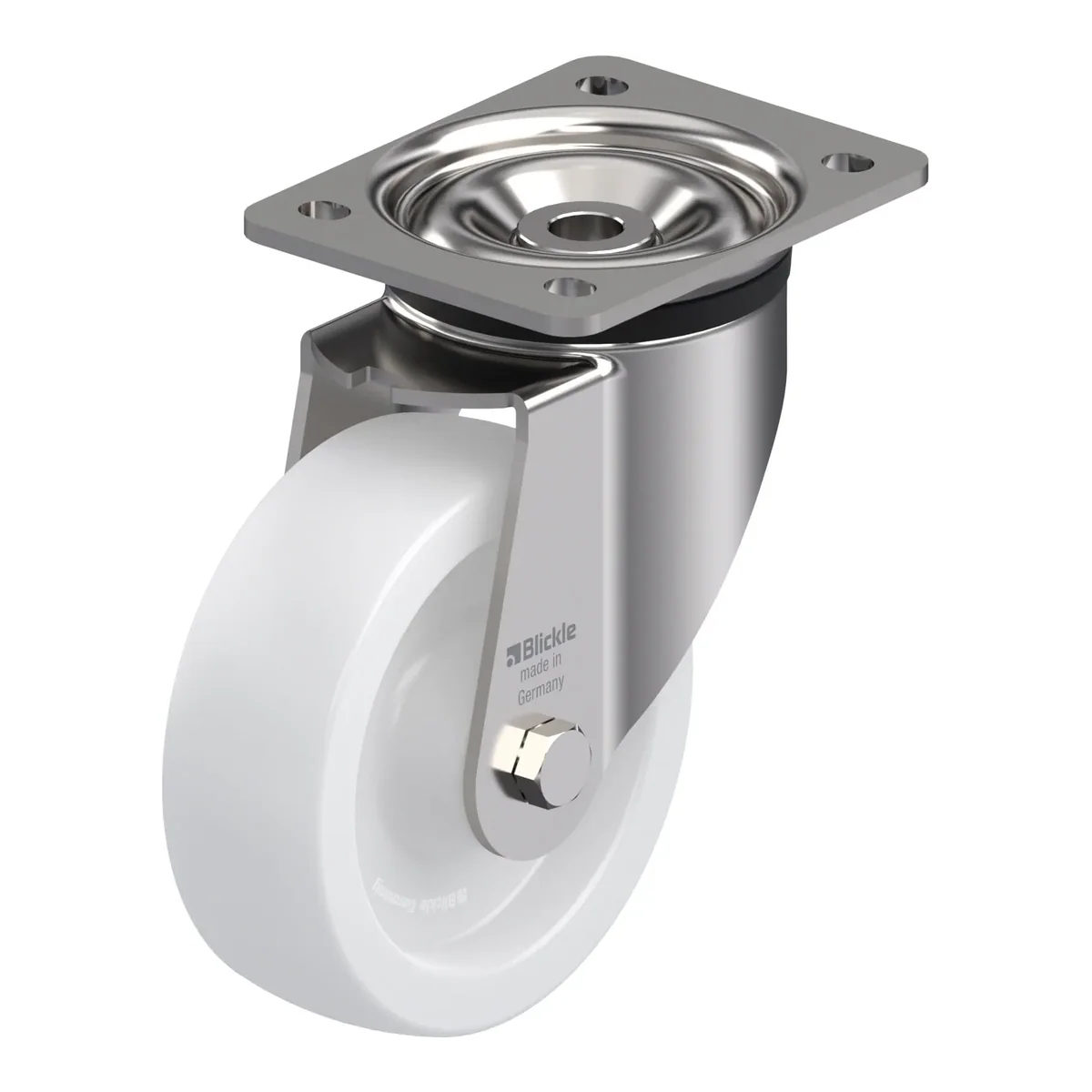

Okretni točkić, Blickle, Made in Germany
Ukratko: LKX-SPO 150G je okretni točkić Blickle promjera 150 mm, širine 50 mm, nosivosti 800 kg pri 4 km/h (statički 2000 kg). Ukupna visina je 197 mm. Cijena je 363.73 KM s PDV-om.
Stainless steel heavy duty swivel castor, with top plate fitting, nylon heavy duty wheel
363.73 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 36624 |
|---|---|
| EAN | 4047526036621 |
| Promjer točka | 150 mm |
| Širina točka | 50 mm |
| Ukupna visina | 197 mm |
| Nosivost pri 4 km/h | 800 kg |
| Statička nosivost | 2000 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 63 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
