Šifra 753566

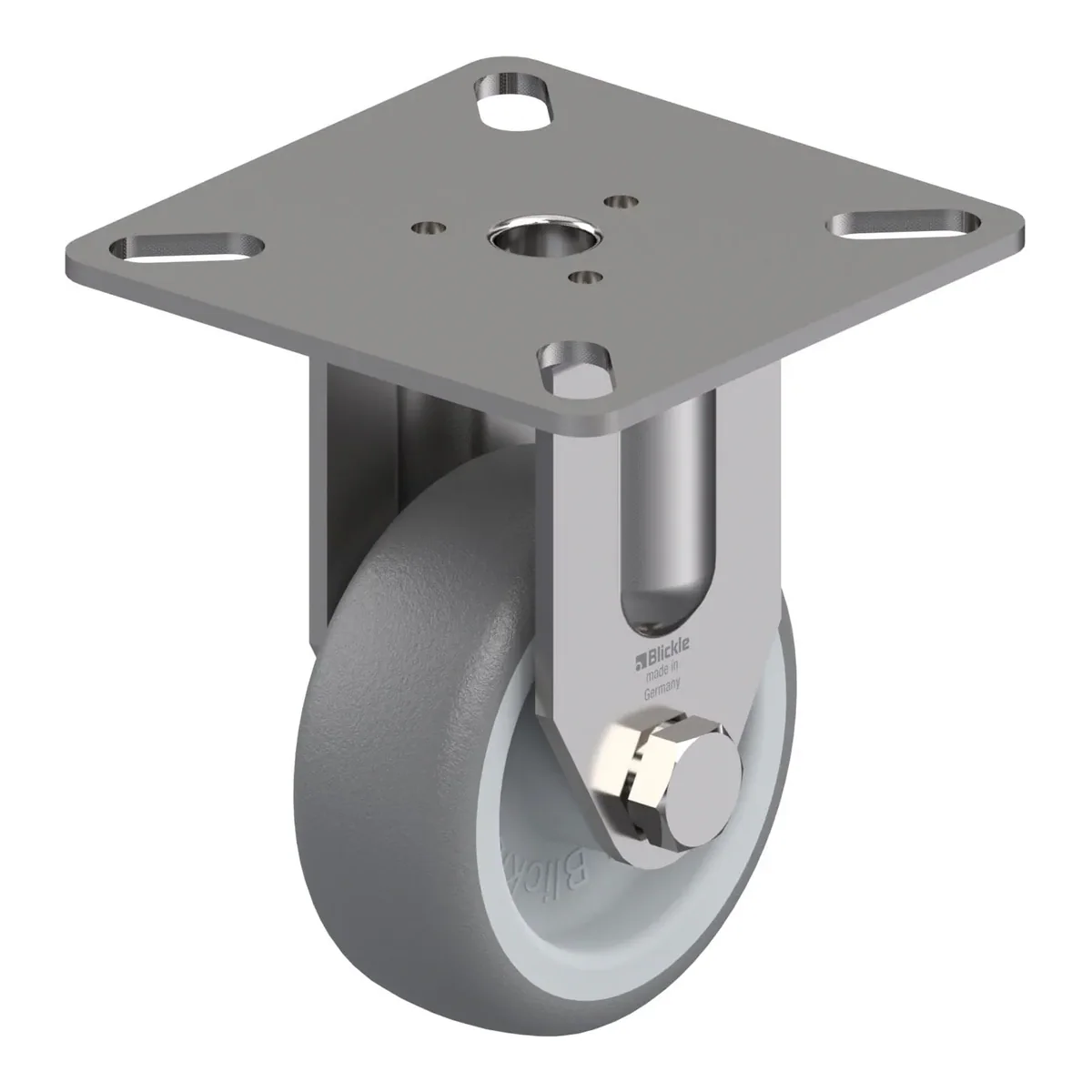

BPXA-TPA 50G
Fiksni točkić, Blickle, Made in Germany
Ukratko: BPXA-TPA 50G je fiksni točkić Blickle promjera 50 mm, širine 19 mm, nosivosti 50 kg pri 4 km/h (statički 125 kg). Ukupna visina je 71 mm. Cijena je 33.17 KM s PDV-om.
Stainless steel light duty fixed castor, with top plate fitting, wheel, with thermoplastic rubber tread, with polypropylene wheel centre
33.17 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 753566 |
|---|---|
| EAN | 4047526111793 |
| Promjer točka | 50 mm |
| Širina točka | 19 mm |
| Ukupna visina | 71 mm |
| Nosivost pri 4 km/h | 50 kg |
| Statička nosivost | 125 kg |
| Veličina ploče | 60 x 60 mm |
| Razmak rupa | 25.0 x 30.0 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
Točak
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour silver grey
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
