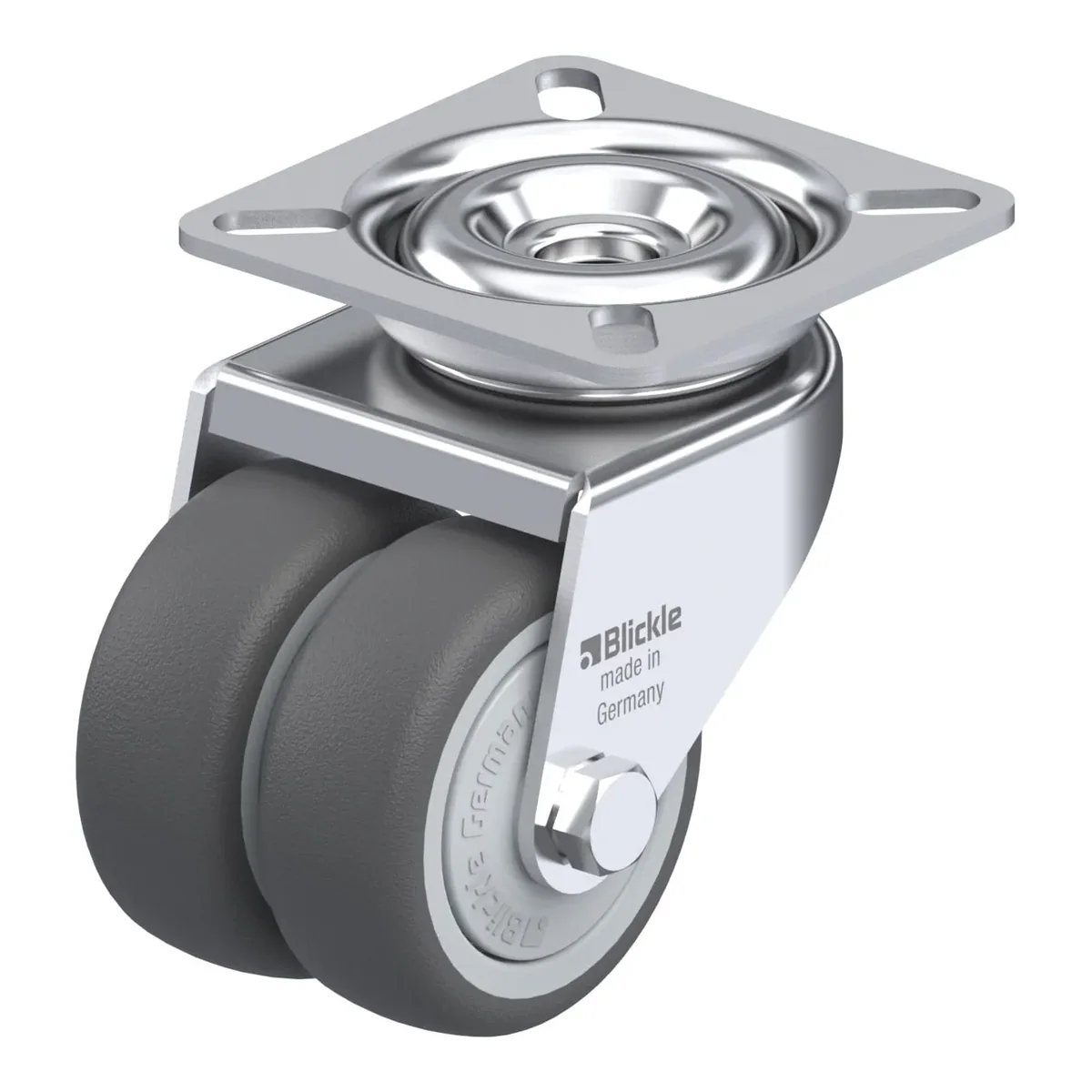

LDA-PATH 50KF – dvostruki točkić Blickle

Šifra 757033

LDA-PATH 50KF

Dvostruki točkić, Blickle, Made in Germany

Ukratko: LDA-PATH 50KF je dvostruki točkić Blickle promjera 50 mm, širine 19 mm, nosivosti 80 kg pri 4 km/h (statički 200 kg). Ukupna visina je 71 mm. Cijena je 28.72 KM s PDV-om.

Light duty twin wheel swivel castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large

28.72 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla757033
EAN4047526117658
Promjer točka50 mm
Širina točka19 mm
Ukupna visina71 mm
Nosivost pri 4 km/h80 kg
Statička nosivost200 kg
Veličina ploče60 x 60 mm
Razmak rupa25.0 x 30.0 mm
Offset31 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • pressed swivel head

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
