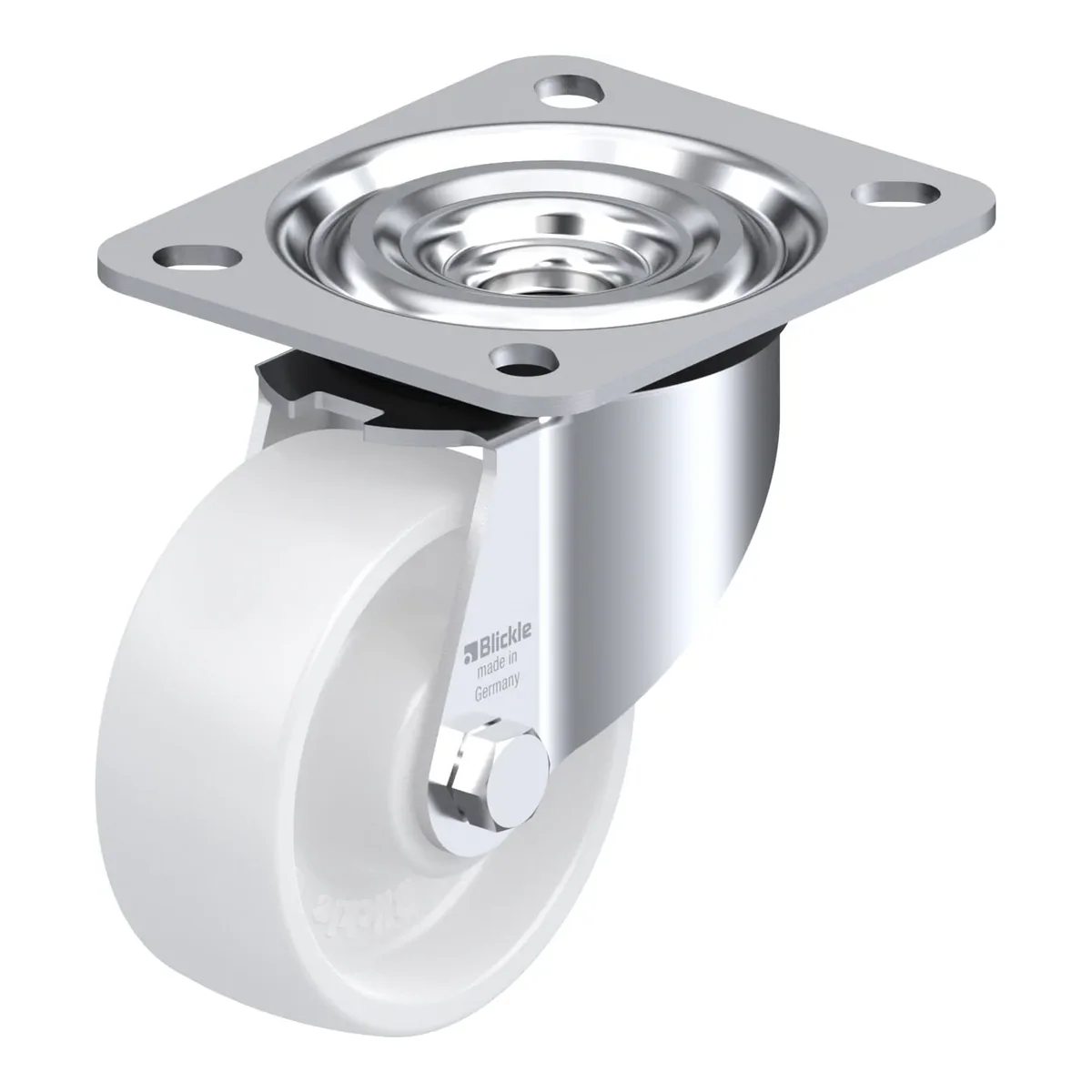

L-PPN 80R – okretni točkić Blickle

Šifra 762833

L-PPN 80R

Okretni točkić, Blickle, Made in Germany

Ukratko: L-PPN 80R je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 102 mm. Cijena je 31.94 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, polypropylene wheel

31.94 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla762833
EAN4047526098780
Promjer točka80 mm
Širina točka32 mm
Ukupna visina102 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset38 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • high-quality polypropylene, impact resistant, hardness 60 Shore D, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
