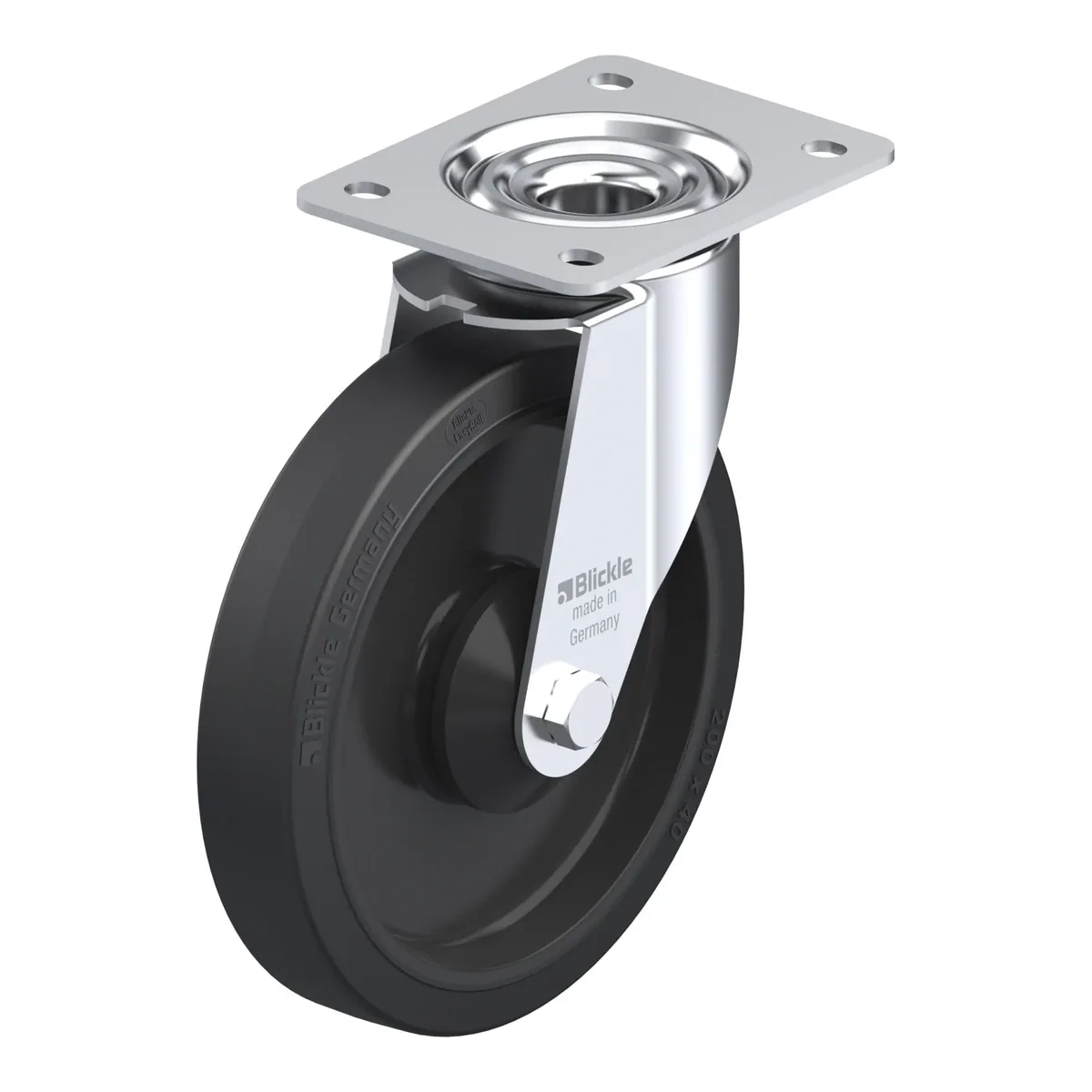

LE-POEV 201KA – okretni točkić Blickle

Šifra 754472

LE-POEV 201KA

Okretni točkić, Blickle, Made in Germany

Ukratko: LE-POEV 201KA je okretni točkić Blickle promjera 200 mm, širine 40 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 235 mm. Cijena je 103.04 KM s PDV-om.

Pressed steel swivel castor, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard, small

103.04 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla754472
EAN4047526080532
Promjer točka200 mm
Širina točka40 mm
Ukupna visina235 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset54 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • with synthetic thread guard, small
  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
