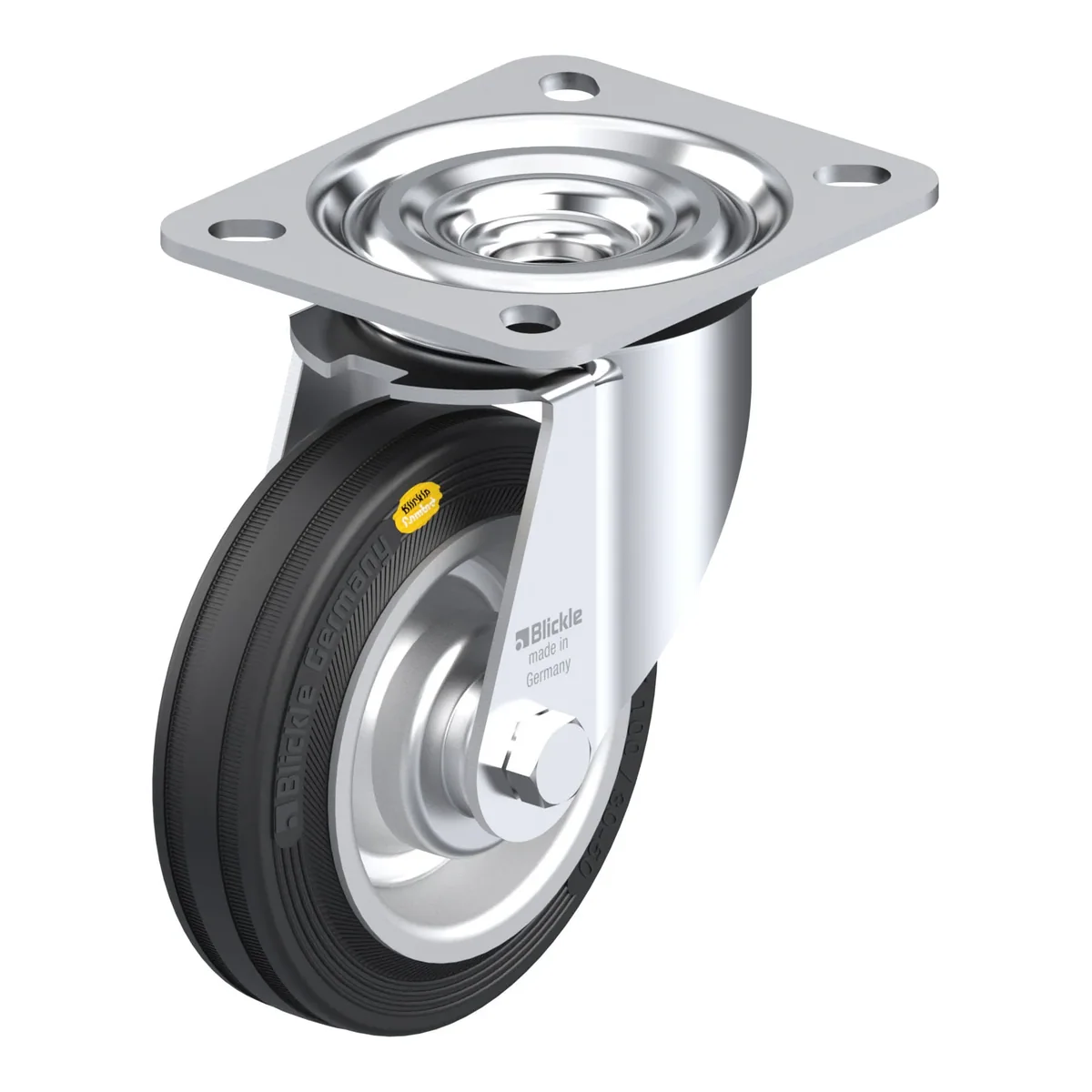

L-RD 100R – okretni točkić Blickle

Šifra 42473

L-RD 100R

Okretni točkić, Blickle, Made in Germany

Ukratko: L-RD 100R je okretni točkić Blickle promjera 100 mm, širine 30 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 125 mm. Cijena je 49.15 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, wheel, with 'Blickle Comfort' two-component solid rubber tyres, with pressed steel rim

49.15 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla42473
EAN4047526042479
Promjer točka100 mm
Širina točka30 mm
Ukupna visina125 mm
Nosivost pri 4 km/h100 kg
Statička nosivost250 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset36 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: two-component solid rubber "Blickle Comfort", hardness 65 Shore A, colour black
  • rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
