Šifra 941844
LE-POEV 60KF

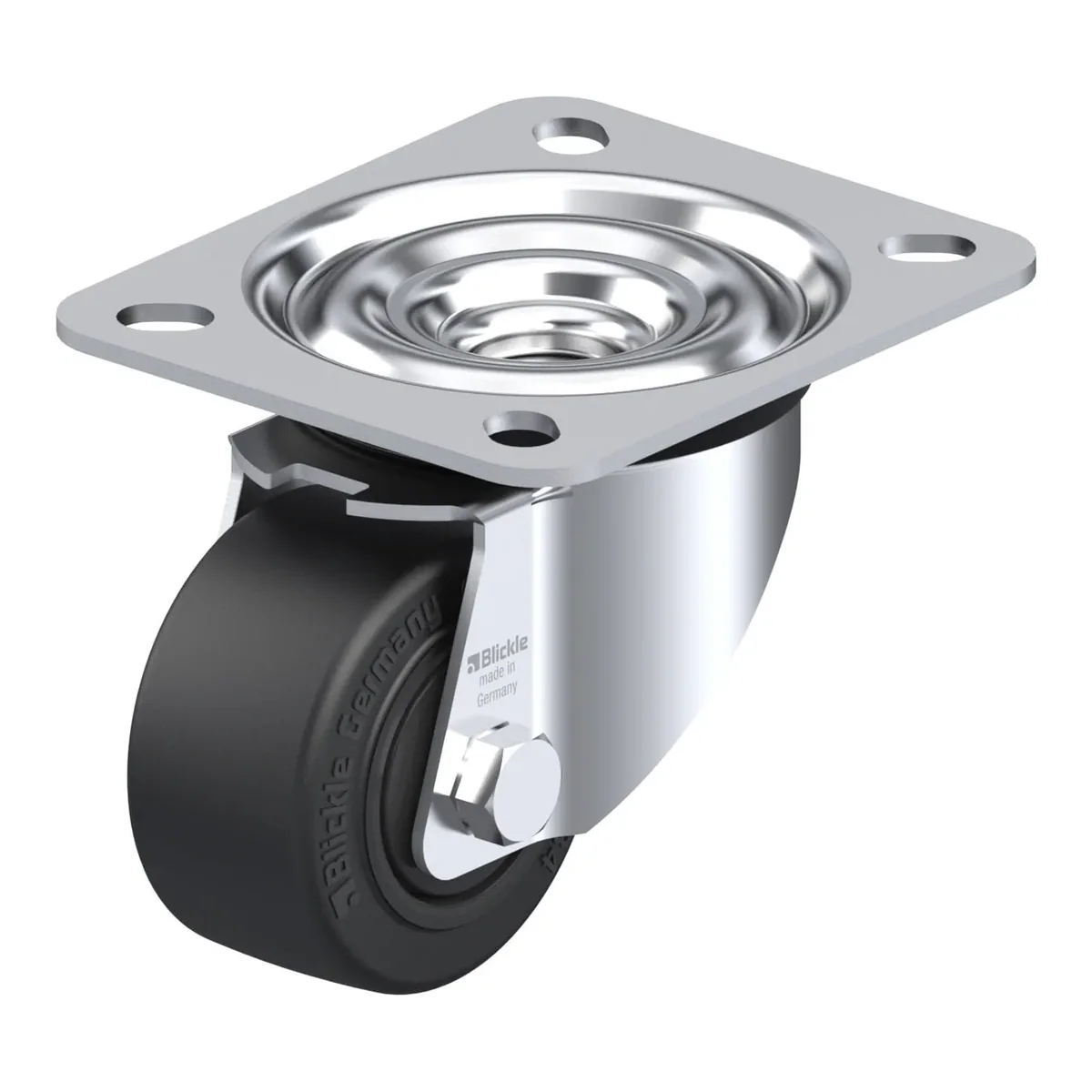

Okretni točkić, Blickle, Made in Germany
Ukratko: LE-POEV 60KF je okretni točkić Blickle promjera 60 mm, širine 34 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 80 mm. Cijena je 41.99 KM s PDV-om.
Pressed steel swivel castor, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard, large
41.99 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 941844 |
|---|---|
| EAN | 4047526361020 |
| Promjer točka | 60 mm |
| Širina točka | 34 mm |
| Ukupna visina | 80 mm |
| Nosivost pri 4 km/h | 120 kg |
| Statička nosivost | 300 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 35 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: high-quality nylon 6, impact resistant, colour black
Dodatne karakteristike
- with synthetic thread guard, large
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
