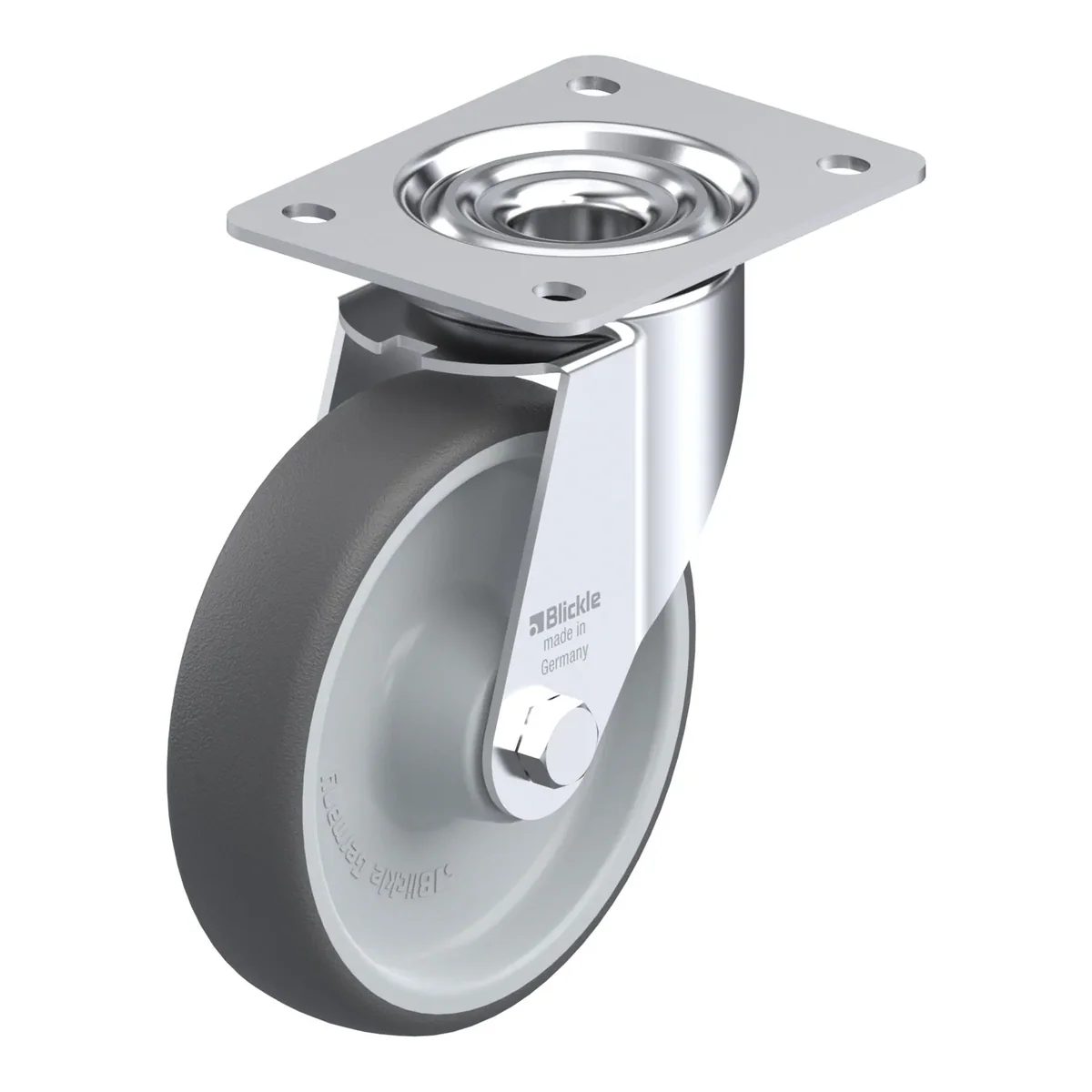

LE-PATH 160R – okretni točkić Blickle

Šifra 846983

LE-PATH 160R

Okretni točkić, Blickle, Made in Germany

Ukratko: LE-PATH 160R je okretni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 195 mm. Cijena je 88.28 KM s PDV-om.

Pressed steel swivel castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre

88.28 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla846983
EAN4047526126148
Promjer točka160 mm
Širina točka40 mm
Ukupna visina195 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset54 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
