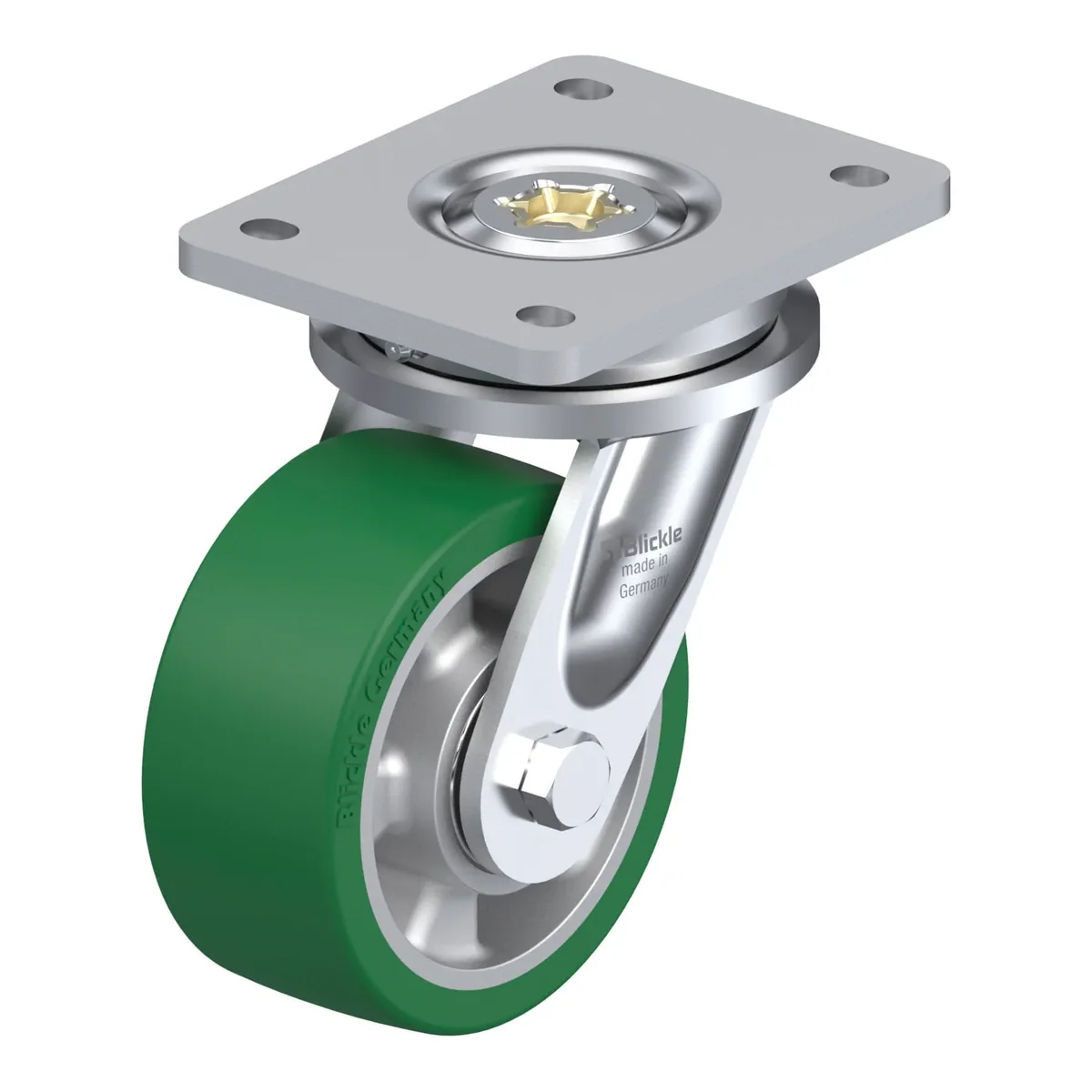

LO-ALST 127K – okretni točkić Blickle

Šifra 754921

LO-ALST 127K

Okretni točkić, Blickle, Made in Germany

Ukratko: LO-ALST 127K je okretni točkić Blickle promjera 125 mm, širine 54 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 170 mm. Cijena je 279.99 KM s PDV-om.

Heavy duty welded steel swivel castor, heavy duty wheel, with Blickle Softhane® polyurethane tread, with aluminium wheel centre

279.99 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla754921
EAN4047526077631
Promjer točka125 mm
Širina točka54 mm
Ukupna visina170 mm
Nosivost pri 4 km/h450 kg
Statička nosivost1125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset50 mm
Ne ostavlja tragoveda

Nosač

  • solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • four specially-shaped, hardened bearing seatsfor additional strength
  • bolted and secured welded central kingpin, extremely strong
  • swivel head seal with labyrinth design
  • grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
