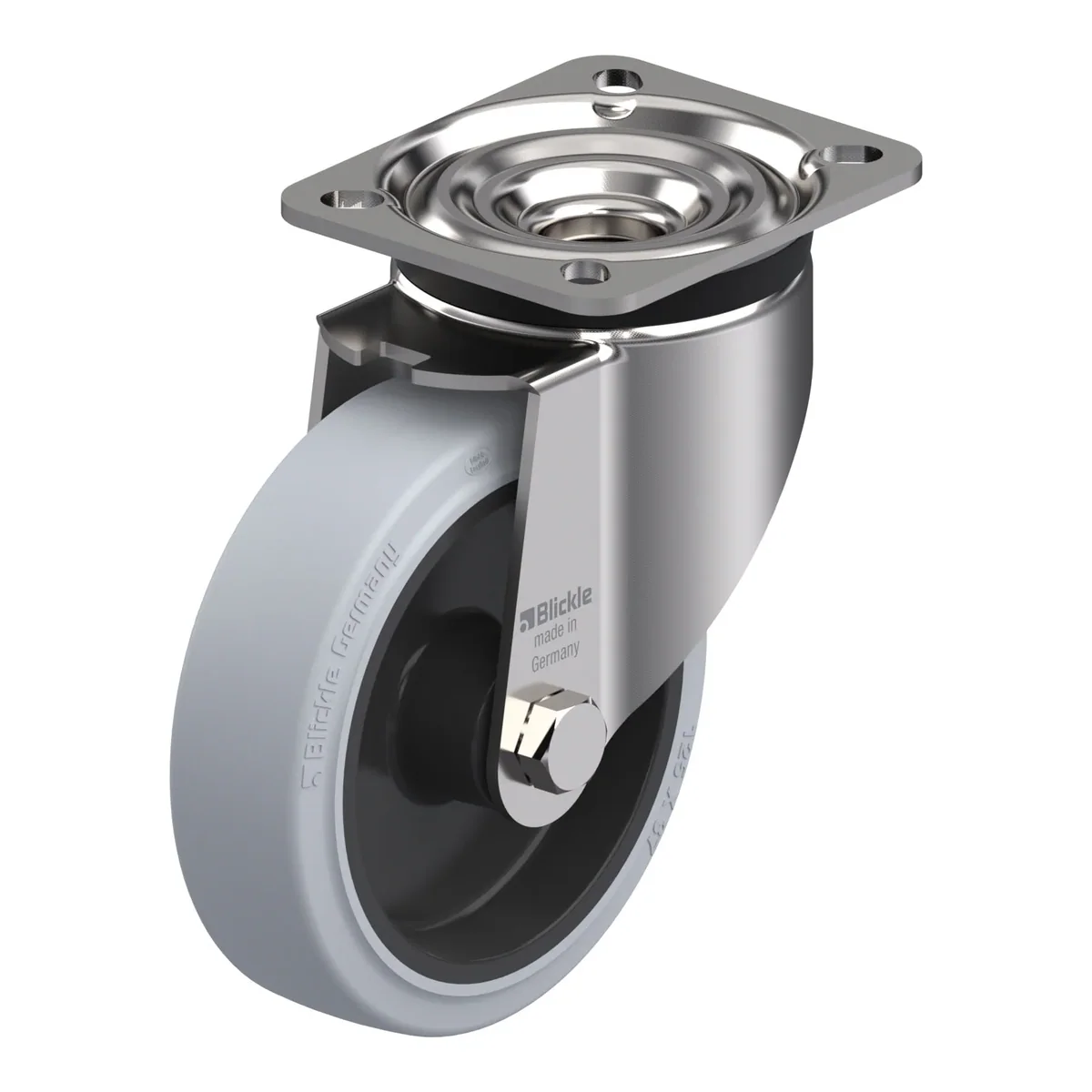

LKX-POEV 125XR-1-SG – okretni točkić Blickle

Šifra 758436

LKX-POEV 125XR-1-SG

Okretni točkić, Blickle, Made in Germany

Ukratko: LKX-POEV 125XR-1-SG je okretni točkić Blickle promjera 125 mm, širine 37 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 155 mm. Cijena je 187.13 KM s PDV-om.

Stainless steel heavy duty swivel castor, with top plate fitting, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, non-marking, grey

187.13 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla758436
EAN4047526099640
Promjer točka125 mm
Širina točka37 mm
Ukupna visina155 mm
Nosivost pri 4 km/h250 kg
Statička nosivost625 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset48 mm
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour grey, non-marking
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
