Šifra 587550
BOD-ALEV 125K

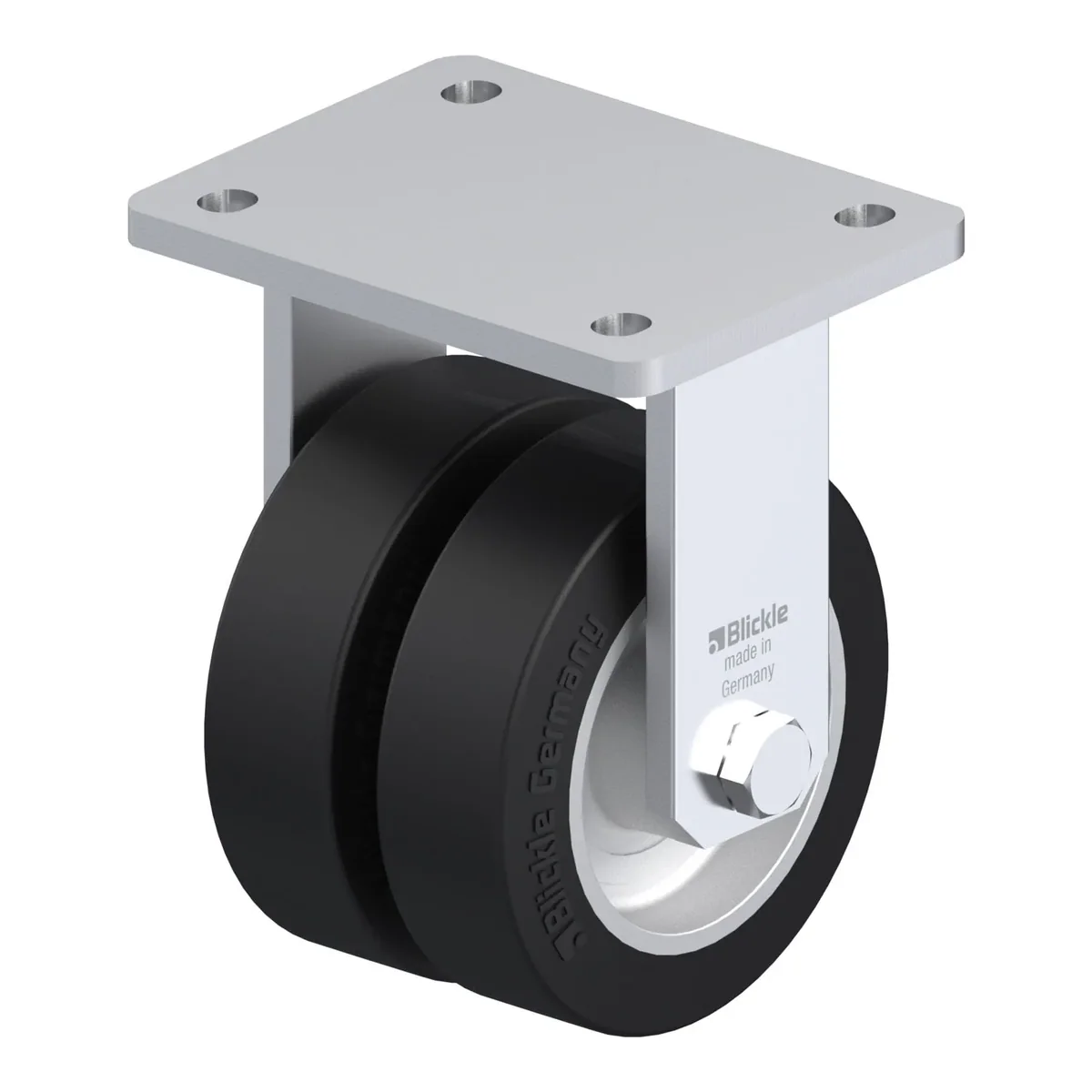

Dvostruki točkić, Blickle, Made in Germany
Ukratko: BOD-ALEV 125K je dvostruki točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 500 kg pri 4 km/h (statički 1250 kg). Ukupna visina je 170 mm. Cijena je 243.51 KM s PDV-om.
Heavy duty welded steel twin wheel fixed castor, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre
243.51 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 587550 |
|---|---|
| EAN | 4047526587550 |
| Promjer točka | 125 mm |
| Širina točka | 40 mm |
| Ukupna visina | 170 mm |
| Nosivost pri 4 km/h | 500 kg |
| Statička nosivost | 1250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: die-cast aluminium
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
