Šifra 759138

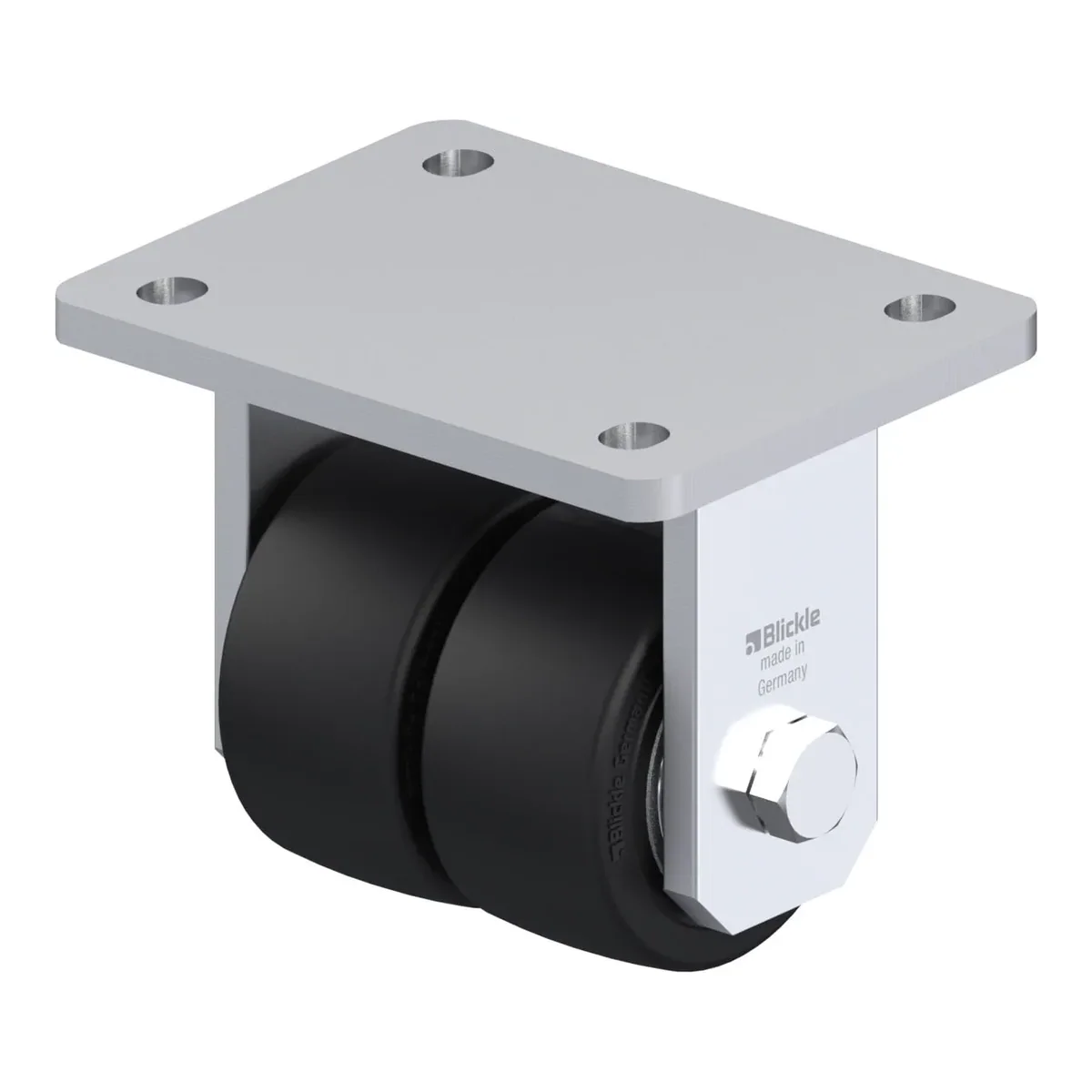

BOD-SE 80K
Dvostruki točkić, Blickle, Made in Germany
Ukratko: BOD-SE 80K je dvostruki točkić Blickle promjera 80 mm, širine 45 mm, nosivosti 360 kg pri 4 km/h (statički 900 kg). Ukupna visina je 115 mm. Cijena je 228.21 KM s PDV-om.
Heavy duty welded steel twin wheel fixed castor, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre
228.21 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 759138 |
|---|---|
| EAN | 4047526118518 |
| Promjer točka | 80 mm |
| Širina točka | 45 mm |
| Ukupna visina | 115 mm |
| Nosivost pri 4 km/h | 360 kg |
| Statička nosivost | 900 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: high-quality nylon 6, impact resistant, colour black
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
