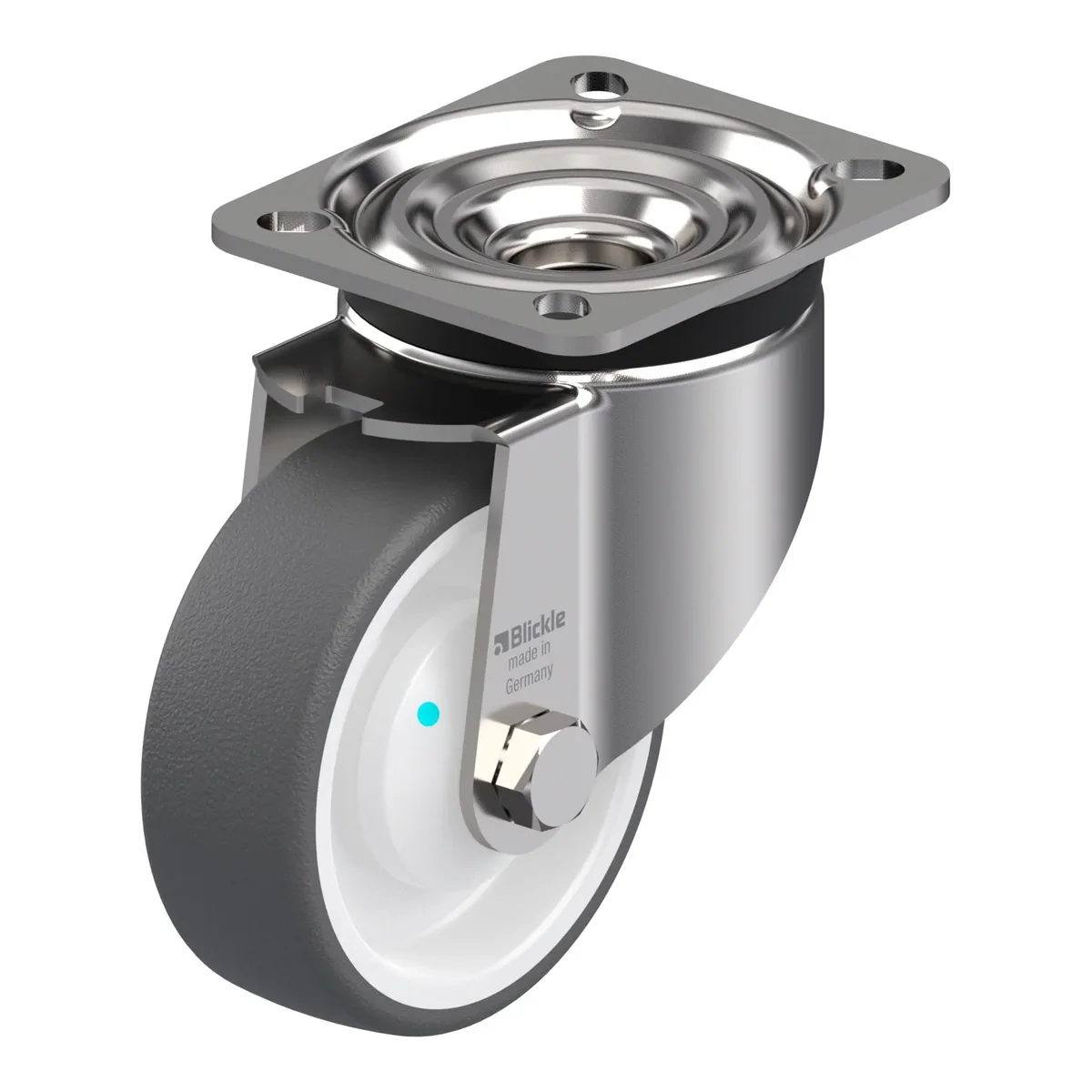

LKX-POTH 100KAD-1 – okretni točkić Blickle

Šifra 761557

LKX-POTH 100KAD-1

Okretni točkić, Blickle, Made in Germany

Ukratko: LKX-POTH 100KAD-1 je okretni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 130 mm. Cijena je 174.60 KM s PDV-om.

Stainless steel heavy duty swivel castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with synthetic thread guard, small, with additiona ls ball bearing seals

174.60 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla761557
EAN4047526120399
Promjer točka100 mm
Širina točka35 mm
Ukupna visina130 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset45 mm
Ne ostavlja tragoveda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • small thread guard, with additional, ball bearing seal
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
