Šifra 761510
BOD-SPO 80K

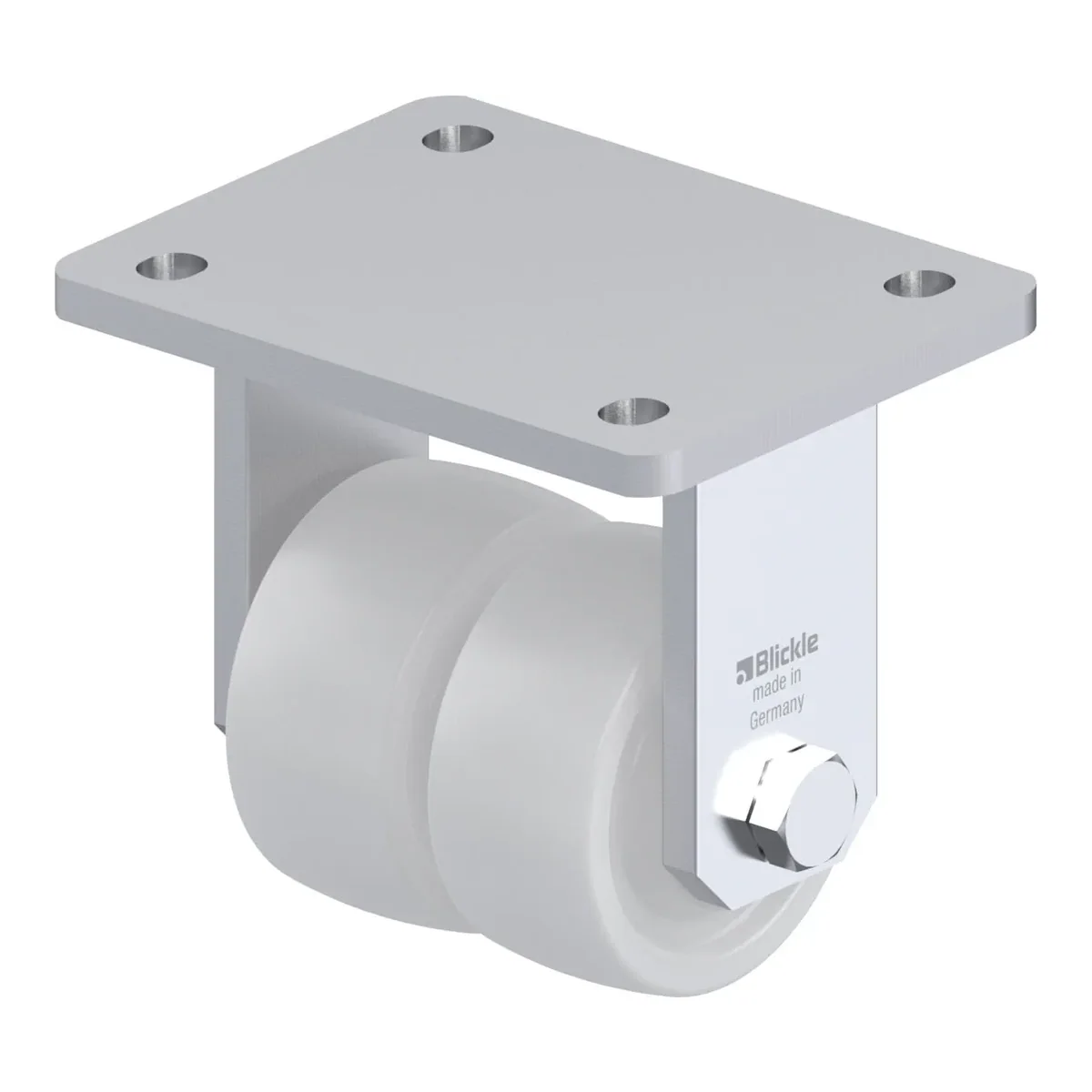

Dvostruki točkić, Blickle, Made in Germany
Ukratko: BOD-SPO 80K je dvostruki točkić Blickle promjera 80 mm, širine 37 mm, nosivosti 630 kg pri 4 km/h (statički 1575 kg). Ukupna visina je 125 mm. Cijena je 208.96 KM s PDV-om.
Heavy duty welded steel twin wheel fixed castor, nylon heavy duty wheel
208.96 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 761510 |
|---|---|
| EAN | 4047526119911 |
| Promjer točka | 80 mm |
| Širina točka | 37 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 630 kg |
| Statička nosivost | 1575 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Ne ostavlja tragove | da |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
