Šifra 594028
LE-PO 60G

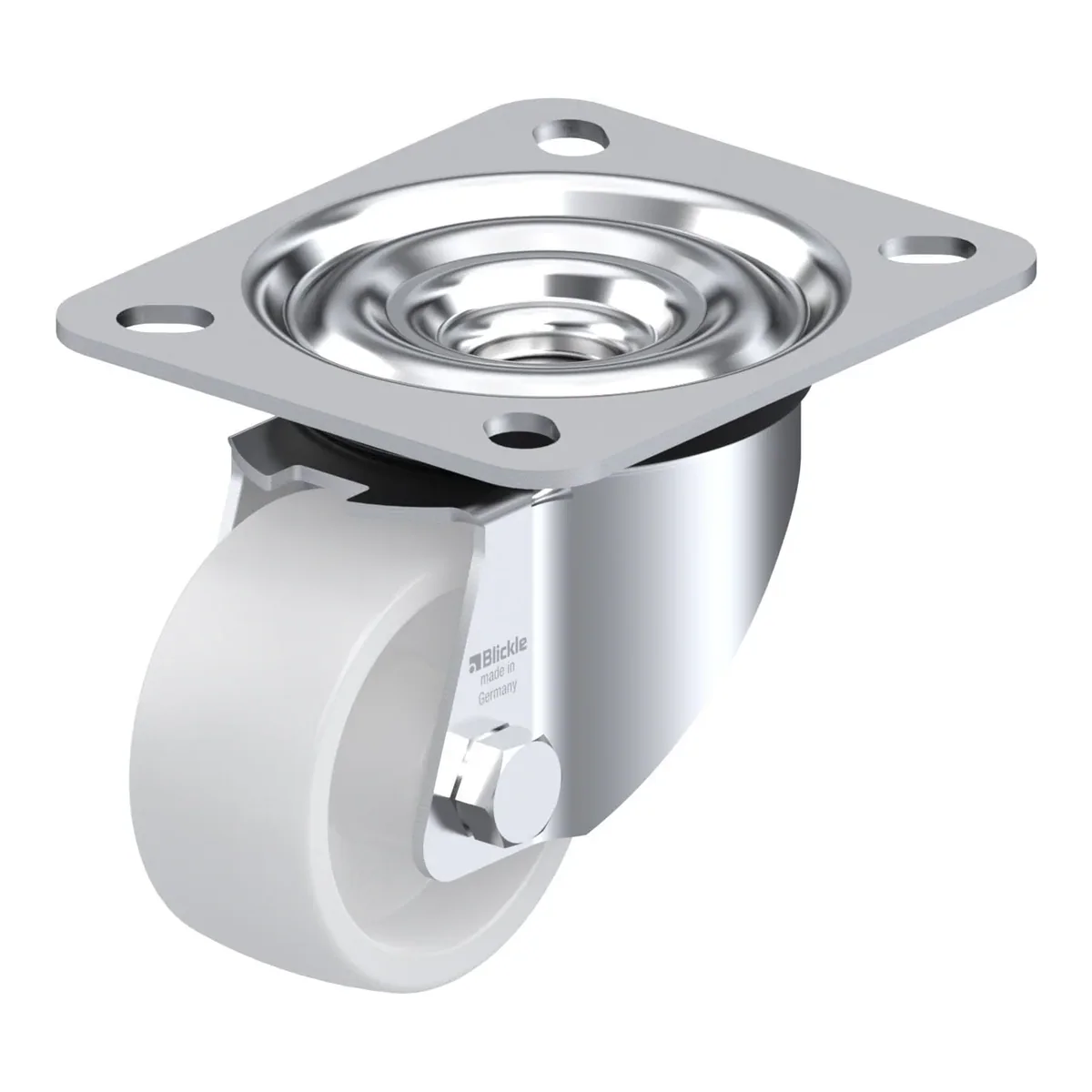

Okretni točkić, Blickle, Made in Germany
Ukratko: LE-PO 60G je okretni točkić Blickle promjera 60 mm, širine 29 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 80 mm. Cijena je 24.32 KM s PDV-om.
Pressed steel swivel castor, with top plate fitting, nylon wheel
24.32 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 594028 |
|---|---|
| EAN | 4047526594022 |
| Promjer točka | 60 mm |
| Širina točka | 29 mm |
| Ukupna visina | 80 mm |
| Nosivost pri 4 km/h | 150 kg |
| Statička nosivost | 375 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 35 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
