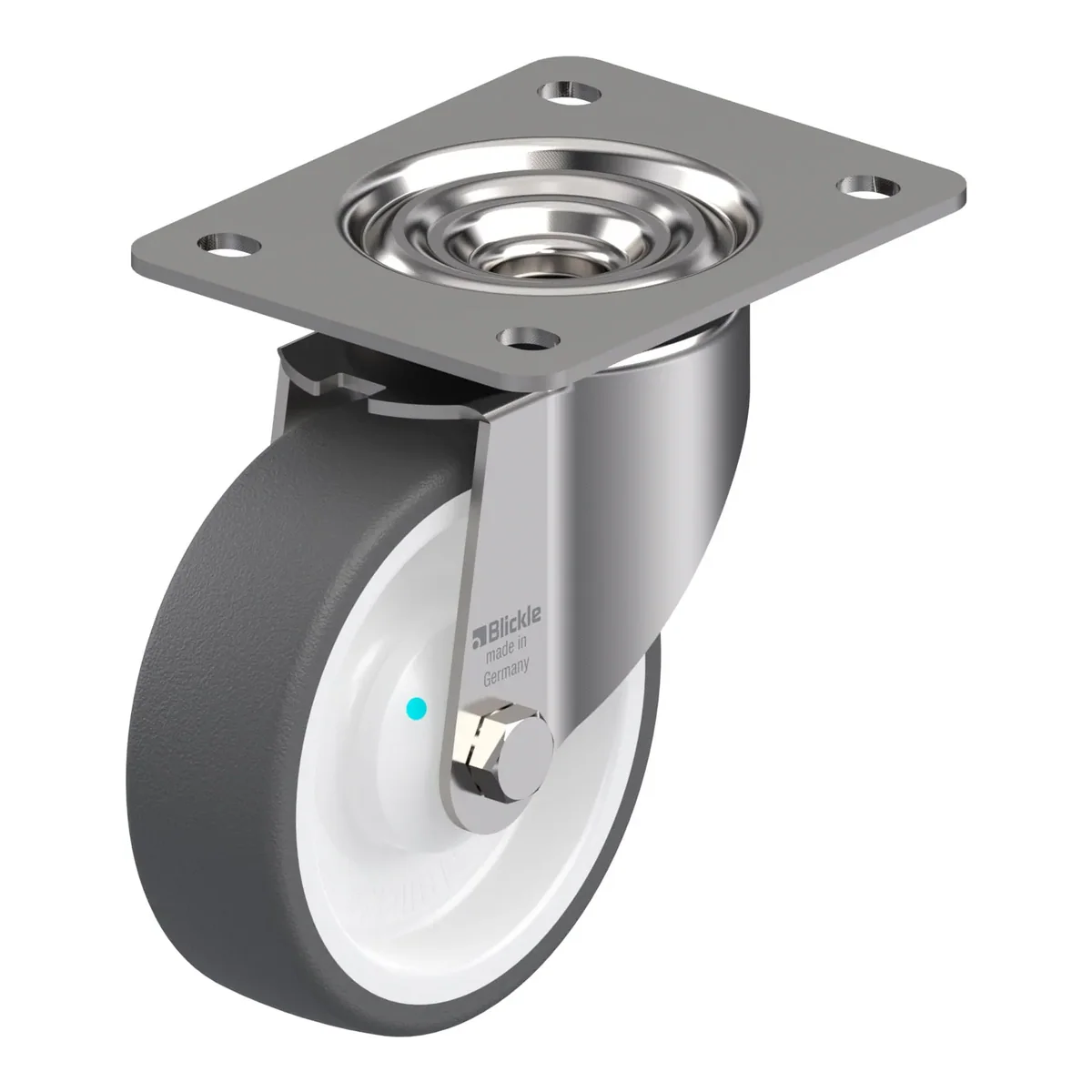

LKX-POTH 125KAD-3 – okretni točkić Blickle

Šifra 761563

LKX-POTH 125KAD-3

Okretni točkić, Blickle, Made in Germany

Ukratko: LKX-POTH 125KAD-3 je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 155 mm. Cijena je 199.16 KM s PDV-om.

Stainless steel heavy duty swivel castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with synthetic thread guard, small, with additiona ls ball bearing seals

199.16 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla761563
EAN4047526102630
Promjer točka125 mm
Širina točka40 mm
Ukupna visina155 mm
Nosivost pri 4 km/h350 kg
Statička nosivost875 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset48 mm
Ne ostavlja tragoveda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • small thread guard, with additional, ball bearing seal
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
