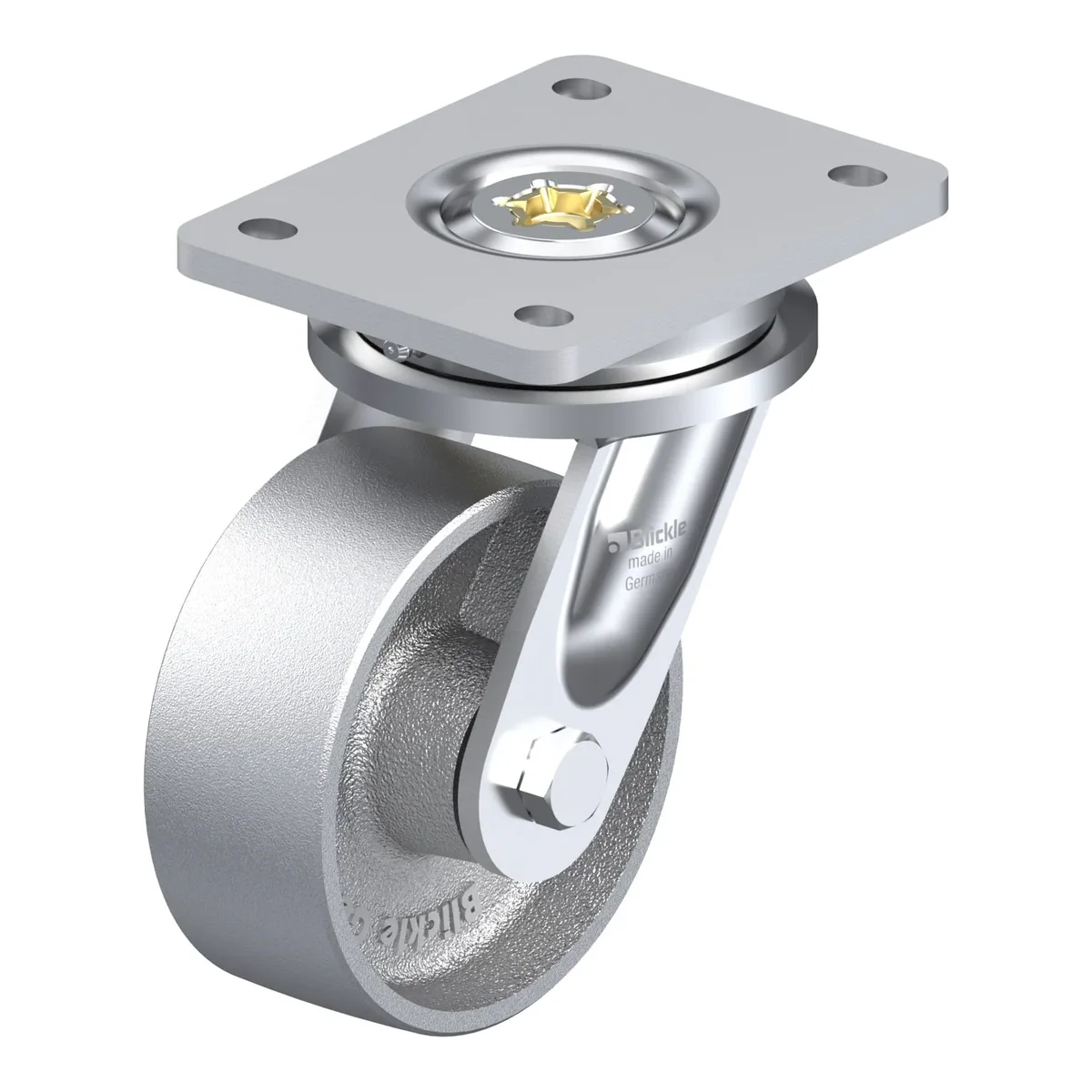

LO-G 127G – okretni točkić Blickle

Šifra 609701

LO-G 127G

Okretni točkić, Blickle, Made in Germany

Ukratko: LO-G 127G je okretni točkić Blickle promjera 125 mm, širine 50 mm, nosivosti 750 kg pri 4 km/h (statički 1875 kg). Ukupna visina je 170 mm. Cijena je 228.48 KM s PDV-om.

Heavy duty welded steel swivel castor, cast iron wheel

228.48 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla609701
EAN4047526609702
Promjer točka125 mm
Širina točka50 mm
Ukupna visina170 mm
Nosivost pri 4 km/h750 kg
Statička nosivost1875 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset50 mm
ESD zaštitada

Nosač

  • solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • four specially-shaped, hardened bearing seatsfor additional strength
  • bolted and secured welded central kingpin, extremely strong
  • swivel head seal with labyrinth design
  • grease nipple

Točak

  • rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver

Dodatne karakteristike

  • chemical resistance to many aggressive substances
  • consider the surface pressure on sensitive floors due to high point loads
  • provide adequate lubrication on a regular basis for plain bore version
  • to be lubricated according to the application temperature
