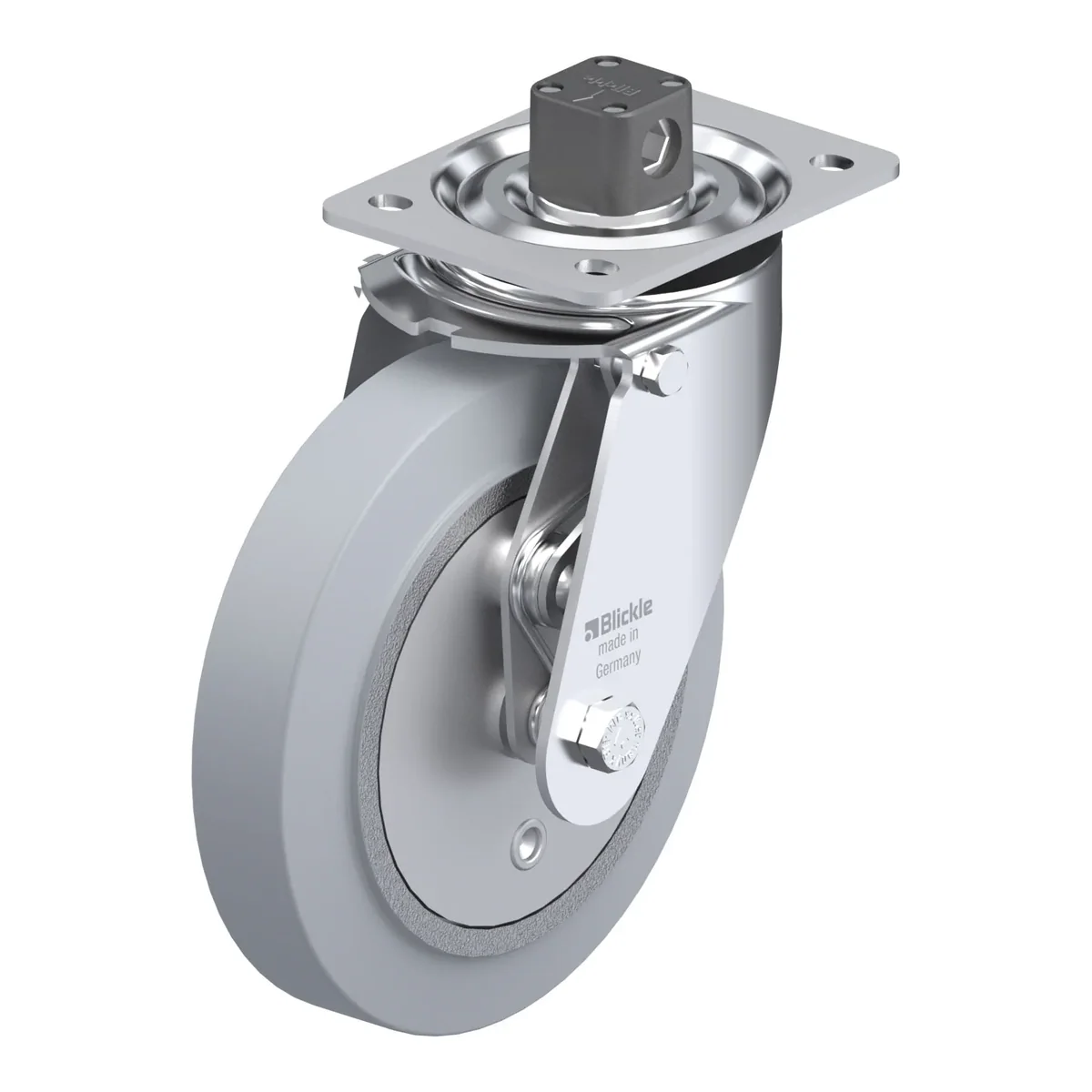

L-GEV 200K-TM13-SG – okretni točkić Blickle

Šifra 911310

L-GEV 200K-TM13-SG

Okretni točkić, Blickle, Made in Germany

Ukratko: L-GEV 200K-TM13-SG je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 235 mm. Cijena je 607.94 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, with dead man’s brake, heavy duty wheel, with elastic solid rubber tyre, with cast iron wheel centre, non-marking, grey

607.94 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla911310
EAN4047526347109
Promjer točka200 mm
Širina točka50 mm
Ukupna visina235 mm
Nosivost pri 4 km/h400 kg
Statička nosivost1000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset65 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber in smooth rolling quality, hardness 65 Shore A, colour grey
  • wheel centre: rugged grey cast iron, lacquered, colour silver

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
  • wheel centre is approximately 4 mm wider than the specified wheel width
