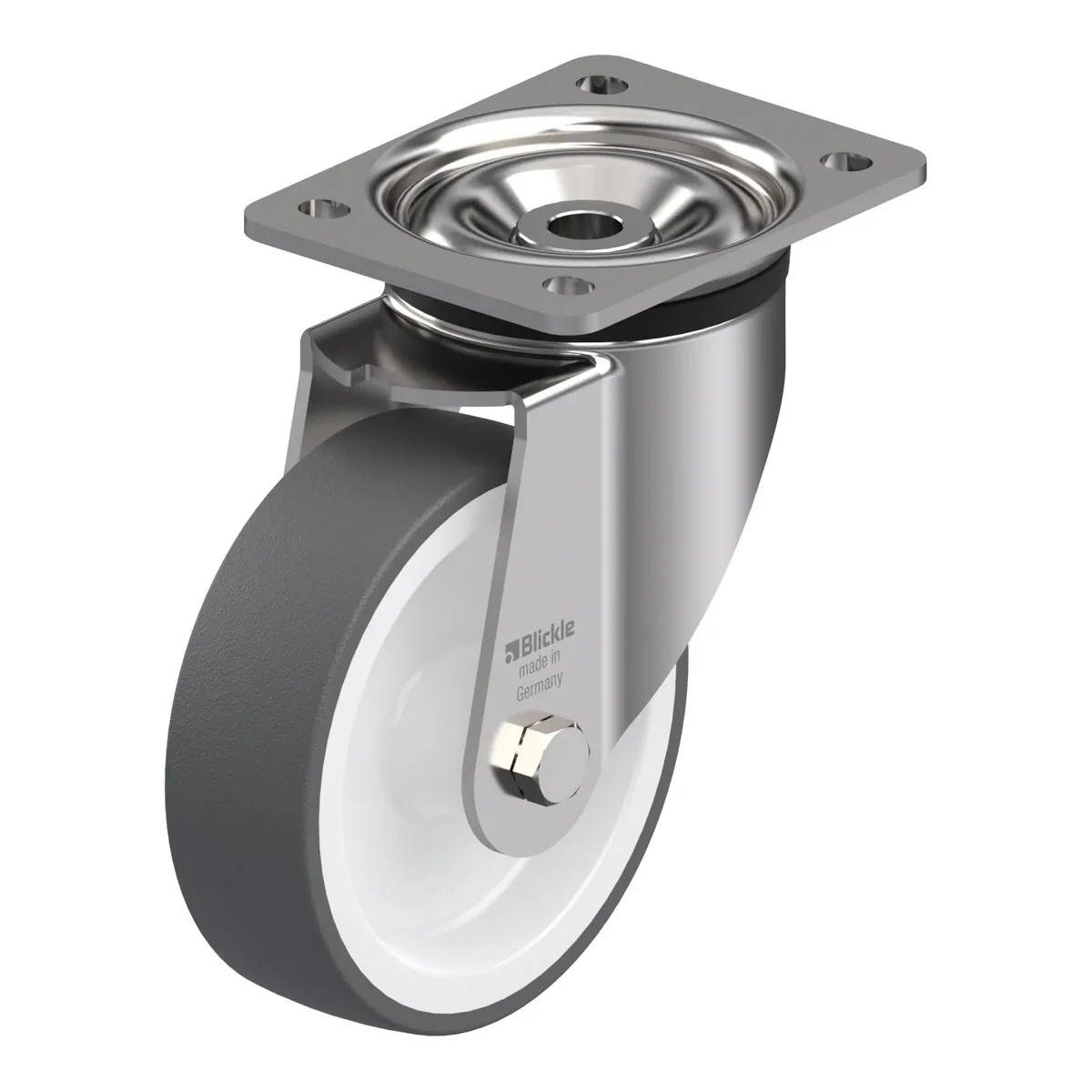

LKX-POTH 150G – okretni točkić Blickle

Šifra 49791

LKX-POTH 150G

Okretni točkić, Blickle, Made in Germany

Ukratko: LKX-POTH 150G je okretni točkić Blickle promjera 150 mm, širine 45 mm, nosivosti 500 kg pri 4 km/h (statički 1250 kg). Ukupna visina je 197 mm. Radi na temperaturi od -25 °C do 70 °C. Cijena je 353.19 KM s PDV-om.

Stainless steel heavy duty swivel castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre

353.19 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla49791
EAN4047526049799
Promjer točka150 mm
Širina točka45 mm
Ukupna visina197 mm
Nosivost pri 4 km/h500 kg
Statička nosivost1250 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset63 mm
Tvrdoća gazišta94 Shore A
Radna temperatura-25 °C do 70 °C
Težina2.4 kg
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
