Šifra 578633

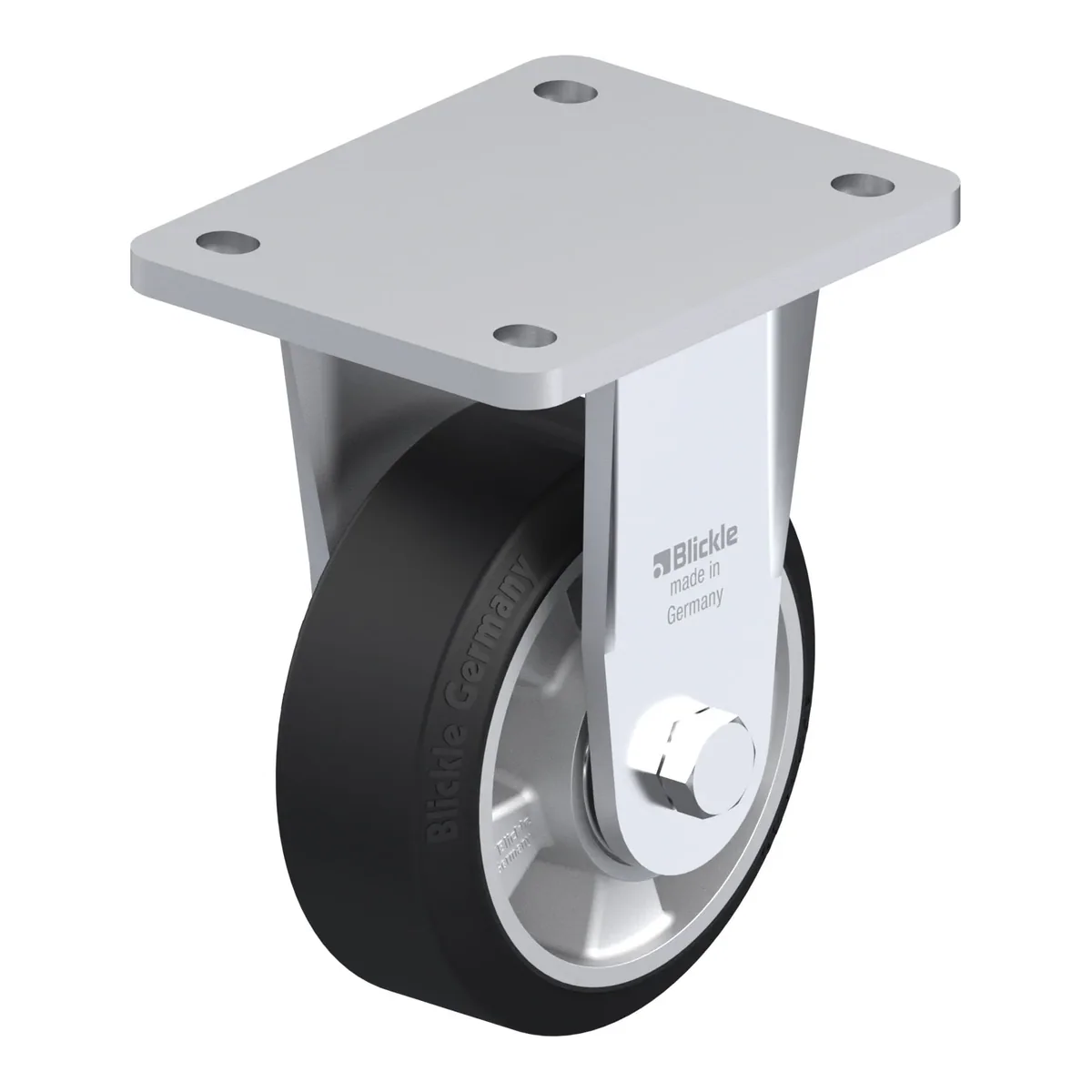

BO-ALEV 127K
Fiksni točkić, Blickle, Made in Germany
Ukratko: BO-ALEV 127K je fiksni točkić Blickle promjera 125 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 170 mm. Radi na temperaturi od -20 °C do 80 °C. Cijena je 151.96 KM s PDV-om.
Heavy duty welded steel fixed castor, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre
151.96 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 578633 |
|---|---|
| EAN | 4047526578633 |
| Promjer točka | 125 mm |
| Širina točka | 50 mm |
| Ukupna visina | 170 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Tvrdoća gazišta | 65 Shore A |
| Radna temperatura | -20 °C do 80 °C |
| Težina | 2.6 kg |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: die-cast aluminium
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
