Šifra 911314
L-GEV 200K-TTM13-SG
Okretni točkić, Blickle, Made in Germany
Ukratko: L-GEV 200K-TTM13-SG je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 235 mm. Cijena je 682.41 KM s PDV-om.

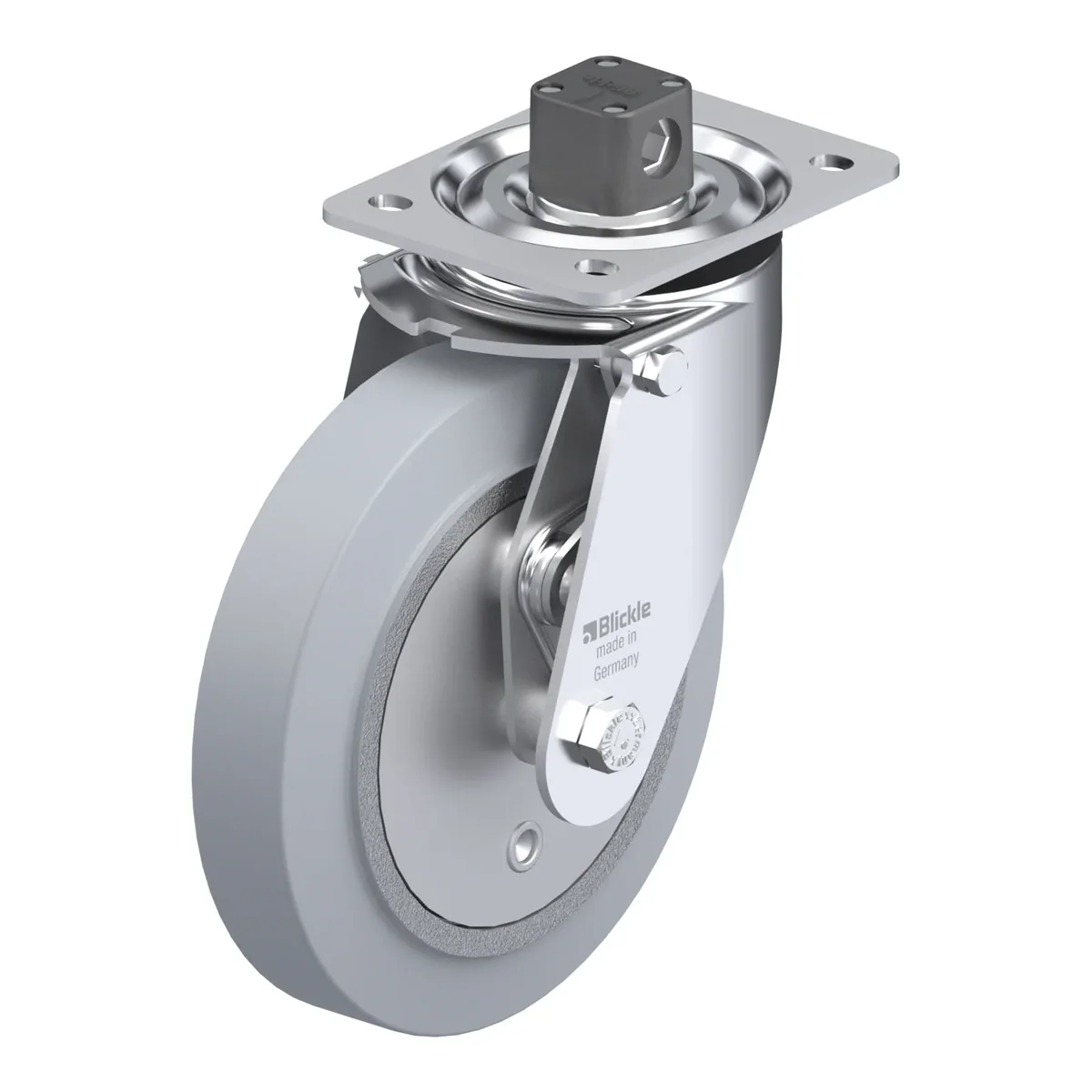

Pressed steel swivel castor, medium duty design, with top plate fitting, with dead man’s brake and swivel head brake, heavy duty wheel, with elastic solid rubber tyre, with cast iron wheel centre, non-marking, grey
682.41 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 911314 |
|---|---|
| EAN | 4047526347192 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 235 mm |
| Nosivost pri 4 km/h | 400 kg |
| Statička nosivost | 1000 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 65 mm |
| Ne ostavlja tragove | da |
Točak
- tyre: high-quality elastic solid rubber in smooth rolling quality, hardness 65 Shore A, colour grey
- wheel centre: rugged grey cast iron, lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- wheel centre is approximately 4 mm wider than the specified wheel width
