Šifra 49213

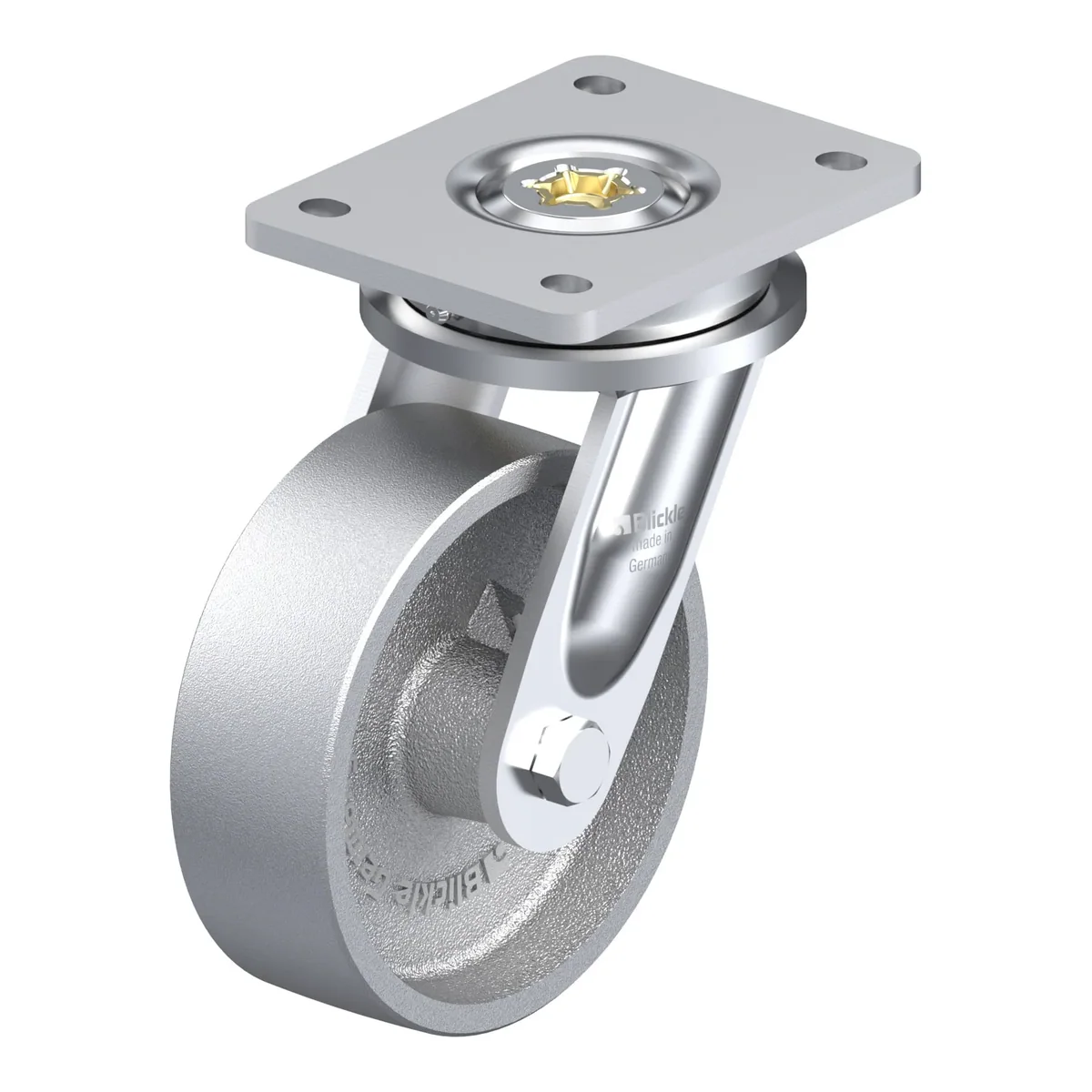

LO-G 150G
Okretni točkić, Blickle, Made in Germany
Ukratko: LO-G 150G je okretni točkić Blickle promjera 150 mm, širine 50 mm, nosivosti 900 kg pri 4 km/h (statički 2250 kg). Ukupna visina je 200 mm. Cijena je 242.35 KM s PDV-om.
Heavy duty welded steel swivel castor, cast iron wheel
242.35 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 49213 |
|---|---|
| EAN | 4047526049218 |
| Promjer točka | 150 mm |
| Širina točka | 50 mm |
| Ukupna visina | 200 mm |
| Nosivost pri 4 km/h | 900 kg |
| Statička nosivost | 2250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 55 mm |
| ESD zaštita | da |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- four specially-shaped, hardened bearing seatsfor additional strength
- bolted and secured welded central kingpin, extremely strong
- swivel head seal with labyrinth design
- grease nipple
Točak
- rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- consider the surface pressure on sensitive floors due to high point loads
- provide adequate lubrication on a regular basis for plain bore version
- to be lubricated according to the application temperature
